CODEPCE-T 260
CODEPCE-T 260
Digital Tachometer - Stroboscope - Laser and Contact - Temperature Measurement Capability
- Optical and contact speed measurement
- IR, Type K and PT 1000 temperature
- Range 0.5 ... 99,990 rpm
- RS-232 interface
- Last value and min/max memory
Availability & price
| Code | Availability | excl. VAT | incl. VAT | Certificate | Cart |
|---|---|---|---|---|---|
| PCE-T 260 |
€468,00
|
€580,32
|
= Express from Europe: at our premises in 1-2 working days, from €35 + VAT Express from Europe, from €35 + VAT
Description
- Optical and contact speed measurement
- IR, Type K and PT 1000 temperature
- Range 0.5 ... 99,990 rpm
- RS-232 interface
- Last value and min/max memory
The PCE-T 260 is a combined tachometer and stroboscope for maintenance and production. It measures rotational speed optically and by contact, and temperature non-contact by infrared or with a Type K or PT 1000 probe. Typical uses are checking the speed and temperature of centrifuges, motors, fans and other machines and systems in industry and research.
The speed range is 0.5 ... 99.990 rpm, with a resolution of 0.5 below 1000 rpm. Coarse and fine settings are made with a push button, and the display turns 180° for speed measurement. The RS-232 interface sends readings to a PC for display or logging.
Highlights
- Optical and contact speed measurement
- Non-contact infrared temperature measurement
- Temperature with Type K or PT 1000 probe
- Powerful red LED strobe light
- 5-digit 10 mm LCD display
- Stores last value plus min/max
- Robust ABS plastic housing
- Low power consumption, almost maintenance-free
Specifications
| Mechanical speed | |
|---|---|
| Measuring range | 0,5 ... 999 rpm |
| Resolution | 0,5 rpm |
| Accuracy | ±(0.05% + 1 digit) |
| Measuring range | 1000 ... 19999 rpm |
| Resolution | 1 rpm |
| Accuracy | ±(0.05% + 1 digit) |
| Optical speed | |
| Measuring range | 5 ... 999 rpm |
| Resolution | 0,5 rpm |
| Accuracy | ±(0.05% + 1 digit) |
| Measuring range | 1000 ... 99999 rpm |
| Resolution | 1 rpm |
| Accuracy | ±(0.05% + 1 digit) |
| Pt temperature | |
| Measuring range | -10 ... +70 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1.2 °C |
| Temperature K-type | |
| Measuring range | -100 ... -50 °C |
| Resolution | 0,1 °C |
| Accuracy | ±(0.4% + 1°C) |
| Measuring range | -50 ... +1300 °C |
| Resolution | 0,1 °C |
| Accuracy | ±(0.4% + 0.5°C) |
| Infrared temperature | |
| Measuring range | -30 ... +305 °C |
| Resolution | 0,5 °C |
| Accuracy | ±3% or ±3°C |
| Stroboscope | |
| Measuring range | 100 ... 999 FPM |
| Resolution | 0,1 FPM |
| Accuracy | ±(0.1% ± 2 digits) |
| Measuring range | 1000 ... 30000 FPM |
| Resolution | 1 FPM |
| Accuracy | ±(0.1% ± 2 digits) |
| Measuring range | 30001 ... 50000 FPM |
| Resolution | 5 FPM |
| Accuracy | ±(0.1% ± 2 digits) |
| Measuring range | 50001 ... 99990 FPM |
| Resolution | 1 FPM |
| Accuracy | ±(0.1% ± 2 digits) |
| General technical data | |
| Display type | LCD |
| Storage medium | Internal memory |
| Memory information | Saves the last value and the minimum and maximum values. |
| Interface | RS232 |
| Operating time additional information | If the battery voltage is too low, a battery icon appears on the display. |
| Measurement spot | 3:1 |
| Light source | Flash lamp: 3 x LED (rot) |
| Emissivity | 0,95 |
| Spectral range | 6 ... 14 µm |
| Measuring distance | 50 ... 300 mm |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | Mains: 9V DC |
| Battery | 4 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 207 x 67 x 39 mm |
| Weight | 322 g |
Package Contents
- 1×Tachometer PCE-T 260
- 1×Measuring adapter
- 2×Measuring tip (internal and external cone)
- 1×Measuring wheel
- 1×Reflective tape (600 mm)
- 1×Carrying case
- 1×Instruction manual
Technical Documents 2
Complementary products
Frequently bought together

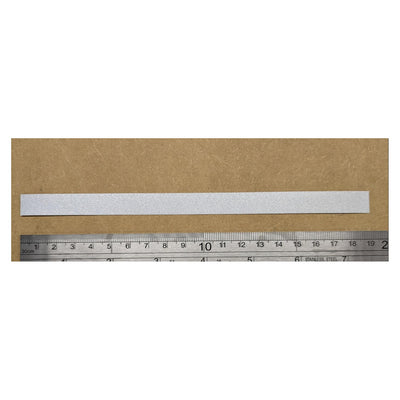

Self-adhesive Reflective Tape for Tachometers 19 cm
