Turbidity Meter
- Up to 2000 NTU
- ISO 7027, 90° optics
- NTU, EBC, ASBC units
- 7-point calibration
- USB interface
Availability & price
| Code | Availability | excl. VAT | incl. VAT | Cart |
|---|---|---|---|---|
| PCE-TUM 50 |
€1.341,00
|
€1.662,84
|
- Up to 2000 NTU
- ISO 7027, 90° optics
- NTU, EBC, ASBC units
- 7-point calibration
- USB interface
The PCE-TUM 50 is a portable turbidity meter that measures to ISO 7027 with a 90° measuring angle. It reads up to 2000 NTU and switches between NTU, EBC (European Brewery Convention) and ASBC (American Society of Brewing Chemists). Typical uses are drinking water, waste water and food and beverage checks; in EBC mode it helps judge beer and wort.
Calibration standards are supplied and calibration runs at 7 preset points or user-defined points. Readings show on the colour graphic display. The meter runs from the 220V AC power adapter for laboratory use. The rear USB port connects it to a computer and clears the memory.
Highlights
- Turbidity to ISO 7027, 90° measuring angle
- Measures up to 2000 NTU
- 3 measuring units: NTU, EBC, ASBC
- Calibration at up to 7 points, or user-specific
- Colour graphic display
- Memory for 200 values
- USB interface to PC
- Mains operation via AC power adapter
| Turbidity | |
|---|---|
| Measuring range | 0 ... 100 NTU |
| Resolution | 0,01 NTU |
| Accuracy | ±(2% of meas. val. + 1.00 NTU) |
| Measuring range | 100 ... 999 NTU |
| Resolution | 0,1 NTU |
| Accuracy | ±(3% of meas. val. + 1.00 NTU) |
| Measuring range | 999 ... 2000 NTU |
| Resolution | 1 NTU |
| Accuracy | ±(3% of meas. val. + 1.00 NTU) |
| General technical data | |
| Display type | LCD with backlight |
| Storage capacity | 200 Values |
| Interface | USB |
| Standard(s) | ISO 7027 |
| Current consumption meter | 300 mA |
| Automatic power-off | 2 h |
| Light source | LED, infrared at 850 nm |
| Measuring angle | 90 ° |
| Calibration | Multiple points: <0.02 NTU 10 NTU 200 NTU 500 NTU 1000 NTU 1500 NTU 2000 NTU Or user-specific |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | 12 V |
| Connector type | Device-europlug |
| Operating conditions | 0 ... 60 °C , 0 ... 85 % RH |
| Storage conditions | 0 ... 60 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 250 x 177 x 96 mm |
| Weight | 1200 g |
- 1×Turbidity Meter PCE-TUM 50

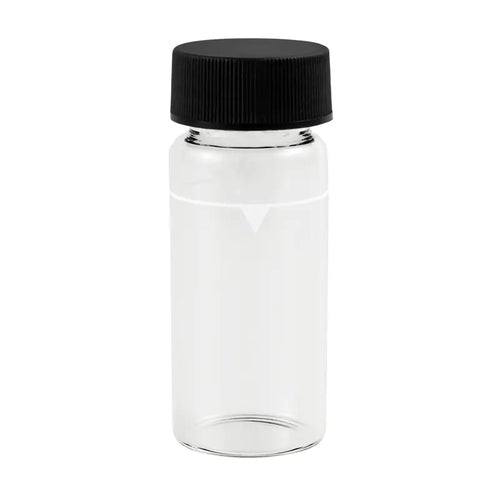

- 1×Cuvette with lid

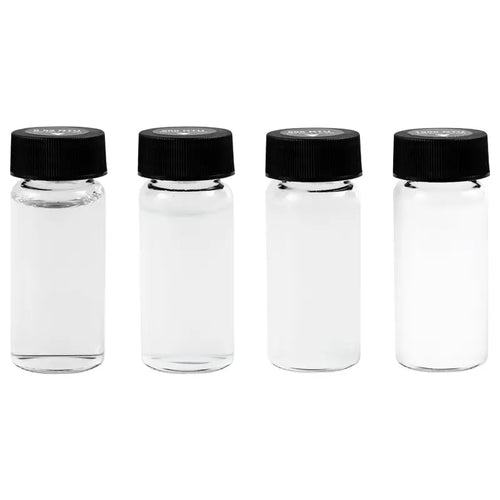

- 4×Calibration cuvettes turbidity
- 1×AC Power adapter
- 1×Cleaning cloth
- 1×User manual
