PCE-VA 20-SET - Anemometer-Thermometer-Hygrometer PCE-VA 20 & 2 Supply Cones
| Κωδικός | Εύρος | Τιμή | Στοκ | ||
|---|---|---|---|---|---|
| PCE-VA 20-SET | 0.2-30 m/s | €525,00 | Με παραγγελία | ||
| Technical specifications | ||
| Airflow velocity measurement range |
|
|
| Airflow speed accuracy |
<20 m/s: ±(1.5% of rdg. + 0.3 m/s) >20 m/s: ±(3% of rdg. + 0.3 m/s) |
|
| Air temperature measurement range | -20 ... 60 °C / -4 ... 140 °F | |
| Air temperature accuracy | ±0.6 °C | |
| Air temperature analysis | 0.1 °C / °F | |
| Humidity measurement range | 0.1 ... 99.9 % rH | |
| Humidity accuracy |
±3 % rH (at 25 °C / 77 °F and 10...90 % rH) other: ±5 % rH |
|
| Moisture analysis | 0.1% RH | |
| Temperature response time | 60 seconds | |
| Moisture response time | 60 seconds | |
| LCD update | 1 x per second | |
| Liquid bulb temperature indicator | -20 ... +59.9 °C / -4 ... 139.8 °F | |
| Dew point temperature display | -5 ... +59.9 °C / 23 ... 139.8 °F | |
| Intensity flow indicator | 0 ... 99999 m³/min | |
| Volume flow analysis |
0.1 m³/min (0...9999.9 m³/min) 1 m³/min (10000...99999 m³/min) |
|
| Automatic shutdown | after 20 minutes of inactivity | |
| LCD size | 32.5 x 54mm / 1.28 x 2.13" (H x W) | |
| Power supply | 4 x 1.5V AAA batteries | |
| Operating conditions | 0 ... +50 °C / 32 ... 89.6 °F, <80 % rH | |
| Storage conditions | -10 ... +50 °C / 14 ... 89.6 °F, <90 % rH | |
| Dimensions | 269 x 106 x 51 mm / 10.6 x 4.1 x 2.0" | |
| Weight | approx. 200 g / 7 oz |
Anemometer with volumetric flow cover PCE-VA 20-SET
Measurement of wind speed, volumetric flow, temperature, humidity, dew point and wet bulb temperature / Backlight / Impeller diameter 10 cm
Measurement of extreme values / HOLD function / automatic shutdown

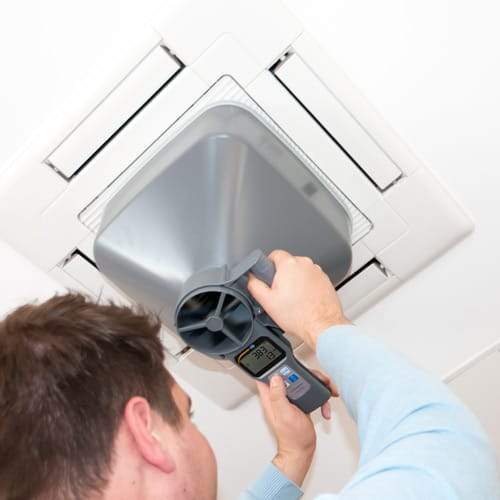

The PCE-VA 20 anemometer in a volumetric flow hood set is used to measure flow velocity and volumetric flow rate in the maintenance area of ventilation and air conditioning systems. In addition, the volumetric flow hood anemometer can measure environmental parameters such as temperature and humidity.
From this, the meter calculates dew point (DP) and wet bulb temperature (WBT). All measured and calculated parameters are displayed on the volumetric flow hood anemometer on the two-line LC display. At the top of the screen, the flow rate, humidity and average value are displayed. Depending on the measurement mode, the temperature, volumetric flow, wet bulb temperature and dew point are displayed at the bottom of the display. For a better and faster evaluation of the measured values, maximum, minimum and average readings are also available for the user of the anemometer with the volumetric flow hood.

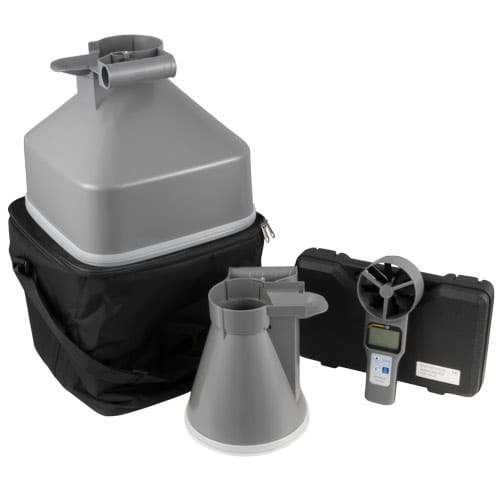

The anemometer is powered by four 1.5V AAA batteries. Thus, the volume flow hood anemometer can be used as a portable device. In addition to the anemometer, this measuring set also comes with 2 volumetric flow hoods, which can be mounted directly on the display unit. Volumetric flow hoods are suitable for air mass measurements at round and square duct outlets or inlets.
- Measures airflow velocity, volume flow, relative humidity, air temperature, dew point temperature and wet bulb temperature
- Airflow speed range: 0.2 ... 30 m/s (39.4 ... 5905.5 fpm)
- Accuracy: ±(1.5% of the measured value + 0.3 m/s) when less than 20 m/s, ±(3% of the measured value + 0.3 m/s) when more than 20 m /s
- Resolution: 0.1

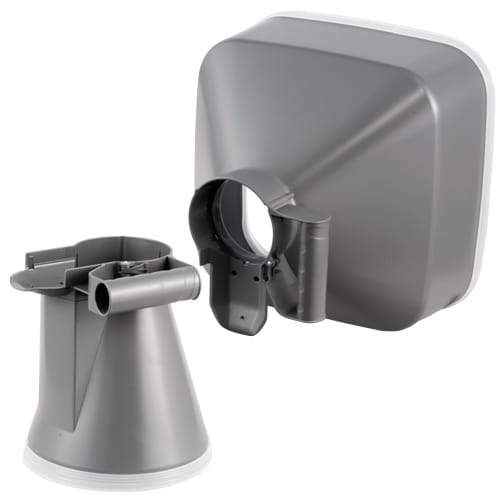

- Includes 2 x hoods (1 x round 210 mm / 8.3 in Ø, 1 x square 346 x 346 mm / 13.6 x 13.6 in)
- 10 cm / 3.9 in fan impeller
- Easy to read with LCD backlight
- Screen saver, average value, maximum value, minimum value, battery saver auto-off, low battery indicator and metric or British units of measurement functions
