Pull Stud Kemmler ISO 7388-3 Form AD χωρίς O-Ring (PS-AD), πείρος έλξης με σπείρωμα M12/M16/M24

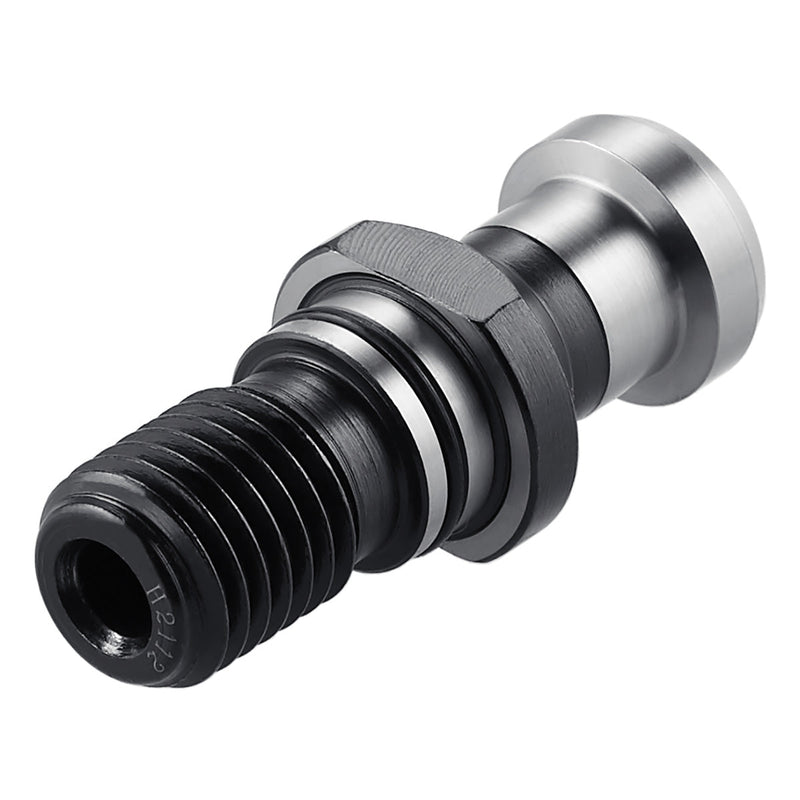

Pull Stud Form AD ISO 7388-3 με O-Ring - Kemmler
Τεχνικό σχέδιο PS-AD - Pull Stud ISO 7388-3 Form AD με διαστάσεις CRKS, OAL, LF, LB1, BD1, BD2, BD4, CND, DRVS

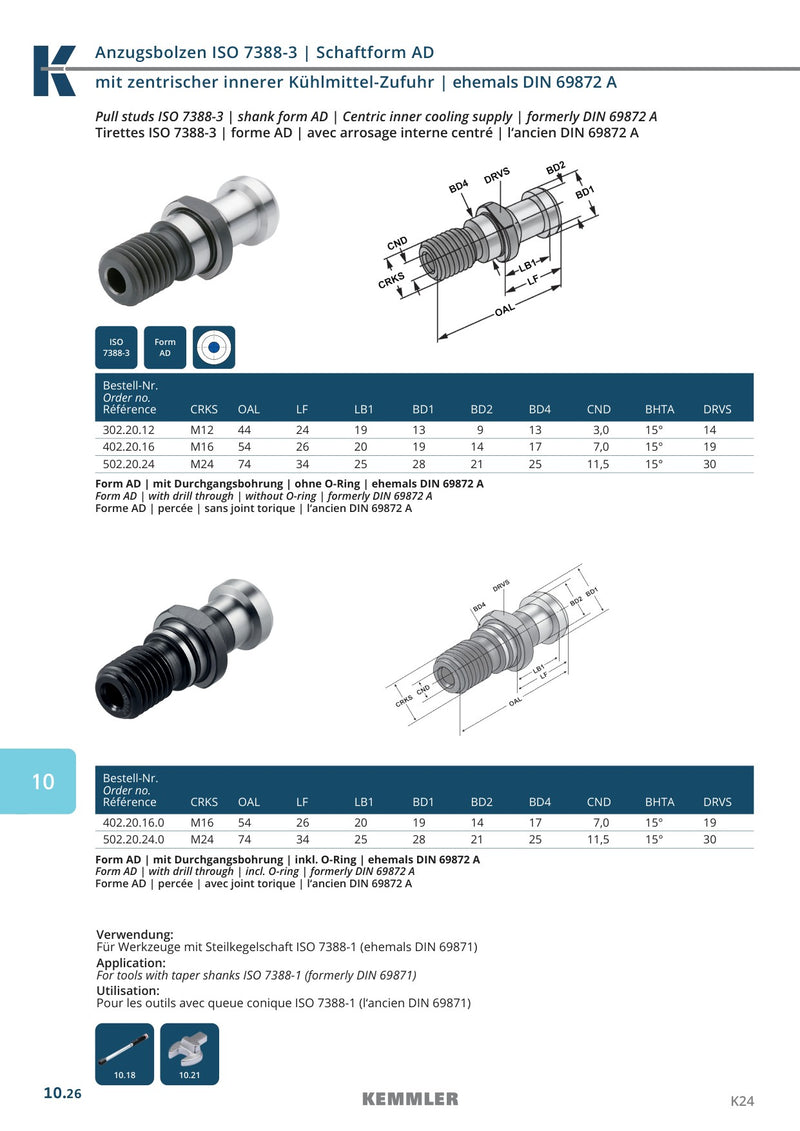

Τεχνικό φυλλάδιο Kemmler PS-AD - Pull Stud ISO 7388-3 Form AD (πρώην DIN 69872 A): σχέδιο και πλήρεις διαστάσεις για τις εκτελέσεις με και χωρίς O-Ring, κωδικοί 302.20.12, 402.20.16, 502.20.24, 402.20.16.0, 502.20.24.0
Pull Stud Kemmler ISO 7388-3 Form AD χωρίς O-Ring (PS-AD), πείρος έλξης με σπείρωμα M12/M16/M24
Pull Stud Form AD ISO 7388-3 με O-Ring - Kemmler
Τεχνικό σχέδιο PS-AD - Pull Stud ISO 7388-3 Form AD με διαστάσεις CRKS, OAL, LF, LB1, BD1, BD2, BD4, CND, DRVS
Τεχνικό φυλλάδιο Kemmler PS-AD - Pull Stud ISO 7388-3 Form AD (πρώην DIN 69872 A): σχέδιο και πλήρεις διαστάσεις για τις εκτελέσεις με και χωρίς O-Ring, κωδικοί 302.20.12, 402.20.16, 502.20.24, 402.20.16.0, 502.20.24.0

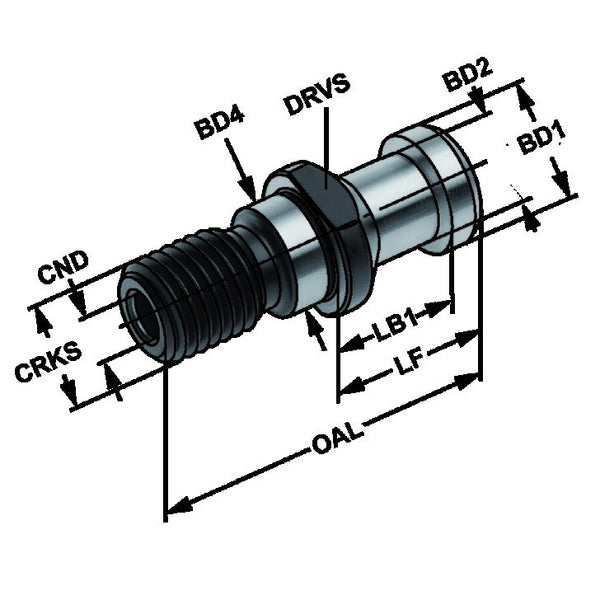

Τεχνικό σχέδιο διαστάσεων PS-AD - Kemmler pull stud: CRKS, OAL, LF, LB1, BD1, BD2, BD4, CND, BHTA, DRVS

Availability & price

5 codes

Code CRKSLF (mm)BD1 (mm) BHTA O-Ring Availability excl. VATincl. VAT Cart
O-Ring without O-Ring
KE-302.20.12 M12 24 13 15° without O-Ring
€7,00
€8,68
0
KE-402.20.16 M16 26 19 15° without O-Ring
€7,00
€8,68
0
KE-502.20.24 M24 34 28 15° without O-Ring
€8,00
€9,92
0
O-Ring with O-Ring
KE-402.20.16.0 M16 26 19 15° with O-Ring
€8,00
€9,92
0
KE-502.20.24.0 M24 34 28 15° with O-Ring
€10,00
€12,40
0

Specifications

  • Standard: ISO 7388-3 (formerly DIN 69872 A)
  • Form: AD, with through-coolant hole
  • Thread (CRKS): M12, M16, M24
  • Head angle (BHTA): 15°
  • Execution: with or without O-Ring
  • Application: toolholders with ISO 7388-1 taper (formerly DIN 69871)

Description

The Form AD pull stud (retention knob) threads into the rear of the toolholder and lets the spindle drawbar pull and hold the taper. The AD form has a central through hole for internal coolant supply.

Available in two executions: without O-Ring and with O-Ring. The O-Ring seals the joint, limits coolant leakage and keeps debris out of the clamping area, and is recommended wherever pressurised internal coolant is used.

Choose the thread (CRKS) that matches your toolholder: M12 for SK30, M16 for SK40 and M24 for SK50. Full dimensions for each order code are shown in the variants table and the technical drawing.
