Does not include keys
5 years warranty
Portability: Lightweight and small. Available with Pelican™ carrying case.
Excellent accuracy: ± 0.1% of full scale - important for timely overload detection.
Durability: IP67 Waterproof and dust resistant
Long transmission range: Up to 150 m/yds. Up to 3.2 km / 2 miles on request (outdoor, line of sight)
Excellent battery life: Up to 2000 hours (2x AA batteries). Optional 4000h.
Materials: Exclusive use of high-quality aerospace steel for load cell bodies.
Meets Standards: All Eilon Engineering load cells have fatigue rating according to ASME BTH-1-2017, ASME B30.26 and IEC 61508.
Design: Heavy-duty with shock absorption mechanisms. Rings with 90-degree movement range reduce external torques for greater safety and accuracy.
Size: Small-sized head, suitable for indoor applications.
Multi-point: Up to 200 different load cells controlled by a single receiver and all measurements displayed on one screen in real time.
Options: Automatic/Manual data logger, RS232, Additional displays.

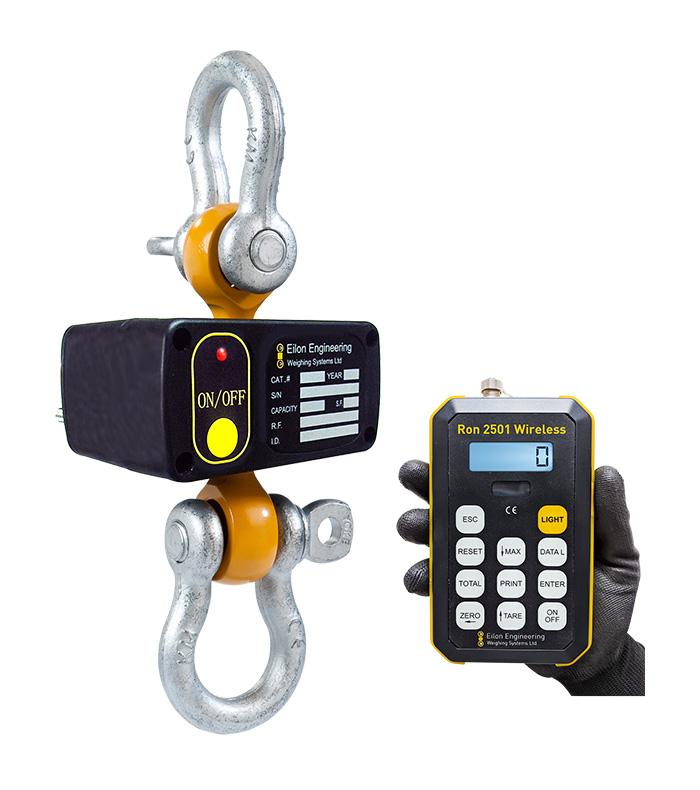

The Ron 2501 is an extremely small, lightweight and advanced wireless dynamometer with long range and built-in transmission verification mechanism.
The special vertical design neutralizes load cell bending, increasing accuracy and safety.
Featuring fatigue-calibrated load cells with high accuracy (0.1% of full scale), the small size of this wireless dynamometer ensures minimal head space loss and portability.
The Ron 2501 wireless dynamometer offers excellent battery life: up to 2000 hours or 4000 hours (with additional option) on disposable AA batteries.
Ron 2501 wireless load cells can be purchased as part of a multi-point system capable of collecting measurements from 200 load cells.
Ron Crane scales and dynamometers are made from high-quality steel found in aerospace, making the Ron 2501 suitable for harsh environment applications.
The Ron 2501 provides the option to add a display as well as logging and receiving measurements.
IPXY
-
X = Protection against solid objects & access to hazardous parts
-
Y = Protection against water ingress
| Value | 1st Digit – Solids / Access | 2nd Digit – Water |
|---|---|---|
| 0 | No protection | No protection |
| 1 | Protection against solids ≥50 mm (test probe Ø50 mm) | Vertical falling drops |
| 2 | Protection against solids ≥12.5 mm (test probe Ø12.5 mm) | Drops with tilt up to 15° |
| 3 | Protection against solids ≥2.5 mm (test probe Ø2.5 mm) | Spraying up to 60° |
| 4 | Protection against solids ≥1 mm (test probe Ø1 mm) | Splashing from all directions |
| 5 | Protection against dust (limited ingress without harmful effects) | Water jets (nozzle 6.3 mm) |
| 6 | Complete dust-tightness (dust-tight) | Powerful water jets (nozzle 12.5 mm) |
| 7 | — | Temporary immersion (usually 1 m / 30 min) |
| 8 | — | Continuous immersion (depth & time specified by manufacturer) |
| 9 / 9K | — | High-pressure & high-temperature water jets |
| SKU | Max Weight | Reading | Extra Case | Availability |
Price
+VAT
|
Certificate |
Cart
Quote
|
|---|---|---|---|---|---|---|---|
| Ron2501S005 | 500 kg | 200 g | PEL-CC4 | On Order |
+VAT
€3.422,00
|
5-8 business days
|
|
| Ron2501S01 | 1000 kg | 500 g | PEL-CC4 | On Order |
+VAT
€3.432,00
|
5-8 business days
|
|
| Ron2501S02 | 2 t | 1 kg | PEL-CC4 | On Order |
+VAT
€3.506,00
|
5-8 business days
|
|
| Ron2501S03 | 3 t | 1 kg | PEL-CC4 | On Order |
+VAT
€3.519,00
|
5-8 business days
|
|
| Ron2501S05 | 5 t | 2 kg | PEL-CC4 | On Order |
+VAT
€3.557,00
|
5-8 business days
|
|
| Ron2501S10 | 10 t | 5 kg | PEL-CC6 | On Order |
+VAT
€3.700,00
|
5-8 business days
|
|
| Ron2501S12 | 12.5 t | 5 kg | PEL-CC6 | On Order |
+VAT
€3.955,00
|
5-8 business days
|
|
| Ron2501S15 | 15 t | 5 kg | PEL-CC6 | On Order |
+VAT
€4.010,00
|
5-8 business days
|
|
| Ron2501S20 | 20 t | 10 kg | PEL-CC6 | 1 available |
+VAT
€4.072,00
|
5-8 business days
|
|
| Ron2501S25 | 25 t | 10 kg | PEL-CC6 | On Order |
+VAT
€4.248,00
|
5-8 business days
|
|
| Ron2501S30 | 30 t | 10 kg | PEL-CC6 | 1 available |
+VAT
€4.287,00
|
5-8 business days
|
|
| Ron2501S40 | 40 t | 20 kg | PEL-CC8 | On Order |
+VAT
€4.526,00
|
5-8 business days
|
|
| Ron2501S55 | 55 t | 20 kg | PEL-CC8 | On Order |
+VAT
€4.791,00
|
5-8 business days
|
|
| Ron2501S85 | 85 t | 50 kg | Included | On Order |
+VAT
€6.157,00
|
5-8 business days
|
|
| Ron2501S100 | 100 t | 50 kg | Included | On Order |
+VAT
€9.218,00
|
5-8 business days
|
|
| Ron2501S125 | 125 t | 50 kg | Included | On Order |
+VAT
€9.510,00
|
5-8 business days
|
|
| Ron2501S200 | 200 t | 100 kg | Included | On Order |
+VAT
€16.482,00
|
5-8 business days
|
|
| Ron2501S250 | 250 t | 100 kg | Included | On Order |
+VAT
€17.812,00
|
5-8 business days
|
|
| Ron2501S300 | 300 t | 100 kg | Included | On Order |
+VAT
€22.821,00
|
5-8 business days
|
