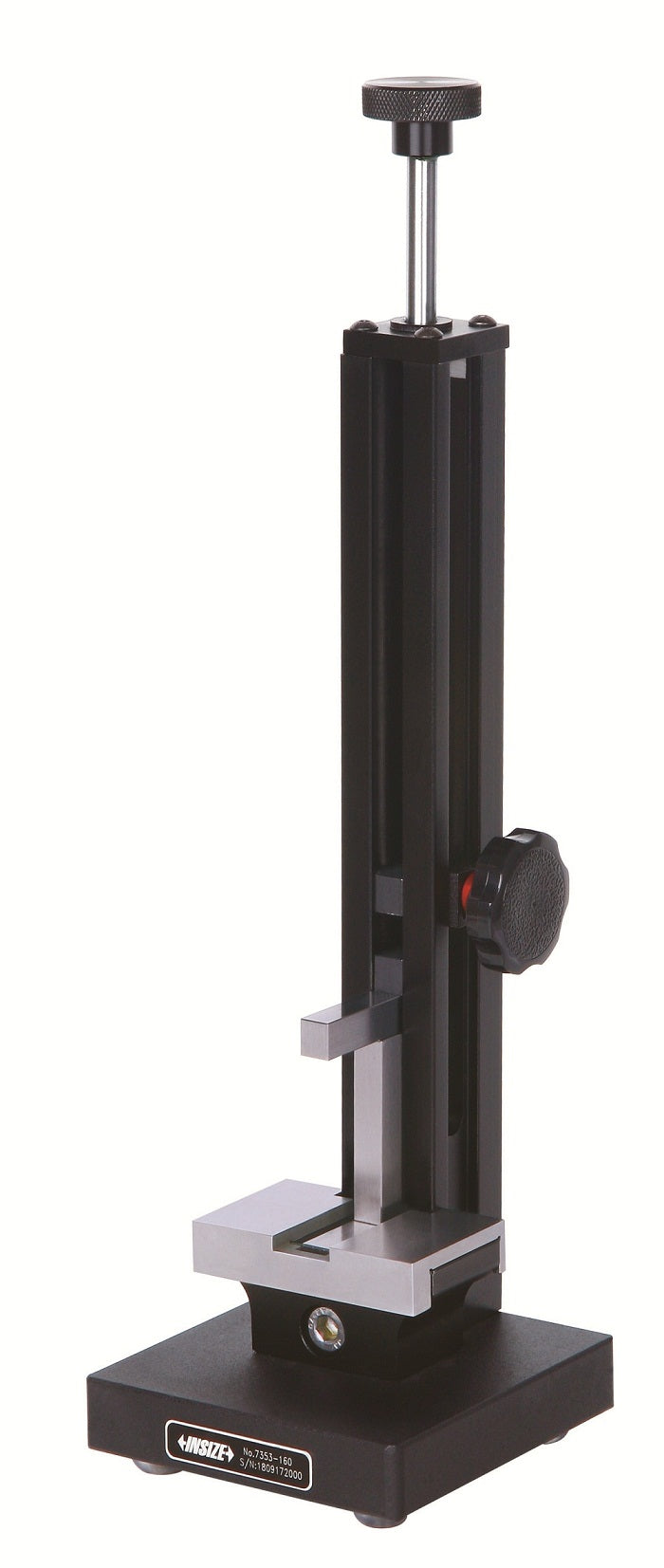

Calibration Base for Cylinder Gauge

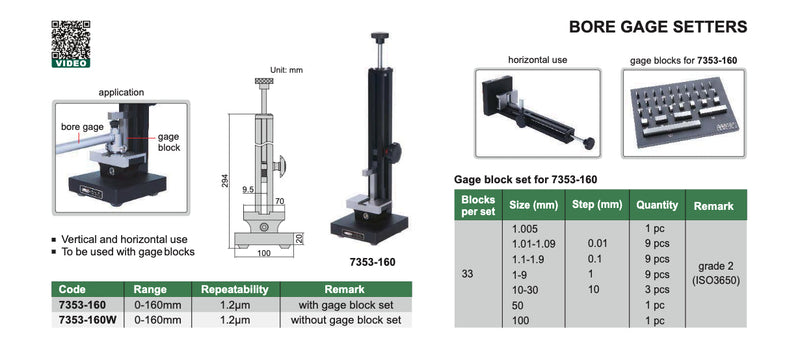

Specifications

• Type: Bore gage setter / calibration stand
• Use: Vertical and horizontal
• Setting range: 0–160 mm
• Repeatability: 1.2 μm
• Dimension unit: mm
• Used with: gage blocks
• Gage block set for 7353-160: 33 pcs, grade 2 (ISO3650)
• Gage block set contents (size/step/quantity): 1.005 (1 pc), 1.01–1.09 step 0.01 (9 pcs), 1.1–1.9 step 0.1 (9 pcs), 1–9 step 1 (9 pcs), 10–30 step 10 (3 pcs), 50 (1 pc), 100 (1 pc)

Description

This bore gage setter is used to set/zero and verify bore gages using gage blocks. It supports both vertical and horizontal setups to provide stable, repeatable setting over a 0–160 mm range, suitable for inspection of bore diameters in workshop or quality-control environments.
