Coating Thickness Gauges

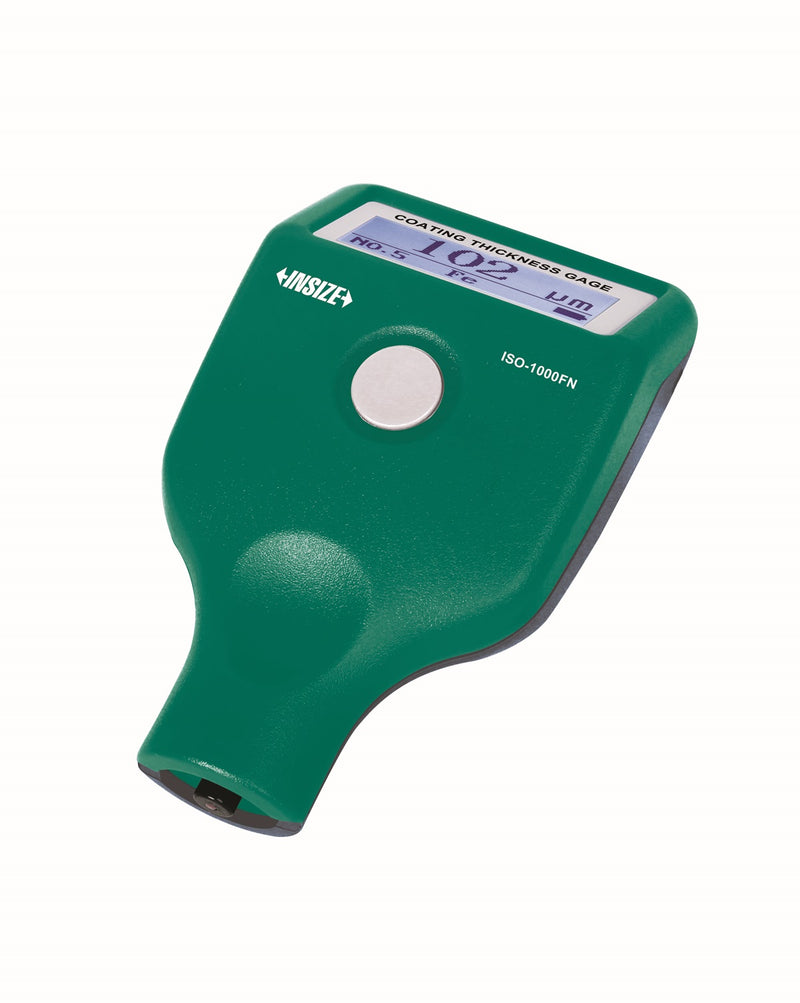

Insize ISO-1000FN coating thickness gauge, green, with digital display and round μm measuring button

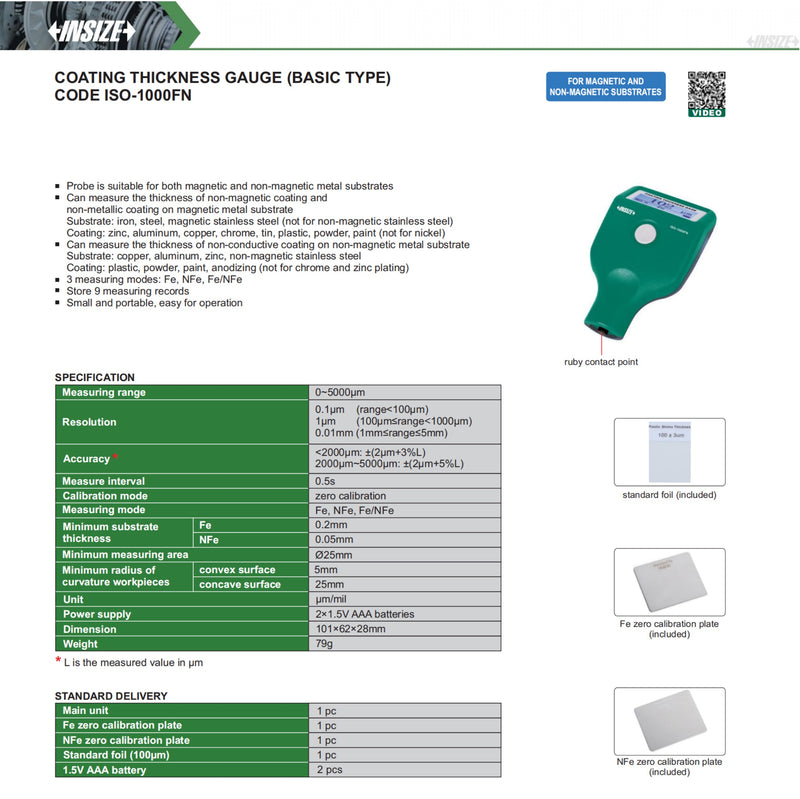

Technical specifications ISO-1000FN - Coating/Paint Thickness Gauge Ferrous and Non-Ferrous 0-5000 μm
Insize ISO-1000FN coating thickness gauge, green, with digital display and round μm measuring button
Technical specifications ISO-1000FN - Coating/Paint Thickness Gauge Ferrous and Non-Ferrous 0-5000 μm

Availability & price

Code Range Reading Accuracy Availability excl. VATincl. VAT Certificate Cart
ISO-1000FN 0-5000 μm 0.001 ±(2μm+3%L)
€338,00
€419,12
0
  • Range: 0~5000 μm
  • Accuracy: ±(2μm + 3%L), where L is the measured thickness in μm
  • Suitable for both magnetic and non-magnetic metal substrates
  • 3 measurement modes: Fe, NFe, Fe/NFe
  • Memory: 9 measurement records
  • Small and portable, easy to operate
  • Can measure the thickness of non-magnetic and non-metallic coating on magnetic metal substrate
    • Substrate: iron, steel, magnetic stainless steel (unsuitable for non-magnetic stainless steel)
    • Coating: zinc (galvanized), aluminum, copper, chrome, tin, plastic, powder, paint (not for nickel)
  • Can measure the thickness of non-conductive coating on non-magnetic metal substrate
    • Substrate: copper, aluminum, zinc, non-magnetic stainless steel
    • Coating: plastic, powder, paint, anodizing (not for chrome plating and zinc plating)
  • Units: μm / mil
  • Measuring surface diameter: 25 Mm
  • Measurement interval: 0.5 s
  • Power supply: 2 x 1.5V AA batteries
  • Dimensions: 101 x 62 x 28 mm
  • Weight: 79 g
Datasheet Technical datasheet CE Certificate Quality document Catalog Full manufacturer catalog

Complementary products

Frequently bought together

Insize

Official distributor

Insize

INSIZE was founded in 1995 and is one of the world's leading manufacturers of measuring instruments and metrological equipment. With factories in China and other Asian countries, as well as production units in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability and reliability, while being distinguished by their excellent quality-price ratio.

This product belongs to the collection

Coating Thickness Gauges

You're viewing one product from this category. Browse the full range.

18 products
View all

Related categories

All categories →
Hardness Testers Ultrasonic Thickness Measurement Eddy Current Testing1 products Metal Conductivity Meters1 products Roughness Testers16 products
Coating Thickness Gauges

From our Wiki

Coating Thickness Gauges

The coating thickness gauges (coating thickness gauges) are non-destructive testing instruments that measure the thickness of layers such as paint, varnish, or galvanizing on metal surfaces. Their operation is based on the principles of magnetic induction (for ferrous substrates) and eddy currents (eddy currents) for non-ferrous metals such as aluminum.

  • Applications: Essential in the automotive industry for repaint inspection, in shipyards, anodizing, and corrosion protection industries.
  • Features: They have an integrated or external sensor (probe), automatic substrate recognition (F/NF) and high accuracy at the micrometer ($\mu m$) level.
  • Advantages: They allow verification of quality specifications without causing any damage to the product’s final surface.
Read the guide
