CODEPCE-CT 25FN
CODEPCE-CT 25FN
Coating - Paint Thickness Gauge Fe/NFe 1500μm for Car Paint
Best Seller
- One-hand operation
- MIN, MAX and mean display
- Battery indicator
- Selectable units
- Automatic shutdown
Same-day dispatchfor orders placed by 15:00
Free shippingon orders over €80 (incl. VAT)
ISO 17025 calibrationupon request
Availability & price
| Code | Availability | excl. VAT | incl. VAT | Certificate | Cart |
|---|---|---|---|---|---|
| PCE-CT 25FN |
€174,00
|
€215,76
|
- One-hand operation
- MIN, MAX and mean display
- Battery indicator
- Selectable units
- Automatic shutdown
- For ferrous and non-ferrous metals

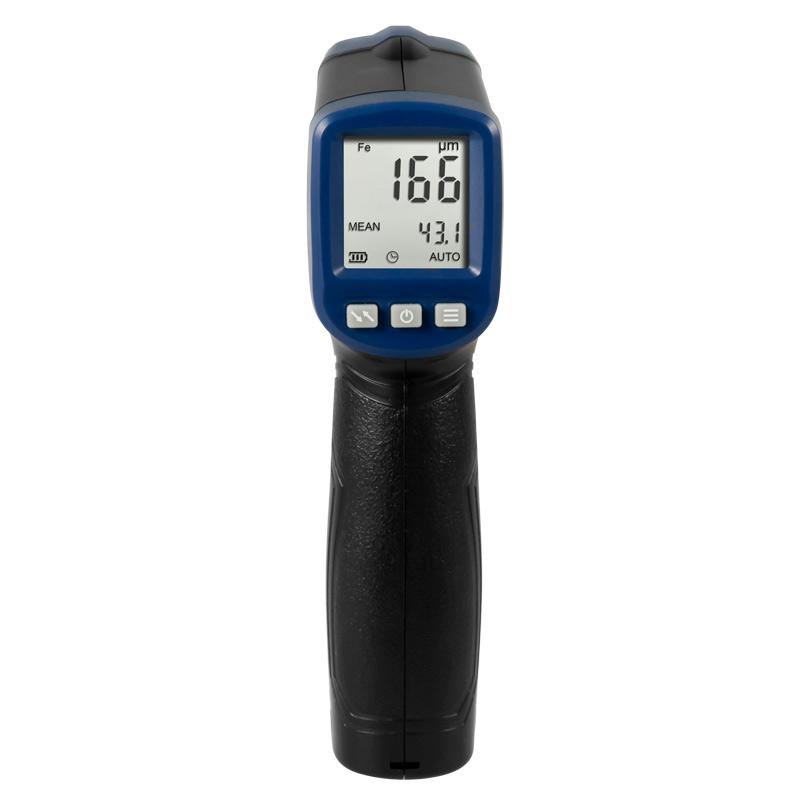

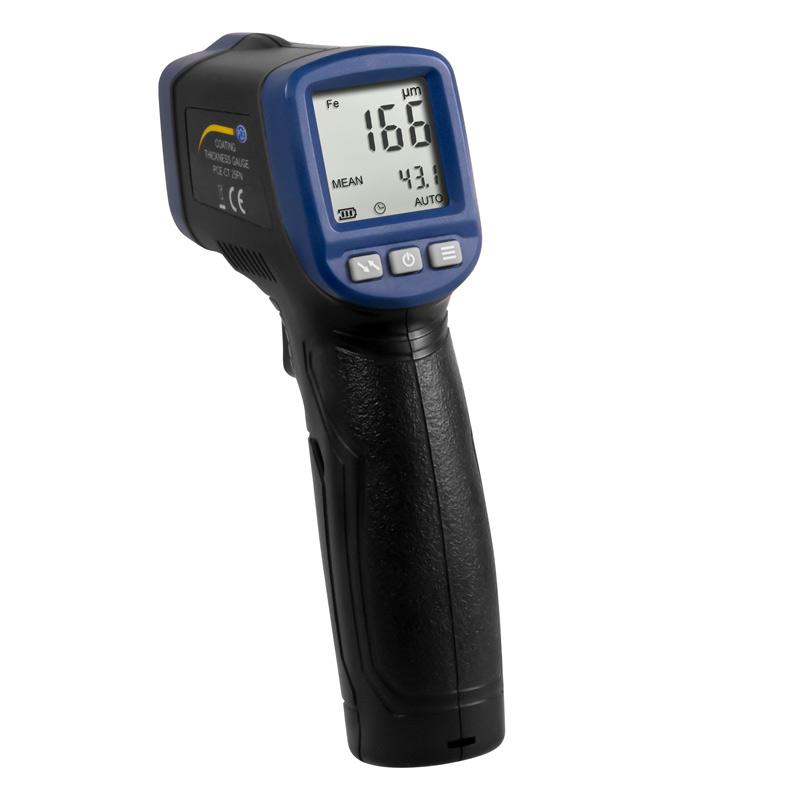

The PCE-CT 25FN is a paint thickness gauge for fast, precise measurement of coating thickness on metals. Unlike many other gauges, it does not require you to choose between ferrous (Fe) and non-ferrous (NFe) substrates. Its measuring range is 1500 µm, with an accuracy of ± (3% + 1 µm).
The small, compact housing allows one-hand operation. Readings are shown in µm, mm or mils. From a series of measurements, the gauge shows the minimum, maximum and mean value. It is also suitable for continuous measurements. It has a battery indicator and switches off automatically.
Highlights
- Small, compact design for one-hand use
- Measures on ferrous and non-ferrous metals
- Fast measuring rate
- Calibration set included
- Selectable units: µm, mm, mils
- MIN, MAX and mean value display
- Suitable for continuous measurements
- Battery indicator and automatic shutdown
| Layer thickness | |
|---|---|
| Measuring range | 0 ... 100 µm |
| Resolution | 0,1 µm |
| Accuracy | ±(3% +1 µm) |
| Measuring range | 100 ... 1500 µm |
| Resolution | 1 µm |
| Accuracy | ±(3% +1 µm) |
| Sensor | |
| Measuring principle | Magnetic mode (Fe), Eddy current mode (NFe) |
| Measurable materials | Fe substrates such as: steel and iron NFe substrates such as: aluminium and copper |
| Min. measuring surface | Ø 20 mm |
| Min. thickness of the substrate | Fe: 0.3 mm NFe: 0.05 mm |
| Min. radius of curvature convex | 5 mm |
| Min. radius of curvature concave | 25 mm |
| General technical data | |
| Measuring functions | MIN, MAX, Average value |
| Units | µm, mm, mils |
| Display type | LCD with backlight |
| Display size | 1,4 Inch |
| Measuring rate | 2 Hz |
| Automatic power-off | 3 min |
| Number of calibration points | 0 |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Battery | 1 x 9 V 9V block , Alkali-manganese |
| Capacity | 550 mAh |
| Operating conditions | -10 ... 50 °C , 20 ... 90 % RH |
| Storage conditions | -10 ... 60 °C , 20 ... 90 % RH |
| Dimensions ( L x W x H ) | 143 x 85 x 39 mm |
| Weight | 100 g |

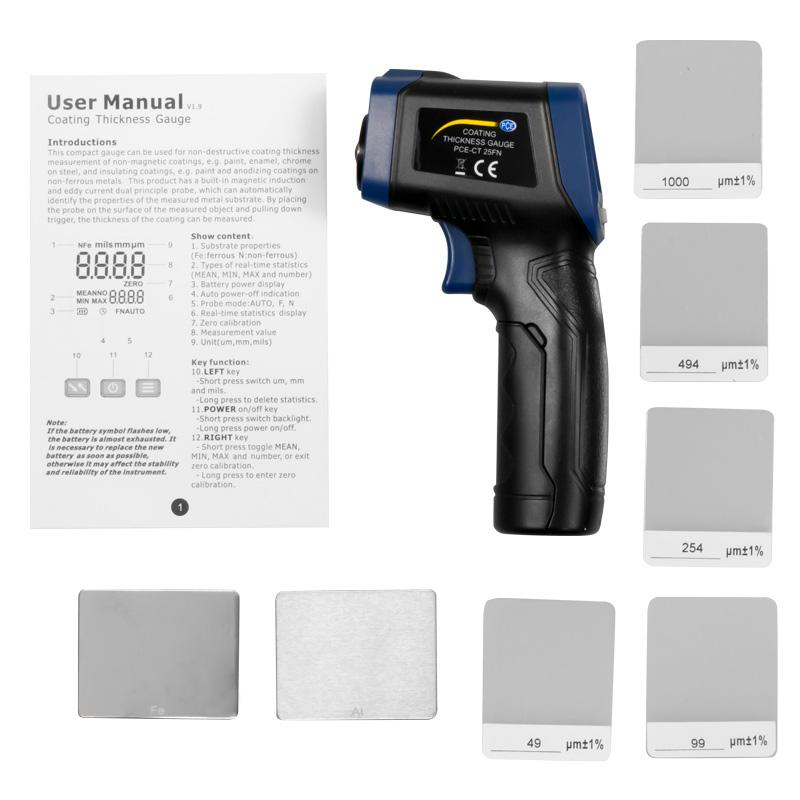

- 1×Paint Gauge / Paint Tester PCE-CT 25FN
- 5×calibration foil reference
- 1×Fe zero standard
- 1×NFe zero standard
- 1×9 V block battery
- 1×instruction manual
