| Sensor |
Type F and Type N |
|
Type F |
|
| Measuring range | 0 ... 5000 μm / 0 ... 5 mm / 0 ... 196 mm |
| Measurement accuracy | ± (2% + 1 μm) |
| Reading |
0 ... 99.9 μm: 0.1 μm, 100 ... 999 μm: 1 μm > 1000 μm: 0.01 mm |
| Measurement start | Magnetic induction |
| The smallest thickness of the base material | 0.02 mm |
| Type N | 0 ... 3000 μm / 0 ... 3 mm / 0 ... 118 mm |
| Measurement accuracy | ± (2% + 1 μm) |
| Reading |
0 ... 99.9 μm: 0.1 μm, 100 ... 999 μm: 1 μm > 1000 μm: 0.01 mm |
| Measurement start | Vortex |
| Minimum thickness of the base material | 0.05 mm |
| Calibration | Calibration from one point to four points, zero calibration |
| Data storage | Direct measurement (without saving measurement data), four data groups (automatic saving of measurement data up to 2000 measured values) |

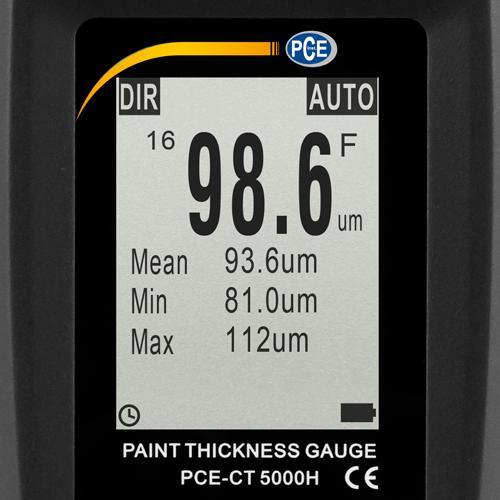

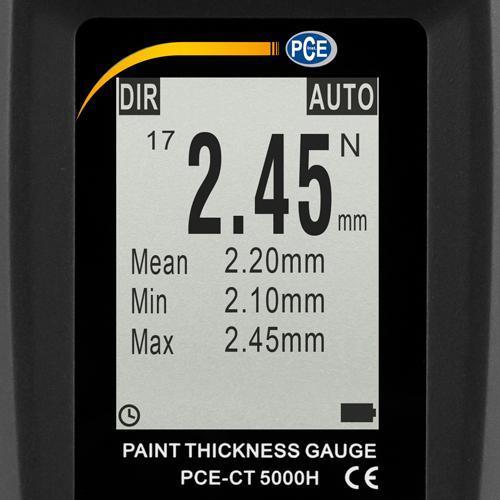

| Statistical functions | Number of measurements, average, minimum, maximum, standard deviation |
| Measuring units | μm, mm, mils |
| Alarm | Adjustable alarm limits, the alarm symbol appears when limits are exceeded |
| Minimum radius of curvature (convex) | 5 mm / 0,2 in |
| Minimum radius of curvature (concave) | 25 mm / 1 in |
| Minimum measuring surface | Diameter 20 mm / 0,8 in |
| Maximum measuring rate | 2 x per second |
| Exit | Data transfer via USB |
| Power supply | 2 x 1.5V AAA batteries |
| Menu languages | German, English, Russian, Chinese |
| Operating conditions | 0 ... 50°C / 32 ... 122°F, 20 ... 90% RH |
| Storage conditions | -10 ... 60°C / 14 ... 140°F |
| Standards | CE ROHS FCC |
| Dimensions | 110 x 53 x 24 mm / 4.33 x 2.09 x 0.95 in |
| Housing material | ABS plastic |
| Weight | 92 g / < 1 lb |

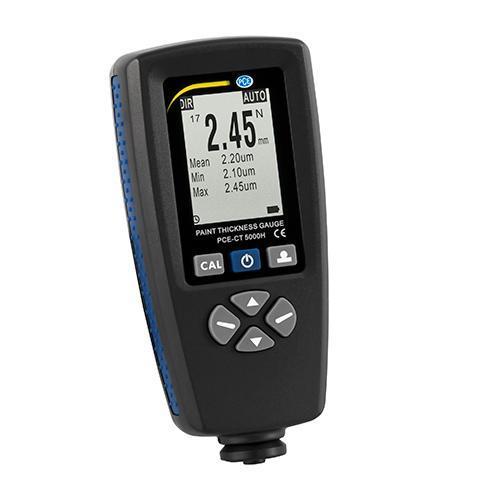

PCE-CT 5000H Caliper coating /
Non-destructive coating thickness and dry film thickness (DFT) measuring device for use on ferrous (Type F) and non-ferrous (Type N) metal substrates
The PCE-CT 5000H is a coating thickness measuring instrument used for the rapid determination of coating on ferrous (Type F) and non-ferrous (Type N) metals. The Caliper automatically detects the type of metal to be measured and uses magnetic induction (ferrous) or eddy current (non-ferrous) to take non-destructive measurements of the coating and dry film thickness (DFT) on metal substrates such as steel and aluminum.

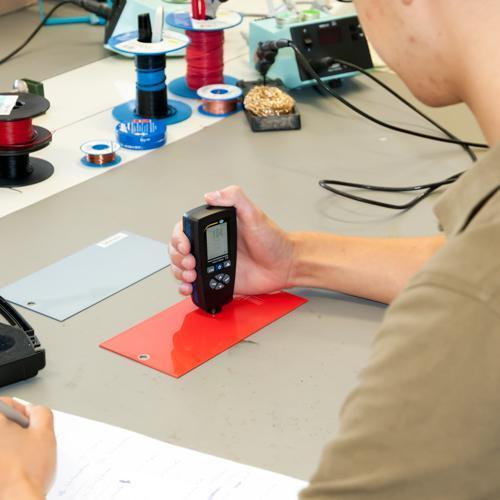

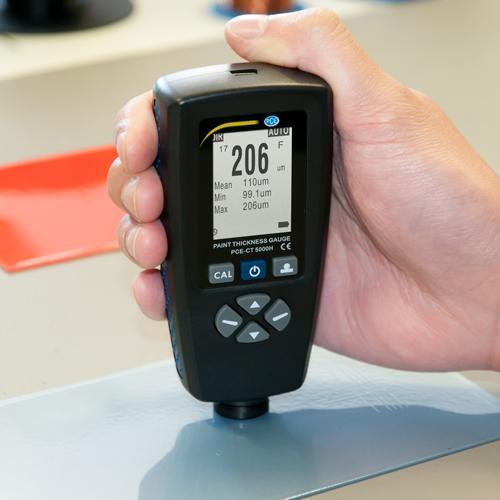

This thickness meter is ideal for testing painted surfaces and powder-coated surfaces, car paint inspection, coated material testing, and quality control applications during manufacturing. Alarm limits can be set on the meter to notify the user when a coating is too thick or too thin. If a thickness measurement is outside the specified limits, a message appears on the screen notifying the user.
- Designed for non-destructive testing and inspections
- Measures coating thickness on Fe and nFe metals
- Displays measurement units in μm, mm, or mils
- Internal measurement of 2000 readings

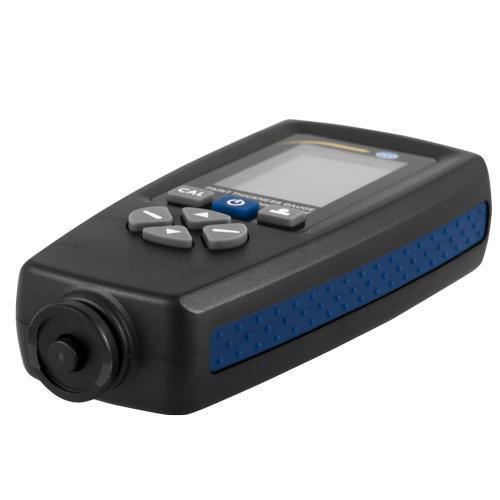

- Practical V-groove on the measuring head
- Four-point and zero calibration
- Comfortable one-handed operation
- Adjustable alarm limits
- Wide measurement range
- High measurement accuracy
- Automatic shutdown

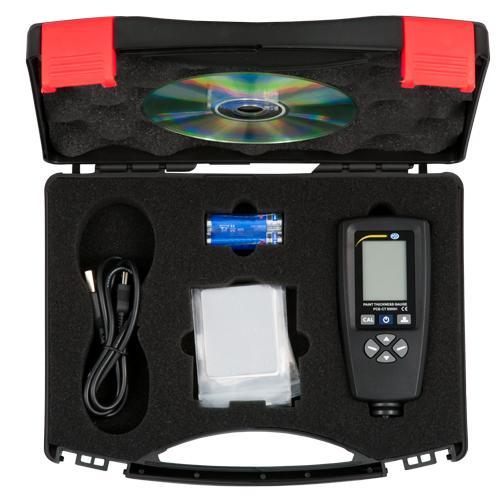

1 x PCE-CT 5000H Coating Caliper

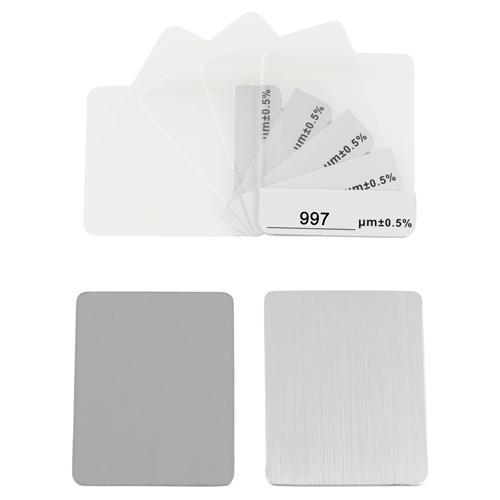

2 x Zero calibration plates (ferrous and non-ferrous)
5 x Calibration plates
2 x 1.5V AAA batteries
1 x USB cable
1 x Computer compatible software
1 x User manual
1 x Carrying case
1 Year Warranty
PCE Instruments Factory
The PCE Deutschland GmbH, known as PCE Instruments, is a German company based in Meschede, which from 1999 to the present has established itself internationally as a reliable manufacturer and supplier of measuring, testing, and weighing instruments. The company offers an exceptionally wide range of instruments – from vibration, humidity, noise, and temperature meters to precision scales, analyzers, sensors, and data loggers – covering every need in industry, laboratories, and research.
PCE Instruments products are used in a wide range of sectors such as industrial production, quality control, equipment maintenance and assurance, environmental measurement, energy inspection, as well as education and scientific research. With a combination of know-how, reliability, and flexibility, the company provides complete solutions that ensure accurate results and contribute to improving measurement and testing processes in every professional sector.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of PCE Instruments in Greece since 2015. We have a large variety of Pce products in stock, which is continuously increasing. In addition, we can support the entire range of its catalog, which includes more than 5,000 different product codes.
In our store we provide technical support for all PCE Instrumentrs products via trained technicians, while ensuring high availability of spare parts, ensuring prompt service and reliability for our customers.
All of its products meet European specifications, following various international quality and safety standards.
| SKU | Range | Reading | Accuracy | Availability |
Price
+VAT
|
Certificate |
Cart
Quote
|
|---|---|---|---|---|---|---|---|
| PCE-CT 5000H | 0-5000 μm | 0.001 mm | ± (2% + 1 μm) | 1 available |
+VAT
€480,00
|
5-8 business days
|
