Colorimeter 8°/d - 4 mm
- For quality control
- 3 selectable colour spaces
- White and black calibration
- 100 standards, 20,000 samples
- PC software included
- Rechargeable Li-ion battery
Availability & price
| Code | Geometry | Diaphragm | Accuracy | Availability | excl. VAT | incl. VAT | Cart |
|---|---|---|---|---|---|---|---|
| PCE-CSM 1 | 8°/d | 4 mm | ΔE*ab ≤ 0.8 |
€1.598,00
|
€1.981,52
|
- For quality control
- 3 selectable colour spaces
- White and black calibration
- 100 standards, 20,000 samples
- PC software included
- Rechargeable Li-ion battery

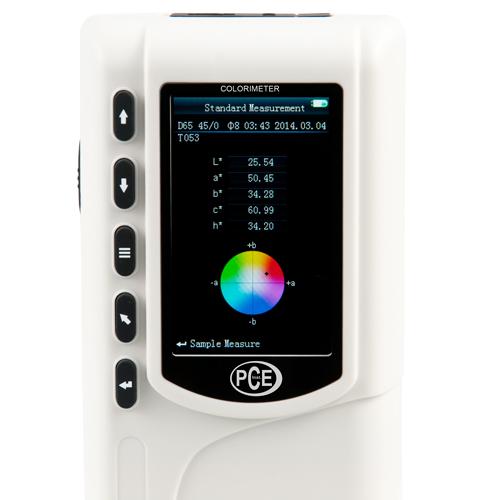

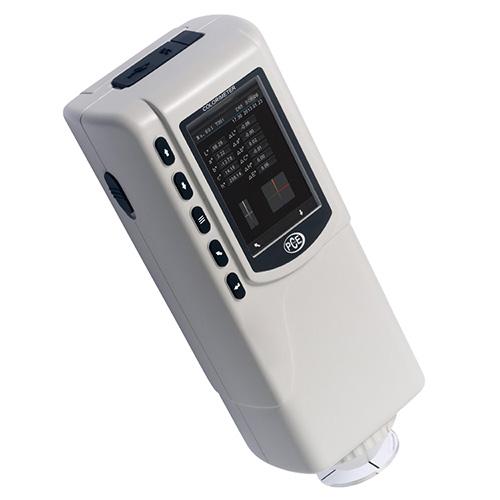

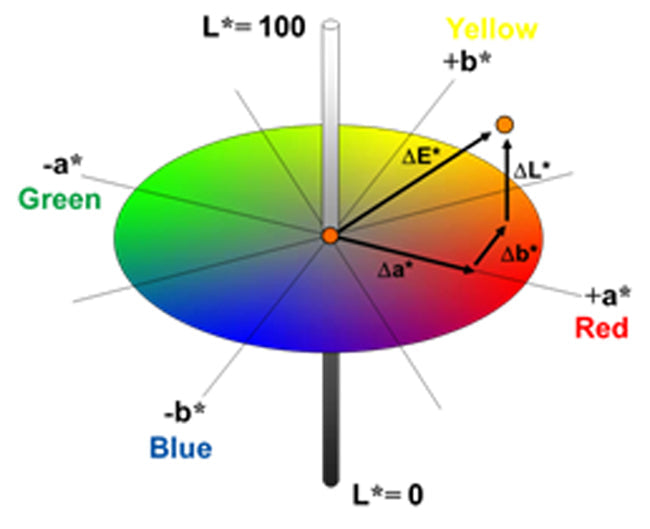

The PCE-CSM 1 is a colour meter for quality control. It measures colour in three colour spaces: CIE L*a*b*C*h, CIE L*a*b* and CIE XYZ. A reading can be saved as a reference value, while further readings are stored as samples and compared with it. Besides the colour space coordinates, the display also shows the deviation between the readings.
The meter stores up to 100 reference values and up to 20,000 samples. Measured data is transferred to a PC through the USB interface, and the PC software is included. The 8°/d integrating sphere geometry lights the sample from an 8-degree angle with diffused illumination.
Highlights
- CIE L*a*b*C*h, CIE L*a*b* and CIE XYZ colour spaces
- Automatic white and black calibration
- Reference value and sample comparison
- 8°/d integrating sphere, diffused illumination
- Stores 100 standards and 20,000 samples
- USB interface, PC software included
- Rechargeable Li-ion battery
- Suitable for many different surfaces
| General technical data | |
|---|---|
| Display type | TFT colour display |
| Display size | 2,8 Inch |
| Storage medium | Internal memory |
| Storage capacity | 20000 Values |
| Memory capacity (additional information) | 100 standards, 20000 samples |

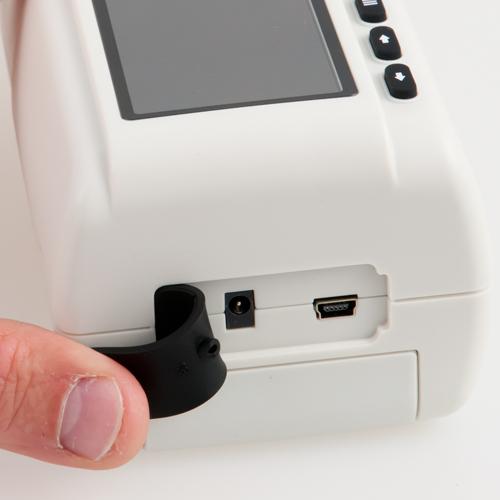

| Interface | Mini-USB |
| Sensor | Silicon photodiode |
| Light source | LED Illuminant: D65 |
| Colour spaces | CIEL*a*b*C*h, CIEL a* b*, CIEXYZ |
| Colour difference | ΔE*ab ΔL*ab ΔE*C*H |
| Measuring aperature | Ø 4 mm |
| Measuring geometry | 8°/d |
| Calibration | White or black calibration selectable |
| Menu language | English, Chinese, English (GB) |
| Protection class (device) | IP20 |
| Power supply | 5 V DC, 2 A |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium-ion battery |
| Capacity | 3200 mAh |
| Operating conditions | 0 ... 40 °C , 0 ... 85 % RH |
| Storage conditions | 0 ... 40 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 205 x 67 x 80 mm |
| Weight | 500 g |
- 1×Color Meter / Colour Meter PCE-CSM 1
- 1×USB cable
- 1×Lithium-ion battery
- 1×AC Charger adapter
- 1×Wrist band
- 1×Calibration plate (white)
- 1×Soft meter carry case
- 1×PC software
- 1×Instruction manual
