PCE-CSM 7 - Colorimeter
| Κωδικός | Γεωμετρία | Διάφραγμα | Ακρίβεια | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| PCE-CSM 7 | 8°/d | 8 mm / 4 mm | ΔE*ab ≤ 0.4 | €4.144,00 | Με παραγγελία | ||
| Geometry | 8/d |
| Diaphragm | Ø8 mm / Ø4 mm |
| Sensor | Silicon photoelectric diode |
| Color Space |
CIEL*a*b*C*h Color stability Color fastness |
| Color difference formula | ΔE*ab; ΔL*ab; ΔE*C*H? DECIE94; ΔHunter |
| Source of light | D65, D50, A |
| Light source device | LED light stimulation |
| Errors between each equipment | ≤0.40 ΔE*ab |
| Memory | 100 reference values, 20,000 measurements |
| Repeatability |
Standard deviation within ΔE*ab 0.06 Average of 30 standard white plate measurements |
| Weight | 500g / 17.6oz |
| Dimension | 205 x 70 x 100 mm / 8 x 2.7 x 3.9 in |
| Power supply | Rechargeable 3.7V Li-ion battery |
| Charging time | 2 hours (8 hours the first time) |
| Battery life | more than 3000 measurements |
| Lamp life | 5 years or more than 1.6 million measurements |
| Operating conditions | -10 ... +40 °C / 14 ... 104 °F; 0 ... 85% relative humidity, non-condensing |

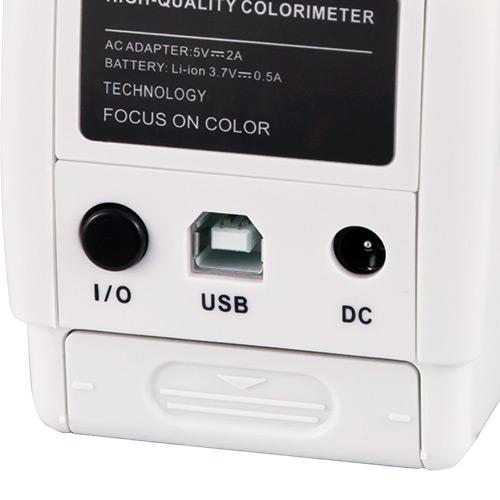

| Exit | USB |

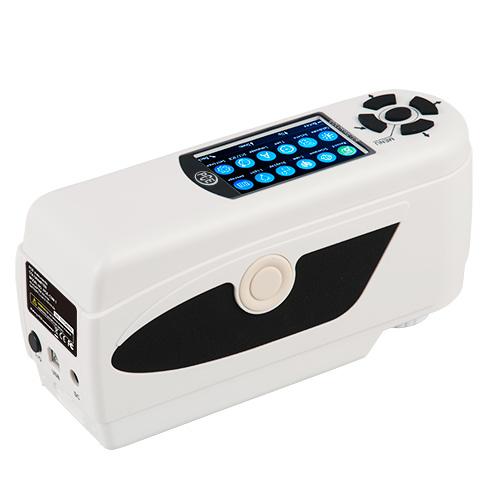

The PCE-CSM 7 color meter is an ideal color measuring and detection device and offers

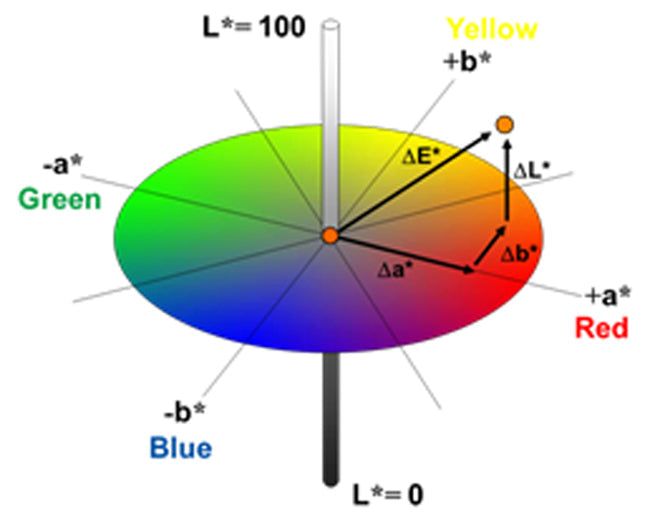

high accuracy. The available color spaces are L*a*b*C*h,

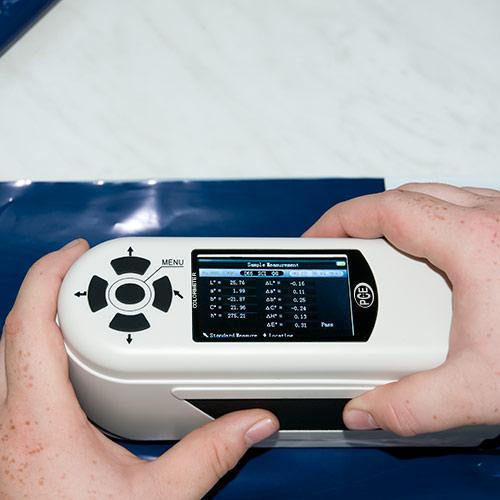

L*a*b, XYZ, RGB, L*u*v, C*H. In addition, two different diaphragms (Ø4 mm and Ø8 mm) are included for different applications. The user has the ability to save readings as reference values so that he can compare them with other readings he receives. The color difference of the color spaces is also displayed on the screen.
In the built-in memory of the colorimeter, up to 100 reference values and up to 20,000 measurements can be stored. Thanks to the included software, the measurement data can also be transferred to a PC via USB for further processing and analysis.

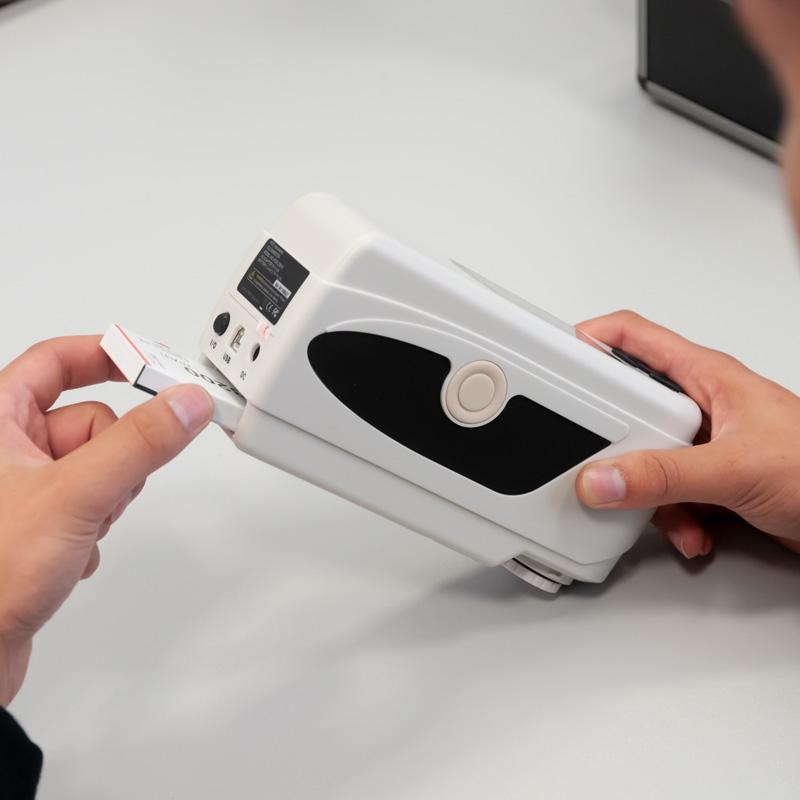

- Automatic white and black calibration
- Stable performance
- Degree of whiteness
- Measuring different colors
- Application on many surfaces
- Handy
- Delta CIE 1976 and 1994 options
- 3 light sources
- 8mm extended aperture option for concave surfaces
- Camera/lighting detection for small samples

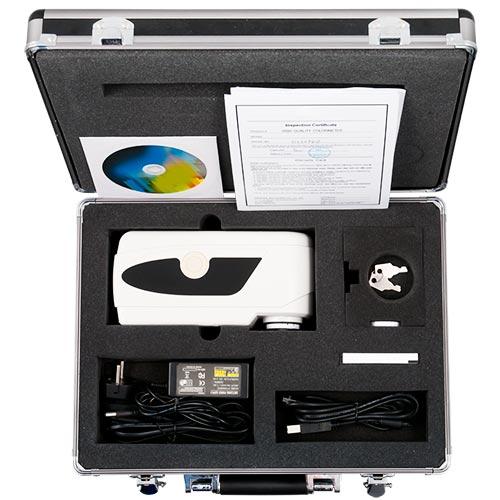

1 x Rechargeable battery
1 x AC Adapter
1 x PC Software
1 x User Manual
2 x Diaphragms (4 and 8 mm diameter)
1 x White calibration standard
