Colorimeters

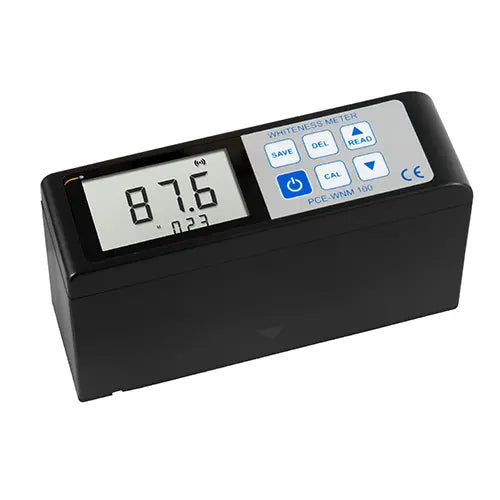

PCE Instruments PCE-WNM 100 whiteness meter, black, with large LCD display and CAL/READ/SAVE buttons

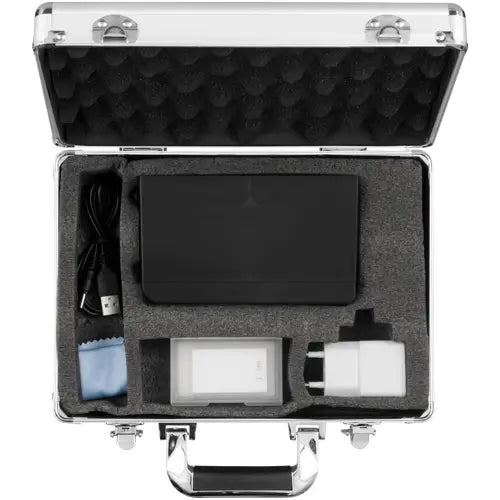

Carrying case with foam insert for PCE Instruments PCE-WNM 100, with USB cable and accessories

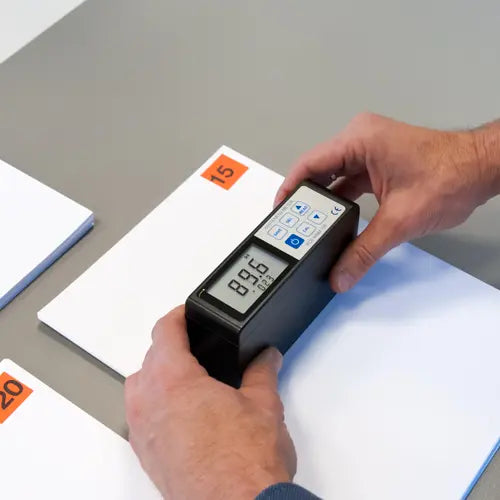

PCE Instruments PCE-WNM 100 whiteness meter in use on white paper, with LCD display and control buttons

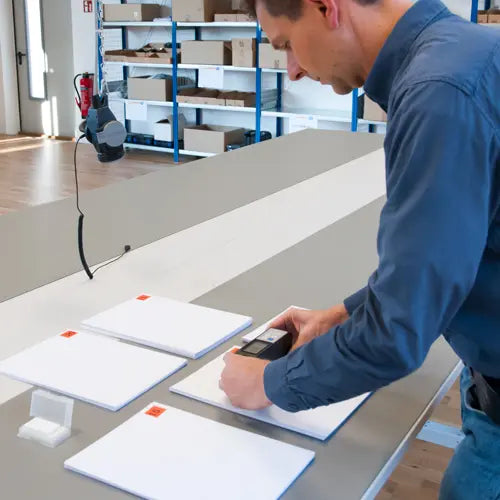

PCE Instruments PCE-WNM 100 whiteness meter used on paper samples on a workbench
PCE Instruments PCE-WNM 100 45°/0 whiteness meter, black benchtop unit with display and buttons on top

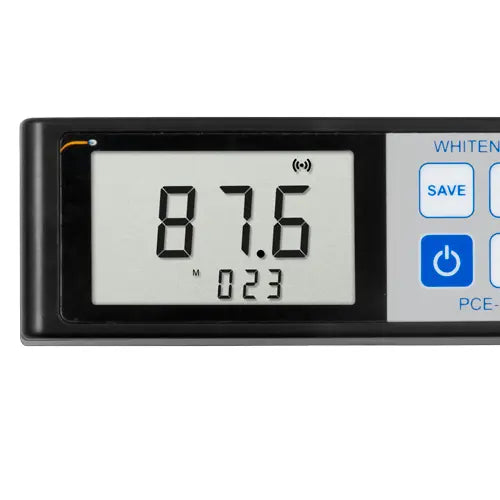

PCE Instruments PCE-WNM 100 whiteness meter with large LCD display and blue SAVE/ON-OFF buttons
PCE Instruments PCE-WNM 100 whiteness meter, black, with large LCD display and CAL/READ/SAVE buttons
Carrying case with foam insert for PCE Instruments PCE-WNM 100, with USB cable and accessories
PCE Instruments PCE-WNM 100 whiteness meter in use on white paper, with LCD display and control buttons
PCE Instruments PCE-WNM 100 whiteness meter used on paper samples on a workbench
PCE Instruments PCE-WNM 100 45°/0 whiteness meter, black benchtop unit with display and buttons on top
PCE Instruments PCE-WNM 100 whiteness meter with large LCD display and blue SAVE/ON-OFF buttons

Availability & price

Code Availability excl. VATincl. VAT Cart
PCE-WNM 100
€600,00
€744,00
0
  • Measuring range up to 120
  • 457 nm LED, 45/0 geometry
  • Memory for 245 readings
  • Serial PC interface
  • Li-Ion battery

The PCE-WNM 100 brightness tester measures the whiteness of flat surfaces and powders. A light source and an optical measuring system read the reflected light and calculate whiteness to ISO R457 (ISO 2469). Typical samples are textile prints, dyes, building materials, cardboard, paper and plastics.

After an initial calibration on the supplied white standard, the meter is ready for use. It stores up to 245 readings and connects to a PC via the serial interface for live logging of the measured values.

Highlights

  • 457 nm LED light source
  • 45/0 measuring geometry
  • Whiteness range 0 ... 120, resolution 0,1
  • Whiteness calculation to ISO R457 (ISO 2469)
  • Memory for 245 readings
  • Serial interface for live PC logging
  • LC display and 1000 mAh Li-ion battery
  • For textiles, paper, plastics and building materials
Whiteness
Measuring range0 ... 120
Resolution0,1
General technical data
Repeat accuracy<0.5
Light sourceLED 457 nm
Measuring aperature18 x 11 mm
Measuring geometry45/0
DriftZero drift: ≤0.1
Additional descriptionWhiteness calculation: R457 (blue light whiteness)
Protection class (device)IP20
Power supply5 V DC
Connector typeDevice-europlug
(Rechargeable) battery1 x 3,7 V internal , Lithium-ion polymer battery
Capacity1000 mAh
Operating conditions0 ... 40 °C , 0 ... 85 % RH
Storage conditions0 ... 40 °C , 0 ... 85 % RH
Dimensions ( L x W x H )140 x 45 x 75 mm
Weight305 g
  • 1×Brightness Tester PCE-WNM 100
  • 1×Calibration plate
  • 1×Cleaning cloth
  • 1×Power supply
  • 1×Carrying case
  • 1×User manual
Datasheet Technical datasheet Manual User manual
