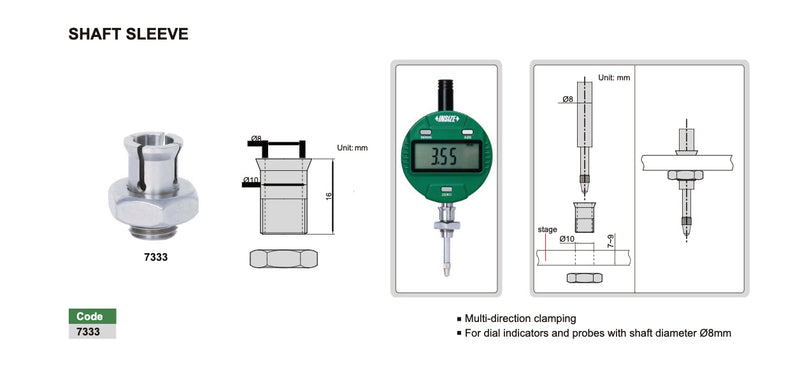

Shaft sleeve adapter for mounting and fitting dial indicators and measuring probes with a Ø8 mm stem to a measuring stand or fixture. Used to ensure correct instrument positioning and secure clamping during displacement measurements and inspection setups on benches and measuring rigs.
Technical Documents
PDF
Datasheet
PDF
Catalog
Code
Availability
Priceexcl. VATincl. VAT
Certificate
Cart
7333
On backorder:4 pcs in 5-8 business days
8 pcs in ~3 weeks
The dial indicators (or comparative gauges) are high-precision measuring instruments used to check the deviations of a surface from a reference point. They are essential for machine tool setup and component quality control, as they can detect differences on the order of 0,01 mm or even 0,001 mm.
Types:Face (Plunger Type): They have a spindle that moves linearly up and down. Ideal for measuring flatness and perpendicularity.Test indicators (Lever Type): They have a rotating stylus (lever). They are extremely versatile for measurements in hard-to-reach areas or for checking radial deviation (run-out) on lathes.
Applications: * Alignment of parts in the lathe chuck.Checking parallelism on milling machine tables.Measuring wear on brake discs or engine shafts.
Use with Magnetic Base: For the indicator to operate, it must be mounted on a stable magnetic base with articulated arms, so that it remains stationary during the measurement.
