Name: Thickness Caliper
Brand: Insize
SKU: 4853-1
Price: 44.39 EUR
Availability: InStock

Drill, Thread Gauges

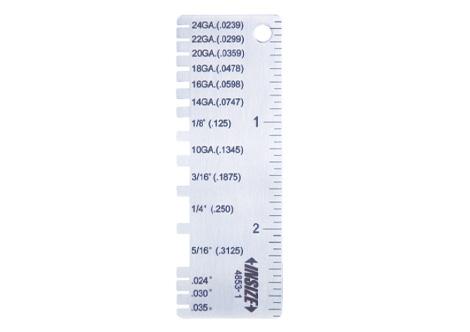

Καλίμπρα πάχους Insize 4853-1 μεταλλική, ασημί, με εγκοπές και κλίμακα σε gauge και ίντσες

Τεχνικά χαρακτηριστικά 4853-1 - Καλίμπρα Πάχους

Description

Specifications

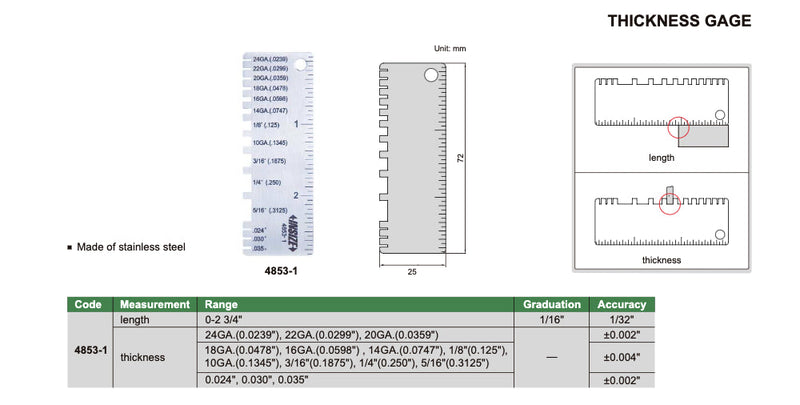

Type: Thickness gage with length scale
Material: Stainless steel
Code/Model: 4853-1
Length measurement range: 0–2 3/4"
Graduation (length): 1/16"
Accuracy (length): 1/32"
Thickness measurement: 24GA (0.0239"), 22GA (0.0299"), 20GA (0.0359"), 18GA (0.0478"), 16GA (0.0598"), 14GA (0.0747"), 1/8" (0.125"), 10GA (0.1345"), 3/16" (0.1875"), 1/4" (0.250"), 5/16" (0.3125")
Additional thickness marks: 0.024", 0.030", 0.035"
Accuracy (thickness): ±0.002" / ±0.004" (depending on measurement section)
Dimensions (mm): 72 x 25

Description

The 4853-1 thickness gage is a quick reference tool for identifying and checking material thickness (e.g., sheet/plate) using gauge (GA) and inch values. It also includes a length scale for basic measurements and a stainless-steel body for use in workshops, production, and maintenance tasks.
