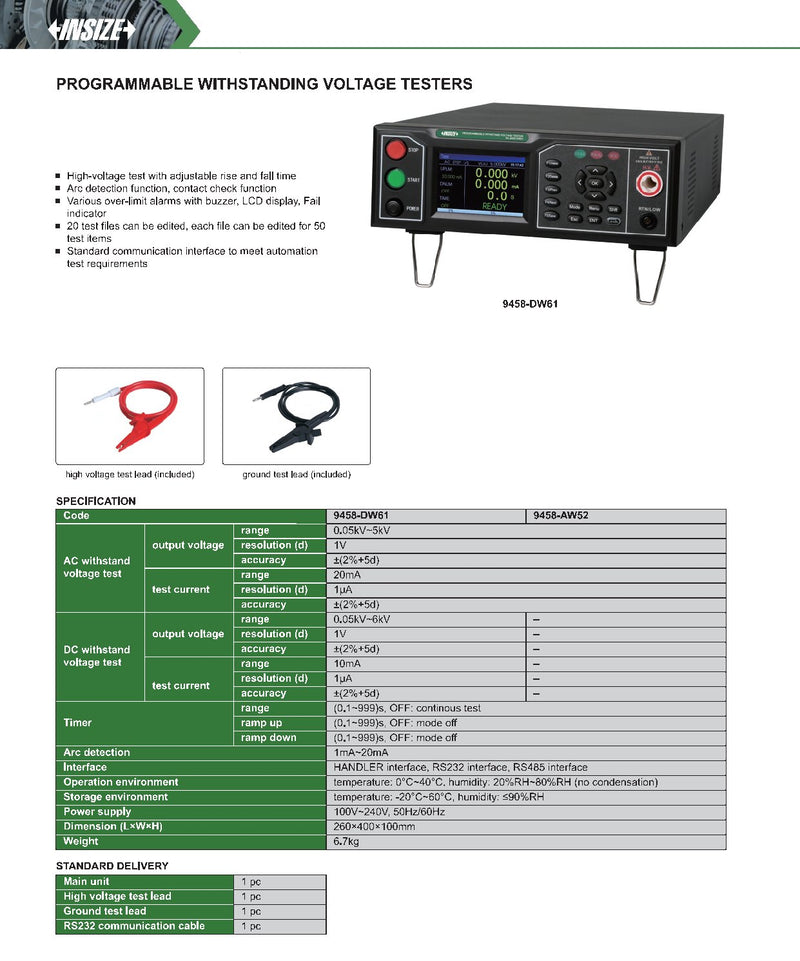

Specifications
- Models (vendor codes): 9458-DW61, 9458-AW52
- AC withstand voltage test:
- Output voltage: 0.05kV~5kV
- Resolution (d): 1V
- Accuracy: ±(2%+5d)
- Test current: 20mA
- Resolution (d): 1μA
- Accuracy: ±(2%+5d)
- DC withstand voltage test:
- 9458-DW61: Output voltage 0.05kV~6kV, resolution 1V, accuracy ±(2%+5d), test current 10mA, resolution 1μA, accuracy ±(2%+5d)
- 9458-AW52: Not supported (—)
- Timer:
- Range: (0.1~999)s, OFF: continous test
- Ramp up: (0.1~999)s, OFF: mode off
- Ramp down: (0.1~999)s, OFF: mode off
- Arc detection: 1mA~20mA
- Interfaces: HANDLER interface, RS232 interface, RS485 interface
- Operating environment: 0°C~40°C, 20%RH~80%RH (no condensation)
- Storage environment: -20°C~60°C, ≤90%RH
- Power supply: 100V~240V, 50Hz/60Hz
- Dimensions (L×W×H): 260×400×100mm
- Weight: 6.7kg
- Functions (per datasheet): adjustable rise/fall time, arc detection, contact check, over-limit alarms (buzzer/LCD/Fail indicator), editable test files (20 files, up to 50 test items/file)
- Standard delivery: main unit (1 pc), high voltage test lead (1 pc), ground test lead (1 pc), RS232 communication cable (1 pc)
Description

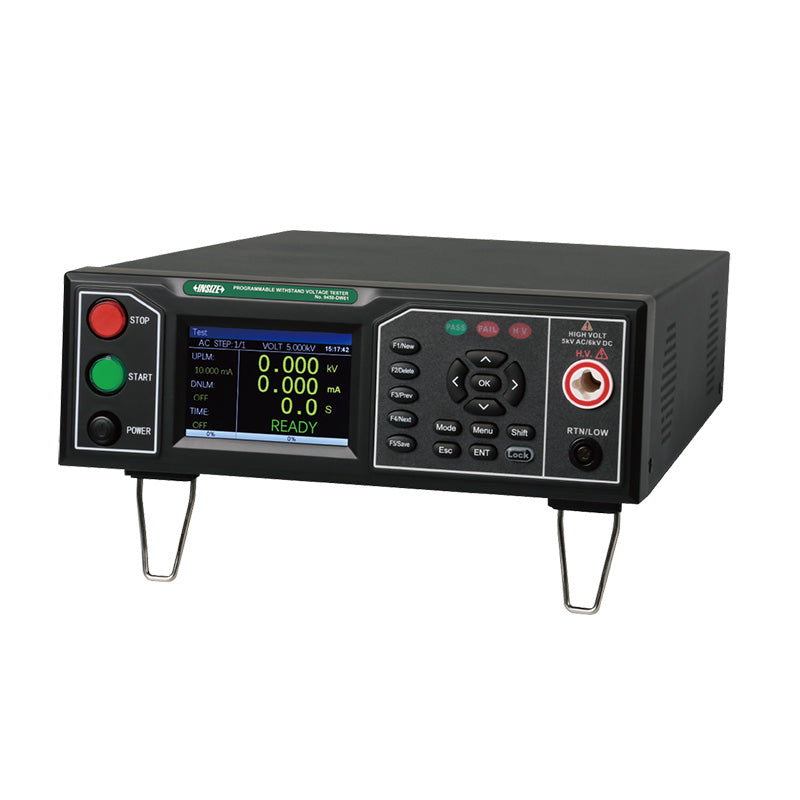

Programmable withstanding voltage tester for high-voltage insulation testing of electrical/electronic components and assemblies. It performs AC withstand voltage tests with leakage current measurement, and model 9458-DW61 also supports DC withstand voltage testing. Includes timer with ramp up/ramp down control, arc detection, and RS232/RS485 interfaces for automation and production test setups.
2 Years Warranty
INSIZE Factory
INSIZE was founded in 1995 and is one of the world’s leading manufacturers of measuring instruments and metrology equipment.
With factories in China and other countries in Asia, as well as production facilities in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability, and reliability, while being distinguished by an excellent quality-to-price ratio.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of INSIZE in Greece since 2007. We have more than 1,500 INSIZE product codes in stock, a number that is continuously increasing. In addition, we can support the entire range of the Insize catalog which includes more than 40,000 different product codes.
In our store we provide technical support for all INSIZE products through trained technicians, while ensuring high availability of spare parts, ensuring prompt service and reliability for our customers.
INSIZE Products
INSIZE offers a complete range of measuring instruments for industrial, machining and laboratory use, such as:
- Calipers and Micrometers
- Dial Indicators and Depth Gauges
- Bore Gauges, Telescopic Gauges, Vernier Height Gauges, as well as Measuring Rules
- Precision Levels, Squares, and Straightedges
- Surface Plates, Height Gauges, and Johansson Gauge Blocks
- Thread, Hole, and Shaft Gauges
- Hardness Testers, Roughness Testers, Ultrasonic Thickness Gauges and Coating Thickness Gauges
- Dynamometers, Tachometers, and Endoscopes
- CMM measuring systems, Profile Projectors, as well as Microscopes
All of its products meet European specifications, following various international quality and safety standards.
| SKU | AC Withstand Voltage | AC Leakage Current | DC Withstand Voltage | Availability |
Price
+VAT
|
Certificate |
Cart
Quote
|
|---|---|---|---|---|---|---|---|
| 9458-DW61 | 5kV | 20mA | 6kV | On Order |
+VAT
€1.746,00
|
5-8 business days
|
|
| 9458-AW52 | 5kV | 20mA | no | On Order |
+VAT
€1.380,00
|
5-8 business days
|
