| CO2 measurement | |
| Measuring range | 0 ... 4000 ppm |
| Reading | 1 ppm |
| Accuracy | ± 70 ppm (<1000 ppm) |
| ± 5% of reading (<3000 ppm) | |
| ± 250 ppm (> 3000 ppm) | |
| Air humidity measurement | |
| Measuring range | 10 ... 90% RH |
| Reading | 0.1% RH |
| Accuracy | ± (4% of reading + 1% RH) (> 70% RH) |
| ± 4% RH (<70% RH) | |
| Measured variable temperature | |
| Measuring range | 0 ... 50°C / 32 ... 122°F |
| Reading | 0.1°C / 0.18°F |
| Accuracy | ± 0.8°C / 1.4°F |
| Storage interval | 1, 2, 5, 10, 30, 60, 120, 300, 600 seconds |
| Memory | SD card up to 16 GB |
| Display | LCD with backlight |
| Screen refresh | 1s |
| Power supply | Battery 6 x 1.5 V AA (only for backup time) |
| Plug-in power supply 9V / 800-mA | |
| Operating conditions | 0 ... 50°C / 32 ... 122°F, <85% RH |
| Dimensions | Main unit: 132 x 80 x 32 mm / 5.2 x 3.1 x 1.3 in |
| CO2 sensor: 132 x 38 x 32 mm / 5.2 x 1.5 x 1.3 in | |
| Weight | Approximately 390 g / < 1 lb (total) |
CO2 detector PCE-AQD 10 /
CO2 data logger for air quality monitoring / Adjustable storage rate / Backlit LCD display / Storage on SD card / Save as XLS
CO2 data logger for air quality monitoring / Adjustable storage rate / Backlit LCD display / Storage on SD card / Save as XLS

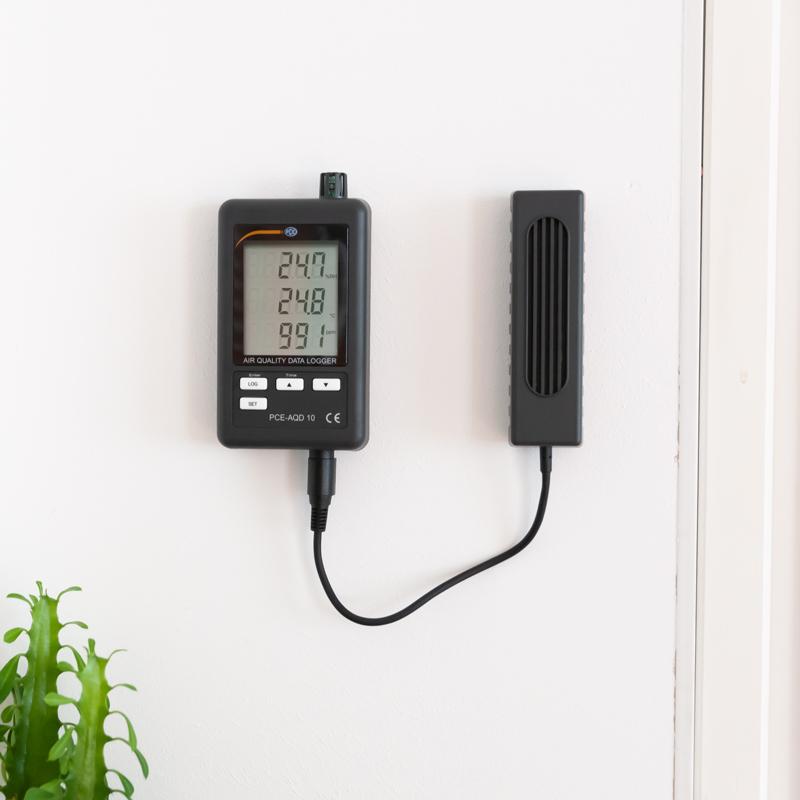

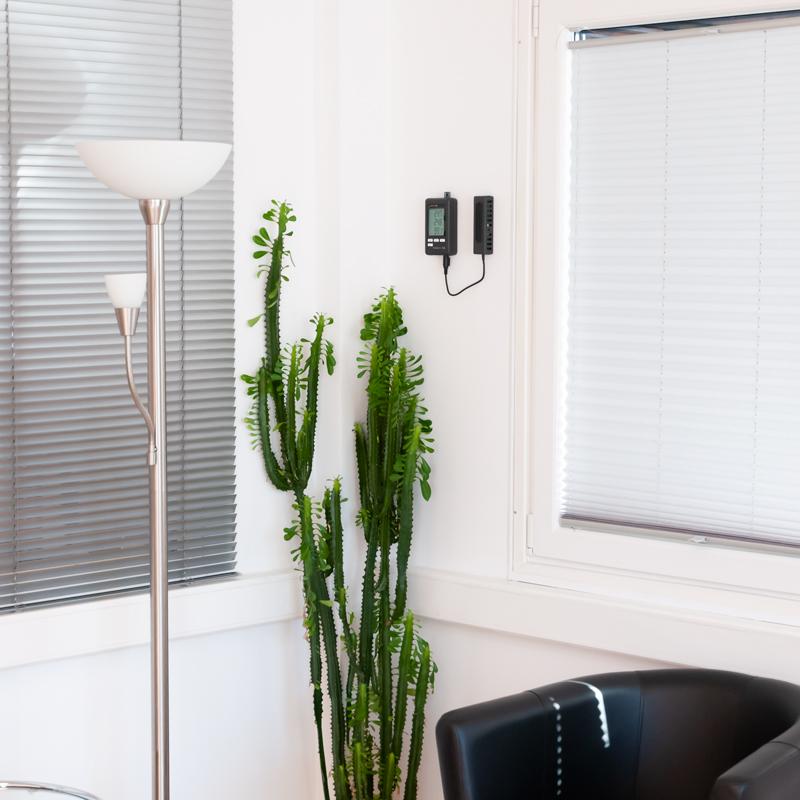

The CO2 detector PCE-AQD 10 is used for monitoring indoor air quality and measures carbon dioxide, temperature, and humidity. The measured values are displayed on the large screen of the logger, which are then saved to an SD memory card. The user can set the data logging intervals from 1 to 600 seconds. The CO2 sensor connects to the main unit with a cable. Via the SD memory, measurement data can be recorded for long periods.
- Memory on SD card
- 3 air quality parameters
- CO2, air temperature and humidity
- Network operation, A/C adapter
- Save as XLS file
- Large backlit display
Package contents
1 x CO2 data logger PCE-AQD 10
1 x CO2 sensor
1 x Current transformer
1 x SD memory card
2 x Wall mount
1 x Adhesive pad
1 x User manual
1 x CO2 sensor
1 x Current transformer
1 x SD memory card
2 x Wall mount
1 x Adhesive pad
1 x User manual
