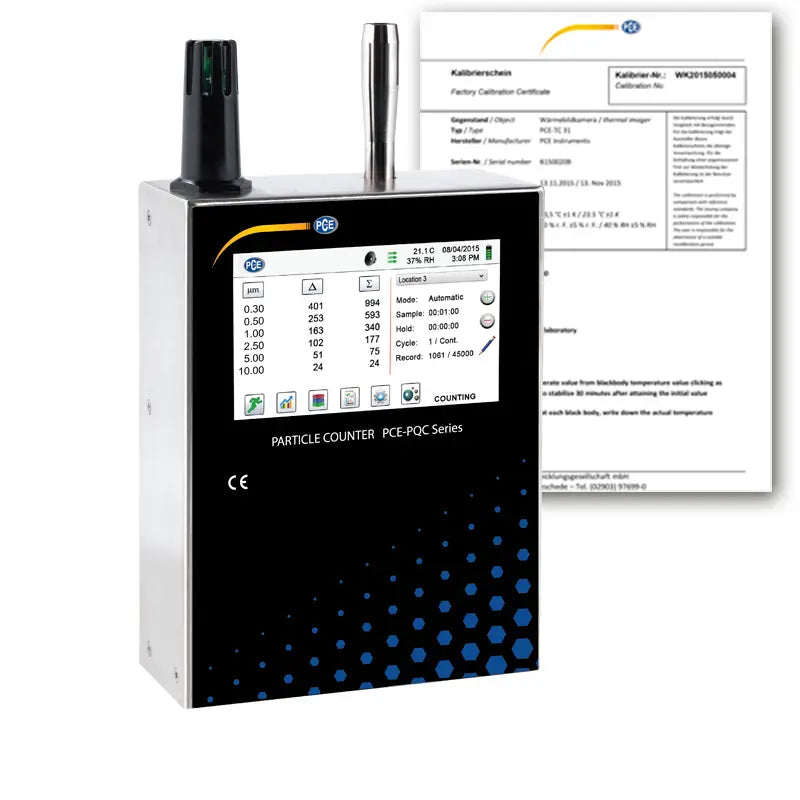

PCE Instruments PCE-PQC 32EU dust/particle counter with colour display and sensor, with calibration certificate
Technical specifications PCE-PQC 32EU - Particle Counter 0.3-25 μm - Factory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 μm variable binning
PCE Instruments PCE-PQC 32EU dust/particle counter with colour display and sensor, with calibration certificate
Technical specifications PCE-PQC 32EU - Particle Counter 0.3-25 μm - Factory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 μm variable binning

Availability & price

Code Availability excl. VATincl. VAT Certificate Cart
PCE-PQC 32EU
€4.976,00
€6.170,24
0
  • Real-time particle counting
  • Built-in data logger
  • Remote access to measured data
  • Expandable with weather sensors
  • For rod and wall mounting

The PCE-PQC 32EU is a particle counter for real-time measurement of airborne particles. It measures 6 user-selectable particle size channels and, optionally, temperature and relative humidity. It stores up to 45,000 readings with a time stamp.

The unit mounts on a rod or wall. It connects to building automation and clean room management systems via Ethernet or, optionally, Wireless 802.11 b/g, RS485 or RS232. You can control and monitor it remotely in a web browser. Extra weather sensors can be added. A calibration certificate traceable to NIST is included.

Highlights

  • Real-time particle measurement
  • 6 user-selectable particle size channels
  • Internal memory for 45,000 time-stamped readings
  • Remote access via Ethernet or optional Wi-Fi
  • Gravimetric filter
  • Optional temperature / humidity sensor
  • NIST-traceable calibration certificate included
  • Standards: ISO 21501-4 and JIS B9921
Particle
Measuring channel sizes0.3, 0.5, 1.0, 3.0, 5.0, 10
Measuring range0,3 ... 25 µm
Counting efficiency50 % at 0.3 µm, 100 % at >0.45 µm according to JIS
Flow volume2,83 l/min
General technical data
Display typeColour touch display
Display size4,3 Inch
Storage mediumInternal memory
Storage capacity45000 Data records
Memory capacity (additional information)Ring memory consisting of particle count, temperature and humidity
Storage interval from1 s
Storage interval to99 h
InterfaceEthernet, USB
Standard(s)ISO 21501-4, JIS B9921
Menu languageEnglish
Power supply110 ... 240 V AC 50/60 Hz
Connector typeDevice-europlug
Rechargeable battery1 x 10,8 V internal , Lithium-ion battery
Capacity5200 mAh
Operating conditions5 ... 40 °C , 0 ... 95 % RH
Storage conditions0 ... 50 °C , 0 ... 98 % RH
Dimensions ( L x W x H )133 x 58 x 226 mm
  • 1×Particle counter PCE-PQC 32EU
  • 1×Isokinetic probe
  • 1×Power supply
  • 1×Calibration certificate according to NIST
  • 1×User manual
  • Attention! We do not offer the external suction pump > 0.5 bar (15 "Hg)!
Datasheet Technical datasheet Manual User manual
PCE Instruments

Official distributor

PCE Instruments

Η PCE Deutschland GmbH , γνωστή ως PCE Instruments , είναι μια γερμανική εταιρεία με έδρα το Meschede, που από το 1999 έως σήμερα έχει καθιερωθεί διεθνώς ως αξιόπιστος κατασκευαστής και προμηθευτής οργάνων μέτρησης, ελέγχου και ζύγισης. Η εταιρεία διαθέτει μια εξαιρετικά πλούσια γκάμα οργάνων – από μετρητές δόνησης, υγρασίας, θορύβου και θερμοκρασίας έως ζυγούς ακριβείας, αναλυτές, αισθητήρες και καταγραφικά δεδομένων – κ αλύπτοντας κάθε ανάγκη στον χώρο της βιομηχανίας, των εργαστηρίων και της έρευνας.

This product belongs to the collection

Gas Detectors - Dust Meters

You're viewing one product from this category. Browse the full range.

51 products
View all

Related categories

All categories →
Thermometers & Hygrometers Sound meters23 products Anemometers27 products Photometers13 products
Dust Meters

From our Wiki

Dust Meters

Dust meters (or particle counters) are air quality monitoring instruments that detect the concentration of suspended particles (Particulate Matter - PM). Their operation is usually based on laser scattering (laser scattering) technology, where a beam of light strikes the particles and the sensor calculates their size and quantity.

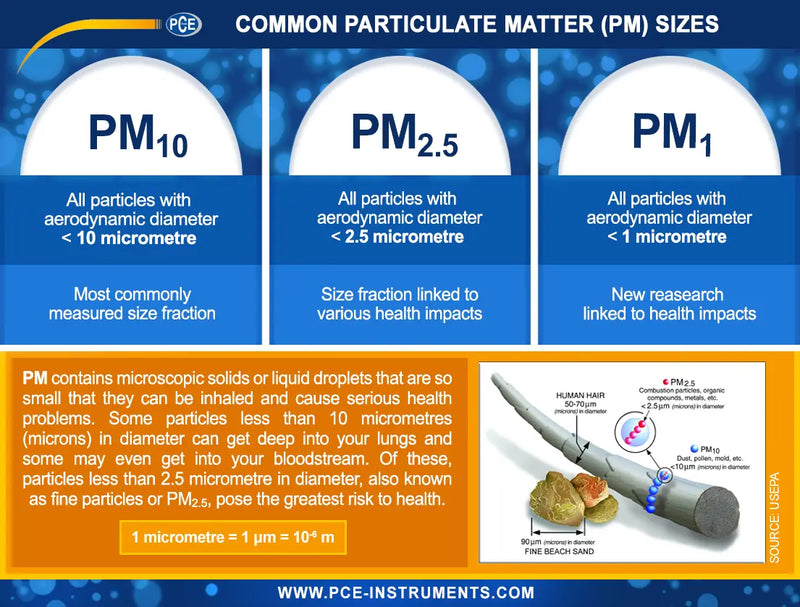

  • Particle Categories:PM2.5: Fine particles (up to 2.5 μm) that penetrate deep into the lungs and the bloodstream.PM10: Particles (up to 10 μm) such as dust, pollen, and mold.
  • Applications:Industry: Dust control in carpentry workshops, cement plants, and mines to protect workers.Cleanrooms (Cleanrooms): Certification of pharmaceutical or electronics production areas.Environment: Monitoring of air pollution and "smog" in cities.
  • Features: They include a data recording function (data logging), audible limit-exceedance alerts, and often also measure temperature and humidity in parallel.
