PCE-WMM 50 - CO2 Gas Detector
|
Sensor unit |
|
| CO2 measurement range | 0 ... 50,000 ppm (5%) (vol.) NDIR sensor |
| Temperature (gas / ambient) | 0 ... +45 °C / +32 ... +113 ºF |
| Detection method | By diffusion |
| Alarm contacts |
- 1 voltage-free contact for control of external devices (NO/NC) with alarm release 1 - Switching power: 30 V DC / 250 V AC, max. 2 A |
| Alarm limits |
Alarm 1: 0.5 / 1 / 1.5 / 2% Alarm 2: 1.5 / 2 / 2.5 / 3 / 3.5 / 4% |
| Menu items | Functional test of connection between detection unit and alarm unit, calibration, switching between °C and °F, alarm 1, 2 and factory reset |
| Display elements |
- 4-digit digital display for gas concentration within a range of 0... 9999 ppm - 3-digit digital display for gas concentration within a range of 1...5 % - Additional 3-digit digital display for measurement and temperature in °C and °F - Operation LED, alarm 1, 2 and supply voltage monitoring |
| Functional elements | Reset, Menu, Enter |
| Additional Functions | Continuous self-monitoring of temperature range, sensor lifetime, EEPROM system, internal data transfer |
| Casing | Synthetic, IP54 certified, water resistant |
| Dimensions | Approx 168 x 125 x 47mm / 6.62 x 4.93 x 1.85" (without connectors) |
| Power supply (adapter) | 100 ... 240 V AC, 50 / 60 Hz |
|
Main Unit |
|
| Temperature (gas / ambient) | 0 ... +45 °C / +32 ... +113 ºF |
| Menu items |
- 4-digit digital display for gas concentration within a range of 0... 9999 ppm - 3-digit digital display for concentration within a range of 1... 5% - Additional digital display for temperature measurement in °C and °F - LED for operation, alarm 1, 2 and voltage supply monitoring |
| Display elements | Function test, Reset, Menu , enter, switch between °C and °F |
| Casing | Aluminum, IP54 certified, water resistant |
| Dimensions | 118 x 85 x 34 mm / 4.65 x 3.35 x 1.34" (without connectors) |
| Supply voltage | Via data cable to the sensor unit |
Gas detector for the detection of carbon dioxide (CO2) / 2 adjustable alarm limits /
4-digit digital display / Built-in alarm device / Easy wall mounting
The PCE-WMM 50 is a wall-mounted diffusion gas detector for monitoring carbon dioxide (CO2) levels and ambient temperature (ºC / ºF) indoors. This indoor air quality meter has a voltage-free contact, which is activated by an alarm and can, for example, start a fan to reduce the concentration of CO2 gas in the room.

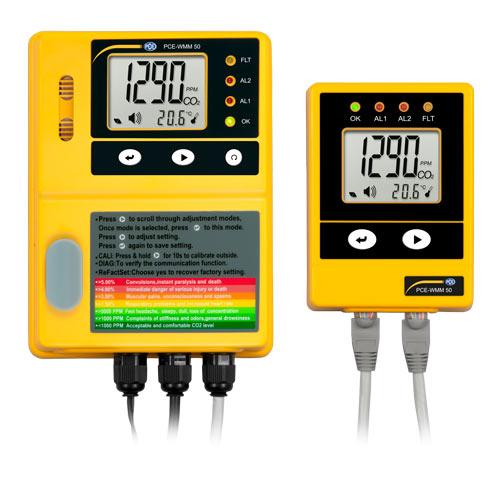

The PCE-WMM 50 alarm meter consists of two parts: the sensor unit and the main unit, which can be fixed on a wall. This allows safe monitoring for leakage outside the exposure zone.
- CO2 gas measurement range: 0 ... 50000 ppm
- Temperature measurement range: 0 ... +45 ºC / +32 ... +113 ºF
- Enclosure with IP54 sealing class on sensor unit and main unit
- 2 adjustable alarm limits
- The voltage-free contact, which is activated by an alarm, can for example start a fan to reduce the CO2 gas concentration in the room
- remote control with 3 to 4 digits (depends on range)
- Audible and visual alarm

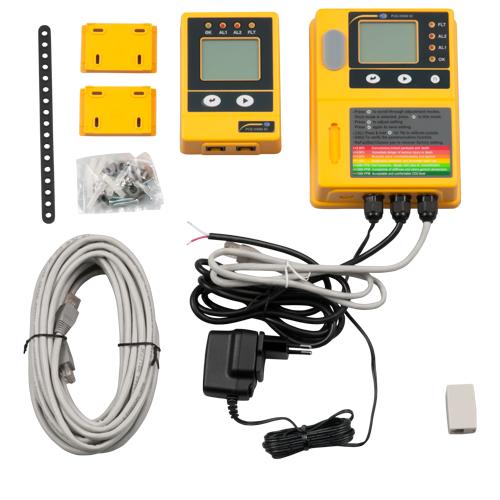

Package contents
1 x PCE-WMM 50 gas detector (consisting of sensor unit and permanent installer main unit)
1 x User Manual
