Specification
| AC voltage AC | |
| Measuring range | 0 V ... +550 V |
| Resolution | 1 V |
| Accuracy | plus-minus(2 % v. Mw. + 2 digits) |
| Insulation resistance | |
| Test voltage DC | 50 V |
| Measuring range | 0.1 M Ω ... +80 M Ω |
| Resolution | 0.001 MΩ (0.100 ... 1.999) 0.01 MΩ (2.00 ... 80.00) |
| Accuracy | plus-minus(5 % of VAT + 3 digits) |
| Insulation resistance | |
| Test voltage DC | 100 V, 250 V |
| Measuring range | 0.1 M Ω ... +199.9 M Ω |
| Resolution | 0.001 MΩ (0.100 ... 1.999) 0.01 MΩ (2.00 ... 99.99) 0.1 MΩ (100.0 ... 199.9) |
| Accuracy | plus-minus(5% of VAT + 3 digits) |
| Insulation resistance | |
| Test voltage DC | 500 V, 1000 V |
| Measuring range | 0.1 M Ω ... +199.9 M Ω |
| Resolution | 0.001 MΩ (0.100 ... 1.999) 0.01 MΩ (2.00 ... 99.99) 0.1 MΩ (100.0 ... 199.9) |
| Accuracy | plus-minus(2% of VAT + 3 digits) |
| Insulation resistance | |
| Test voltage DC | 500 V, 1000 V |
| Measuring range | +200 M Ω ... +999 M Ω |
| Resolution | 1 MΩ |
| Accuracy | plus-minus(10% of VAT) |
| Passage check | |
| Measuring range | 0.1 Ω ... +20 Ω |
| Resolution | 0.01 Ω |
| Accuracy | plus-minus(3% of VAT + 3 digits) |
| Passage check | |
| Measuring range | +20 Ω ... +1999 Ω |
| Resolution | 0.1 Ω (20.0 Ω ... 99.9 Ω) 1 Ω (100 Ω ... 1999 Ω) |
| Accuracy | plus-minus(5 % of VAT) |
| Impedance | |
| Measuring range | 0.25 Ω ... +9999 Ω |
| Resolution | 0.01 Ω (0.20 ... 19.99) 0.1 Ω (20.0 ... 99.9) 1 Ω (100 ... 9999) |
| Accuracy | plus-minus(5 % of VAT + 5 digits) |
| Frequency | |
| Measuring range | +10 Hz ... +499.9 Hz |
| Resolution | 0.1 Hz |
| Accuracy | 0.2 % + 1 digit |
| General technical data | |
| Display type | TFT color display |
| Display size | 3.3 inch |
| Standard(s) | EN61557, DIN VDE 0100 |
| Operating time | 15 h |
| Automatic switch-off adjustable | 0.5 ... 60 min |
| Automatic switch-off can be deactivated | Yes |
| RCD test current characteristic | A, AC |
| RCD tripping current | 650 mA, 500 mA, 30 mA, 6 mA, 300 mA, 10 mA, 1000 mA, 100 mA |
| RCD tripping time | 0 ... 500 ms |
| Touch voltage | 0 ... 99.9 V |
| Menu language | German, English |
| Protection class (device) | IP42 |
| Power supply | Battery, power supply unit |
| Weight | 1300 g |
| Device weight with scope of delivery | 1750 g |
| Device weight with scope of delivery and outer packaging | 1930 g |
| Dimensions (L x W x H) | 250 x 135 x 107 mm |
| Operating conditions | 0 ... 40 degreesC , 95 % r.h. |
| Storage conditions | -10 ... 70 degreesC , 90 % r.H |
Description

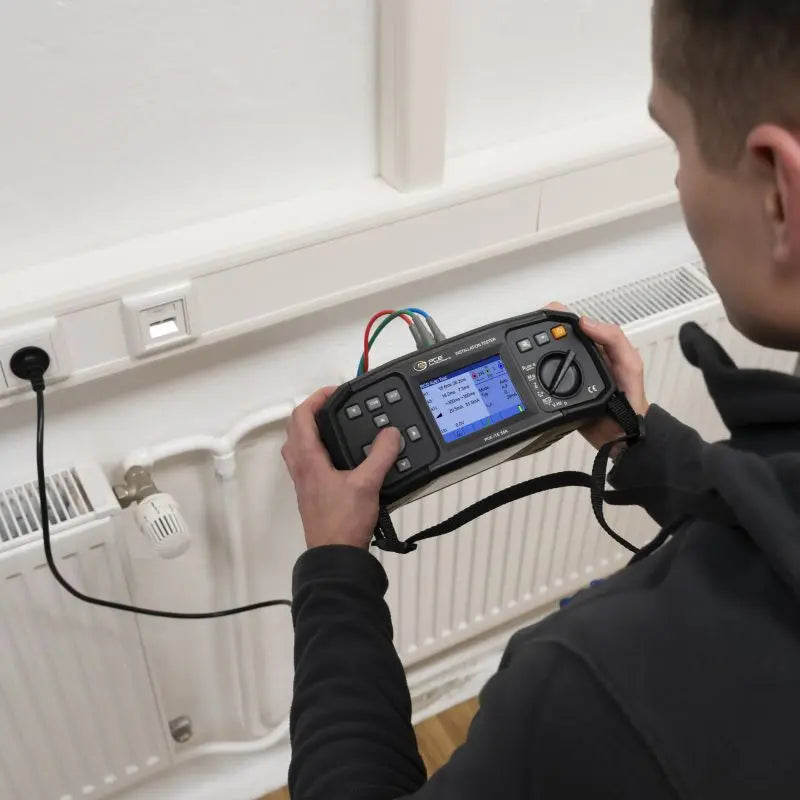

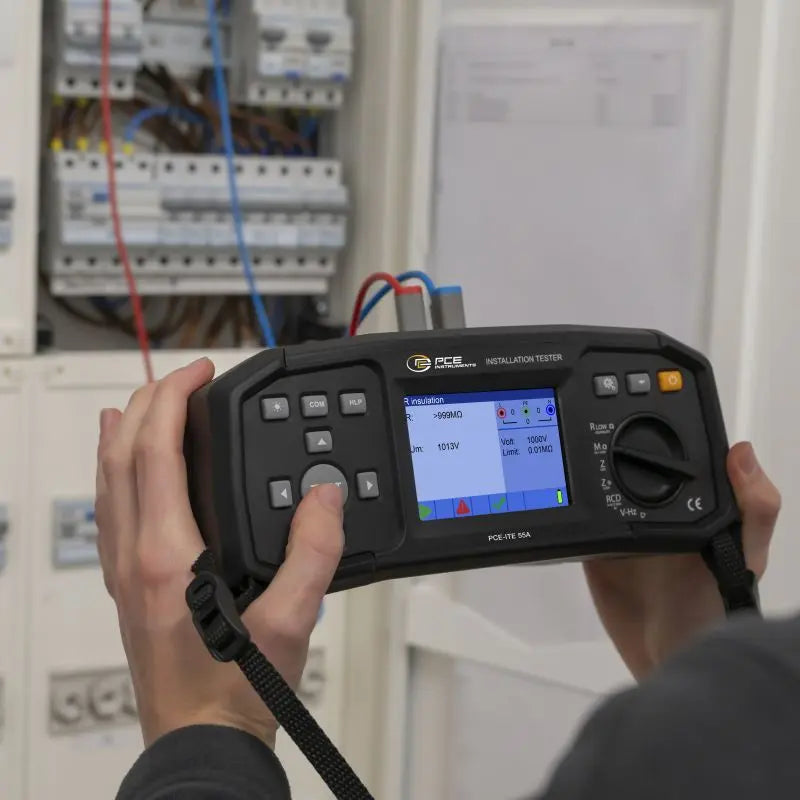

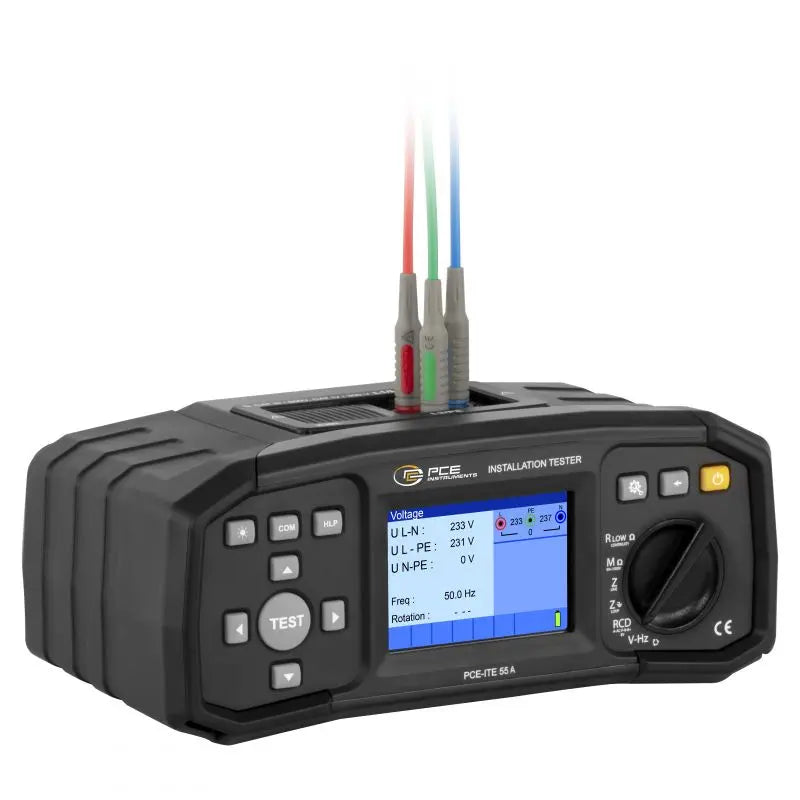

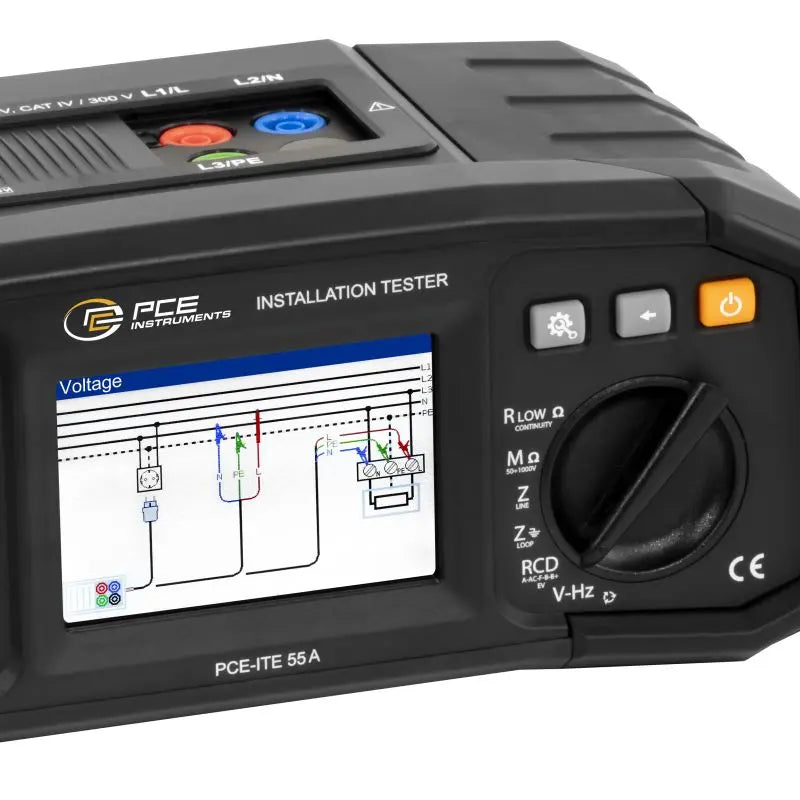

The electrical tester allows for the quick and accurate measurement of loop resistance to ensure that, in the event of a fault current, sufficient resistance is present to ensure a safe disconnection. Additionally, a measurement of the protective conductor resistance allows for checking the continuity of conductors and connections. A graphical representation of the wiring helps the operator perform measurements accurately.
The electrical tester offers a user-friendly interface, clear display elements, and a robust construction to meet the requirements in various environments. By complying with international standards, it ensures a safe and reliable assessment of electrical installations according to the highest industry standards.

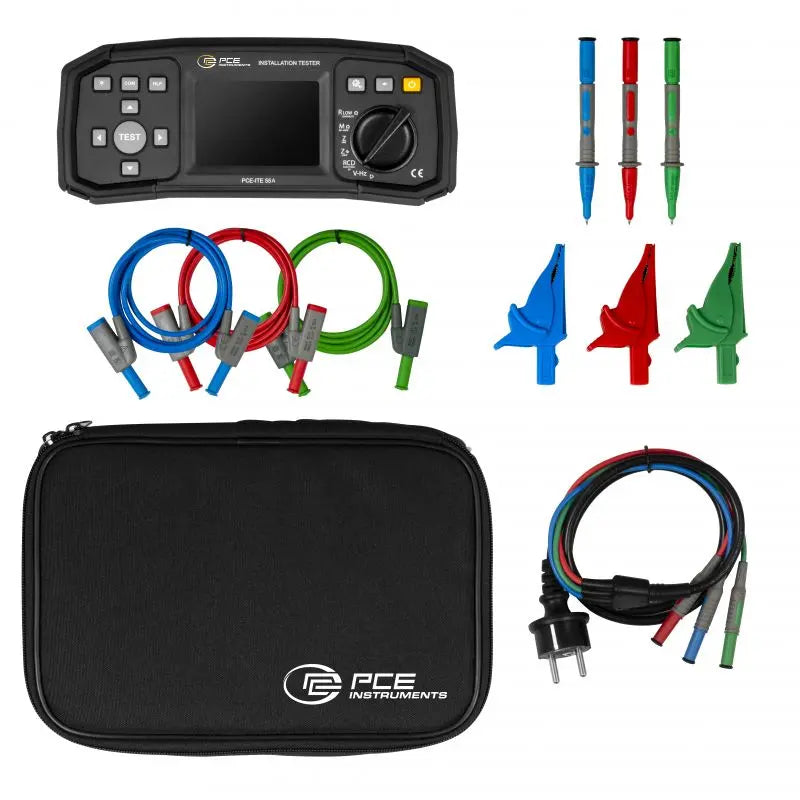

Delivery Scope
