| * The minimum load is defined as the load against which the scale calibration is checked | |||||||||||||||||||||||||||||||
| Calibration category | M III (delivered calibrated) | ||||||||||||||||||||||||||||||
| Piece counter function | measurement with reference values | ||||||||||||||||||||||||||||||
| TARE function | 100% | ||||||||||||||||||||||||||||||
| Outputs |
optionally 2-way RS-232, USB, LAN datasheet on interface Analog output 4-20 mA, 0-10, OC |
||||||||||||||||||||||||||||||
| Display | LED with 20 mm digit height | ||||||||||||||||||||||||||||||
| Power supply | ~230V, 50Hz, 8VA (schuko plug) | ||||||||||||||||||||||||||||||
| Sealing class | IP 67 (Waterproof) / Display IP65 (Waterproof) | ||||||||||||||||||||||||||||||
| Operating temperature | -10 °C ... +40 °C | ||||||||||||||||||||||||||||||
| Weight |
platform 400 x 500 x 120 mm : 17 kg platform 600 x 500 x 135 mm : 25 kg |
||||||||||||||||||||||||||||||

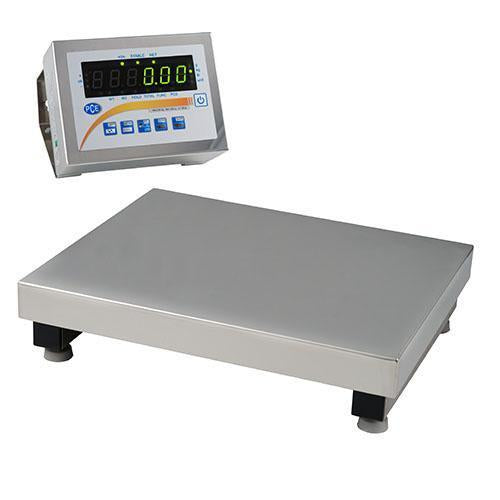

Calibrated waterproof bench scale made entirely of stainless steel / weighing range up to 300 kg / Sealing class IP67 - Display IP65
The waterproof bench scale PCE-SD is a multifunction precision scale. The scale calibration is performed according to the calibration instructions of Class M III.
The weighing platform is fully waterproof with an IP67 sealing class, allowing cleaning, while the display unit has a housing with an IP65 sealing class, equally waterproof. Optionally, to connect the scale to a device, the user can purchase cables e.g. RS-232, RS-485, USB, LAN, OC contacts, analog outputs 4-20 mA or 0-10 V.
- Calibrated according to calibration class MIII
- Fully made of stainless steel IP67-IP65
- Piece counter
- Summation function
- Max, Min function
- Percentage weighing display
- Formula weighting
- Statistical function
- Animal weighing function
- Mixed/net weight measurement function
- Tare data storage
- Limit measurements MIN / MAX / OK
- 3 potential-free contacts (optional)
- Optional analog outputs (4-20 mA / 0-10 V)
- Fully made of stainless steel IP67-IP65
- Piece counter
- Summation function
- Max, Min function
- Percentage weighing display
- Formula weighting
- Statistical function
- Animal weighing function
- Mixed/net weight measurement function
- Tare data storage
- Limit measurements MIN / MAX / OK
- 3 potential-free contacts (optional)
- Optional analog outputs (4-20 mA / 0-10 V)
Package contents
1 x Waterproof bench scale PCE-SD
1 x Screen device
1 x Instruction manual
1 x Screen device
1 x Instruction manual
IP Protection
IPXY
-
X = Protection against solid objects & access to hazardous parts
-
Y = Protection against water ingress
| Value | 1st Digit – Solids / Access | 2nd Digit – Water |
|---|---|---|
| 0 | No protection | No protection |
| 1 | Protection against solids ≥50 mm (test probe Ø50 mm) | Vertical falling drops |
| 2 | Protection against solids ≥12.5 mm (test probe Ø12.5 mm) | Drops with tilt up to 15° |
| 3 | Protection against solids ≥2.5 mm (test probe Ø2.5 mm) | Spraying up to 60° |
| 4 | Protection against solids ≥1 mm (test probe Ø1 mm) | Splashing from all directions |
| 5 | Protection against dust (limited ingress without harmful effects) | Water jets (nozzle 6.3 mm) |
| 6 | Complete dust-tightness (dust-tight) | Powerful water jets (nozzle 12.5 mm) |
| 7 | — | Temporary immersion (usually 1 m / 30 min) |
| 8 | — | Continuous immersion (depth & time specified by manufacturer) |
| 9 / 9K | — | High-pressure & high-temperature water jets |
| Code | Max Weight | Reading | Dimensions | Availability | Price excl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|---|
| PCE-SD 30SST C | 30 | 10 | 400 x 500 mm | On Order |
€1.528,00
|
||
| PCE-SD 60SST C | 60 | 20 | 400 x 500 mm | On Order |
€1.555,00
|
||
| PCE-SD 150SST C | 150 | 50 | 600 x 500 mm | On Order |
€1.770,00
|
||
| PCE-SD 300SST C | 300 | 100 | 600 x 500 mm | On Order |
€1.757,00
|
