Portable Leeb Rebound Hardness Tester
- Leeb rebound measurement
- For metallic materials
- Vickers, Rockwell, Brinell, Leeb, Shore, tensile
- Backlit colour display
- Memory for 6 x 100 measurement sets
Availability & price
| Code | Range | Availability | excl. VAT | incl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|
| PCE-2900 | 170 ... 960 HLD |
€1.930,00
|
€2.393,20
|
= Express from Europe: at our premises in 1-2 working days, from €35 + VAT Express from Europe, from €35 + VAT
- Leeb rebound measurement
- For metallic materials
- Vickers, Rockwell, Brinell, Leeb, Shore, tensile
- Backlit colour display
- Memory for 6 x 100 measurement sets
- USB and WiFi

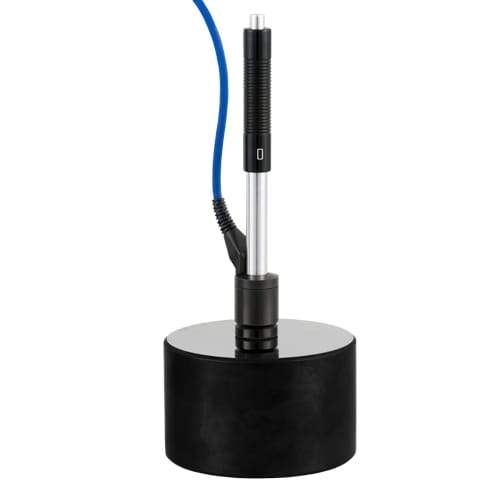

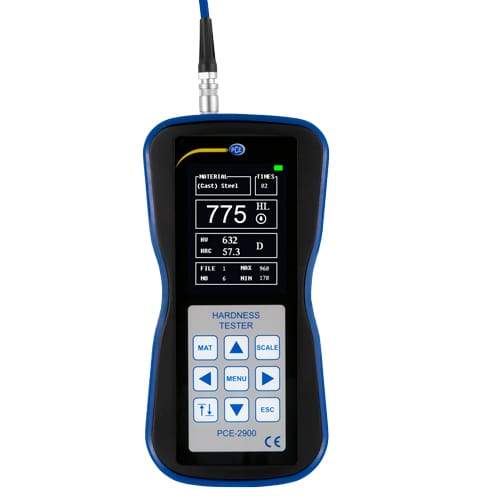

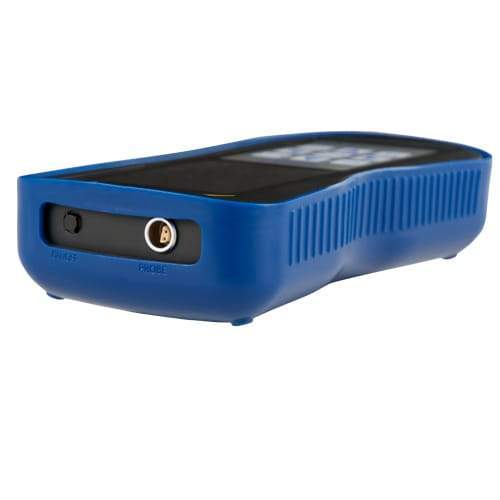

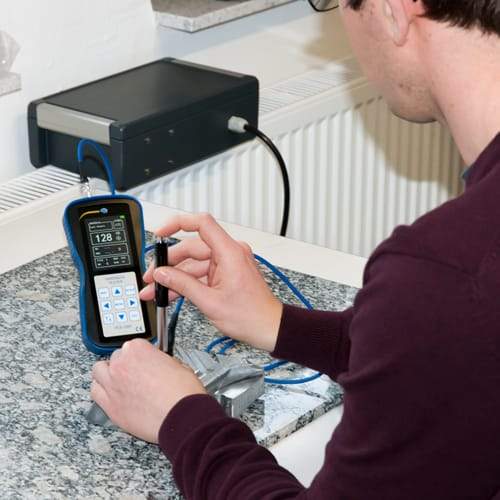

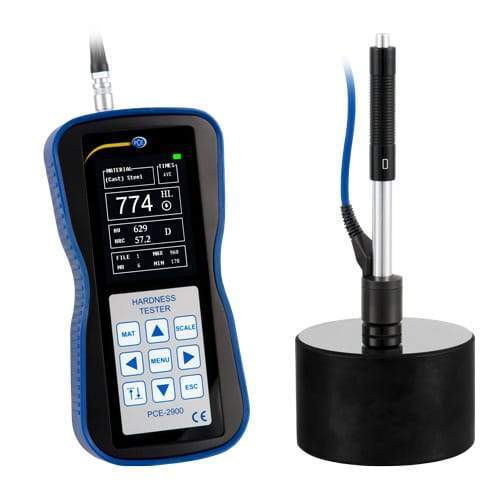

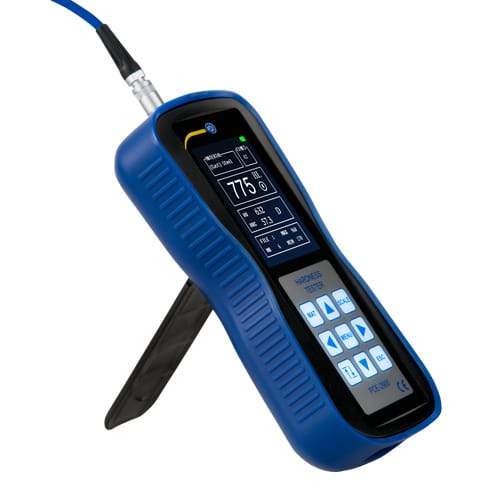

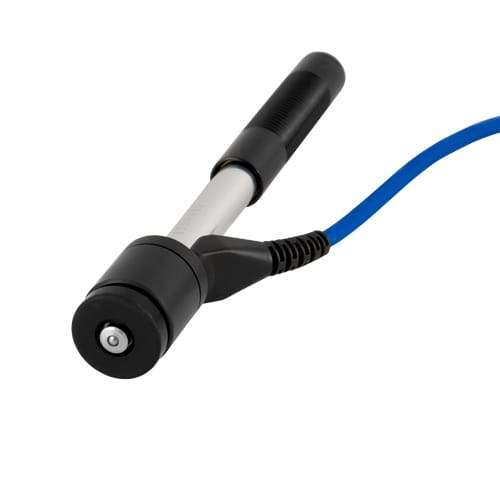

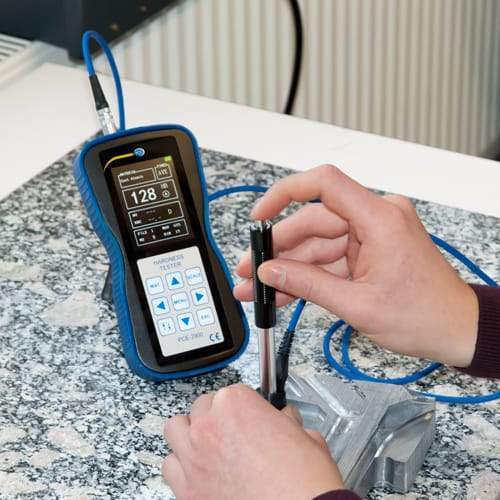

The PCE-2900 is a portable hardness tester for metallic materials. It shows hardness in Vickers, Brinell, Rockwell, Leeb and Shore. It uses the Leeb rebound principle: a firing pin fires an impactor onto the workpiece, and the hardness is calculated from its rebound. The impact device connects to the meter by cable.

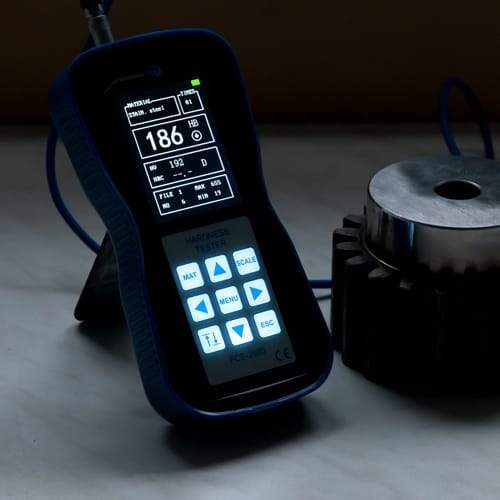

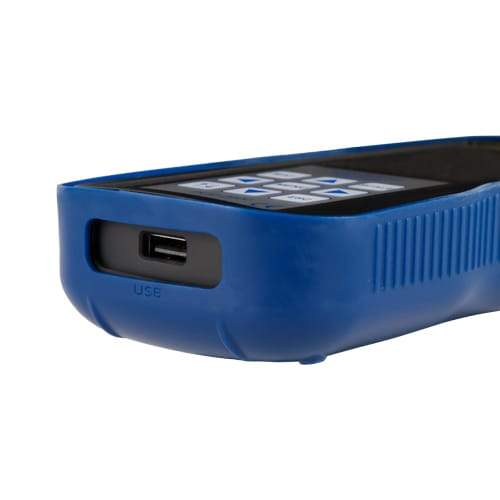

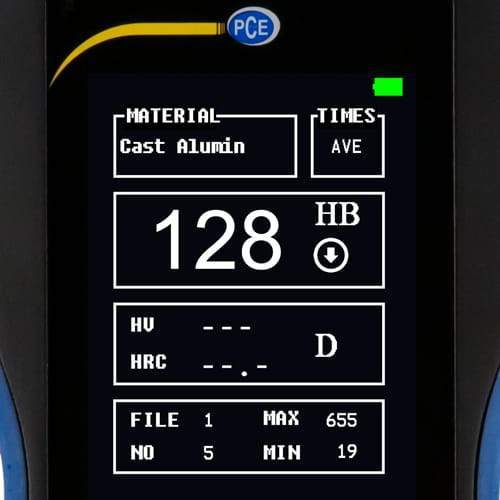

The colour display is backlit and the buttons are illuminated, so readings are easy to see in low light. The internal memory stores 6 x 100 measurement sets for documenting results. Data can be transferred to a PC via USB or WiFi using software. The tester runs on standard 1.5V AA batteries for about 50 hours.
Highlights
- USB and WiFi data transfer
- Large, bright colour touch-screen LCD
- Large measuring range
- Measures in any position
- Hardness scales HRC, HRB, HV, HB, HS
- For all metallic materials
- Internal memory for 6 x 100 measurement sets
| Hardness | |
|---|---|
| Measuring range | 170 ... 960 HLD |
| Resolution | 1 HLD |
| Accuracy | ± 0.5% |
| General technical data | |
| Measuring principle | Rebound method |
| Measuring direction | 360 ° |
| Display type | LC colour display |
| Display size | 2,8 Inch |
| Storage medium | Internal memory |
| Storage capacity | 600 Data records |
| Interface | USB, WiFi |
| Materials | Steel, Cast steel, Stainless steel, Spheroidal graphite cast iron, Grey cast iron, Brass, Bronze, Copper, Aluminium, alloy steel |
| Operating time | 50 h |
| Automatic power-off from...to | 1 ... 15 min. |
| Reproducibility | ±6 HLD |
| Impact device | D-type |
| Hardness scales | HL, HB, HRA, HRB, HRC, HV, HS |
| Minimum mass of the sample | Direct measurement: 5 kg Connected measurement: 2 ... 5 kg With coupling gel: 0.05 ... 2 kg |
| Minimum thickness of the sample | Direct measurement: > 5mm With coupling gel: 0.8 ... 5 mm |
| Menu language | English, German, Chinese |
| Protection class (device) | IP20 |
| Battery | 2 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 2970 mAh |
| Operating conditions | 10 ... 50 °C , 0 ... 90 % RH |
| Storage conditions | -30 ... 60 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 160 x 80 x 35 mm |
| Weight | 350 g |

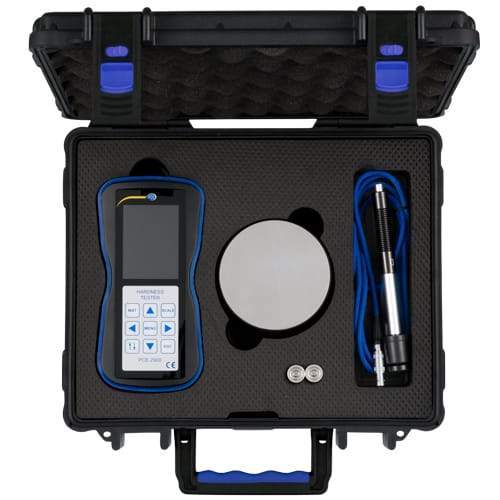

- 1×Hardness Tester PCE-2900
- 1×Impactor D
- 1×Test block
- 2×1.5V AA batteries
- 1×User manual
- 1×Carry case
