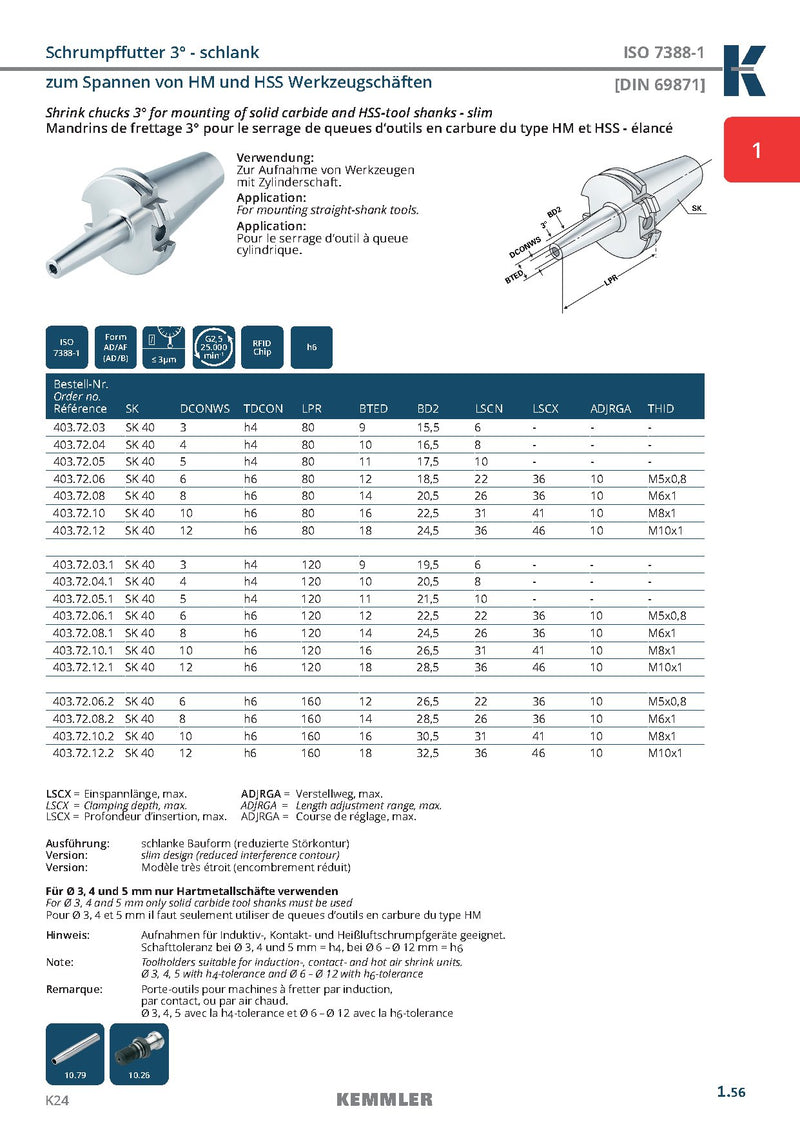

Specifications
- Type: 3° shrink fit chuck (slim design / reduced interference contour)
- Taper: SK (steep taper)
- Application: clamping straight-shank tools (solid carbide HM and HSS)
- Standards: ISO 7388-1, DIN 69871
- Accuracy: ≤ 3 μm
- Balancing: G2.5 at 25,000 min-1
- RFID: RFID chip
- Clamping bore tolerance (TDCON): h4 for Ø 3/4/5 mm, h6 for Ø 6–12 mm
- Usage note: for Ø 3, 4 and 5 mm, only solid carbide (HM) tool shanks must be used
- Heating compatibility: suitable for induction, contact, and hot-air shrink units
Description

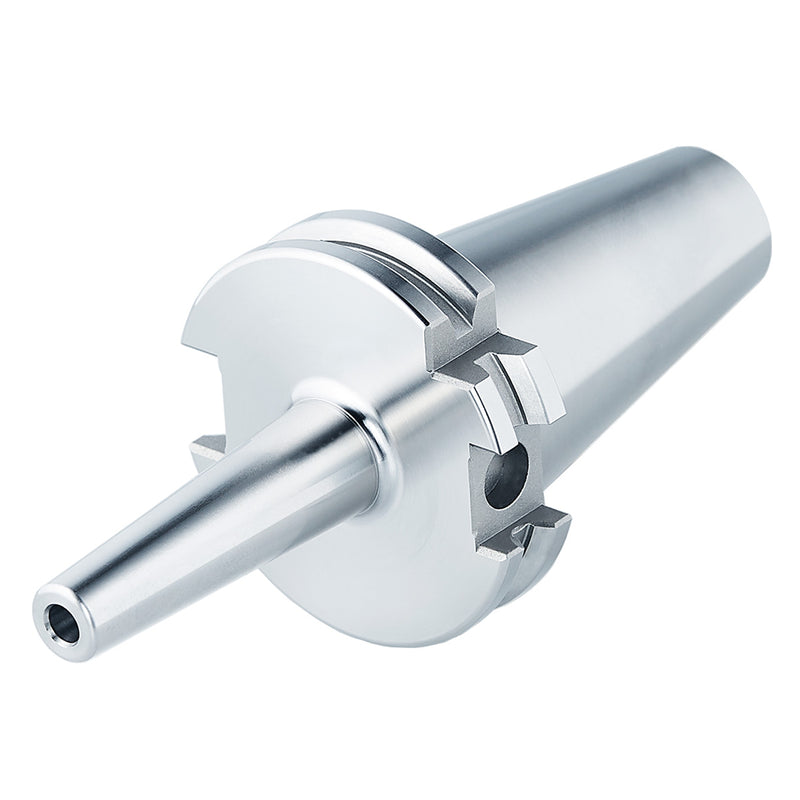

The Kemmler SK Shrink Fit (Slim) is a 3° thermal shrink chuck for holding straight-shank cutting tools (HM and HSS) on SK steep-taper spindles according to ISO 7388-1 / DIN 69871. The slim body reduces the interference contour to improve access in tight machining areas. It is used with shrink heating units (induction, contact, or hot-air) to achieve secure tool clamping and high runout accuracy.

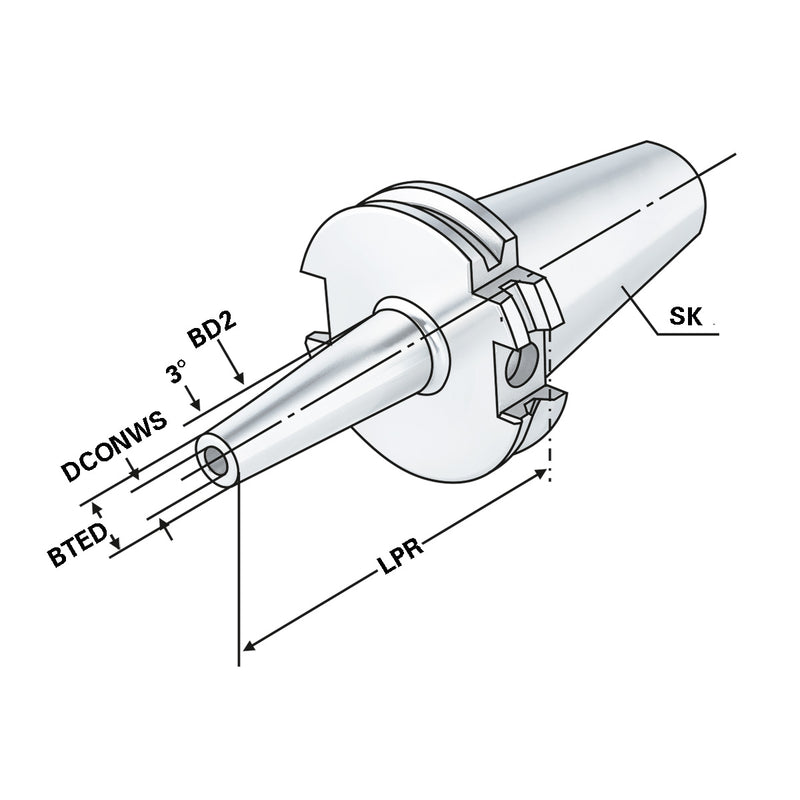

| Code | Taper | DCONWS mm | LPR mm | Availability | Price excl. VAT | Cart |
|---|---|---|---|---|---|---|
| KE-403.72.03 | SK 40 | 3 | 80 |
1 month
Αποθήκη Kemmler: 86 available.
Estimated delivery 5–8 business days.Details
Αποθήκη Kemmler: 86 available.
Estimated delivery 5–8 business days.
|
€129,00
|
|
| KE-403.72.03.1 | SK 40 | 3 | 120 |
1 month
Αποθήκη Kemmler: 134 available.
Estimated delivery 5–8 business days.Details
Αποθήκη Kemmler: 134 available.
Estimated delivery 5–8 business days.
|
€159,00
|
|
| KE-403.72.04 | SK 40 | 4 | 80 |
1 month
Αποθήκη Kemmler: 94 available.
Estimated delivery 5–8 business days.Details
Αποθήκη Kemmler: 94 available.
Estimated delivery 5–8 business days.
|
€129,00
|
|
| KE-403.72.04.1 | SK 40 | 4 | 120 |
1 month
Αποθήκη Kemmler: 134 available.
Estimated delivery 5–8 business days.Details
Αποθήκη Kemmler: 134 available.
Estimated delivery 5–8 business days.
|
€159,00
|
|
| KE-403.72.05 | SK 40 | 5 | 80 |
1 month
Αποθήκη Kemmler: 68 available.
Estimated delivery 5–8 business days.Details
Αποθήκη Kemmler: 68 available.
Estimated delivery 5–8 business days.
|
€129,00
|
|
| KE-403.72.05.1 | SK 40 | 5 | 120 |
1 month
Αποθήκη Kemmler: 77 available.
Estimated delivery 5–8 business days.Details
Αποθήκη Kemmler: 77 available.
Estimated delivery 5–8 business days.
|
€159,00
|
|
| KE-403.72.06 | SK 40 | 6 | 80 |
1 month
Αποθήκη Kemmler: 114 available.
Estimated delivery 5–8 business days.Details
Αποθήκη Kemmler: 114 available.
Estimated delivery 5–8 business days.
|
€109,00
|
|
| KE-403.72.06.1 | SK 40 | 6 | 120 |
1 month
Αποθήκη Kemmler: 141 available.
Estimated delivery 5–8 business days.Details
Αποθήκη Kemmler: 141 available.
Estimated delivery 5–8 business days.
|
€135,00
|
|
| KE-403.72.06.2 | SK 40 | 6 | 160 |
1 month
Αποθήκη Kemmler: 65 available.
Estimated delivery 5–8 business days.Details
Αποθήκη Kemmler: 65 available.
Estimated delivery 5–8 business days.
|
€197,00
|
|
| KE-403.72.08 | SK 40 | 8 | 80 |
1 month
Αποθήκη Kemmler: 109 available.
Estimated delivery 5–8 business days.Details
Αποθήκη Kemmler: 109 available.
Estimated delivery 5–8 business days.
|
€109,00
|
|
| KE-403.72.08.1 | SK 40 | 8 | 120 |
1 month
Αποθήκη Kemmler: 132 available.
Estimated delivery 5–8 business days.Details
Αποθήκη Kemmler: 132 available.
Estimated delivery 5–8 business days.
|
€135,00
|
|
| KE-403.72.08.2 | SK 40 | 8 | 160 |
1 month
Αποθήκη Kemmler: 48 available.
Estimated delivery 5–8 business days.Details
Αποθήκη Kemmler: 48 available.
Estimated delivery 5–8 business days.
|
€197,00
|
|
| KE-403.72.10 | SK 40 | 10 | 80 |
1 month
Αποθήκη Kemmler: 114 available.
Estimated delivery 5–8 business days.Details
Αποθήκη Kemmler: 114 available.
Estimated delivery 5–8 business days.
|
€109,00
|
|
| KE-403.72.10.1 | SK 40 | 10 | 120 |
1 month
Αποθήκη Kemmler: 57 available.
Estimated delivery 5–8 business days.Details
Αποθήκη Kemmler: 57 available.
Estimated delivery 5–8 business days.
|
€135,00
|
|
| KE-403.72.10.2 | SK 40 | 10 | 160 |
1 month
Αποθήκη Kemmler: 72 available.
Estimated delivery 5–8 business days.Details
Αποθήκη Kemmler: 72 available.
Estimated delivery 5–8 business days.
|
€197,00
|
|
| KE-403.72.12 | SK 40 | 12 | 80 |
1 month
Αποθήκη Kemmler: 65 available.
Estimated delivery 5–8 business days.Details
Αποθήκη Kemmler: 65 available.
Estimated delivery 5–8 business days.
|
€109,00
|
|
| KE-403.72.12.1 | SK 40 | 12 | 120 |
1 month
Αποθήκη Kemmler: 113 available.
Estimated delivery 5–8 business days.Details
Αποθήκη Kemmler: 113 available.
Estimated delivery 5–8 business days.
|
€135,00
|
|
| KE-403.72.12.2 | SK 40 | 12 | 160 |
1 month
Αποθήκη Kemmler: 66 available.
Estimated delivery 5–8 business days.Details
Αποθήκη Kemmler: 66 available.
Estimated delivery 5–8 business days.
|
€197,00
|
