Straight Edges
Ρίγες Επιπεδότητας - Γρανίτης Insize 4147

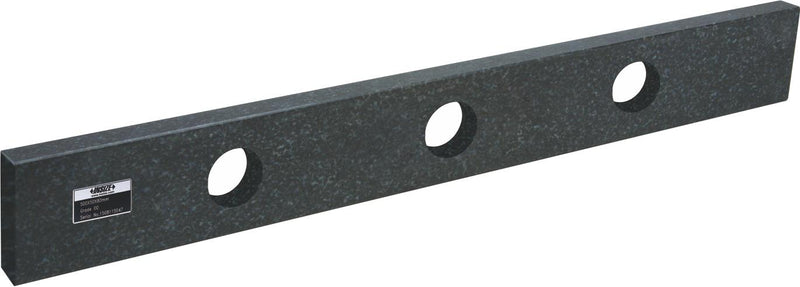

Ρίγα επιπεδότητας γρανίτη Insize 4147, μαύρη ορθογώνια με τρεις οπές λαβής και ετικέτα προδιαγραφών
Τεχνικά χαρακτηριστικά 4147 - Ρίγες Επιπεδότητας - Γρανίτης
Ρίγες Επιπεδότητας - Γρανίτης Insize 4147
Ρίγα επιπεδότητας γρανίτη Insize 4147, μαύρη ορθογώνια με τρεις οπές λαβής και ετικέτα προδιαγραφών
Τεχνικά χαρακτηριστικά 4147 - Ρίγες Επιπεδότητας - Γρανίτης

Availability & price

2 codes

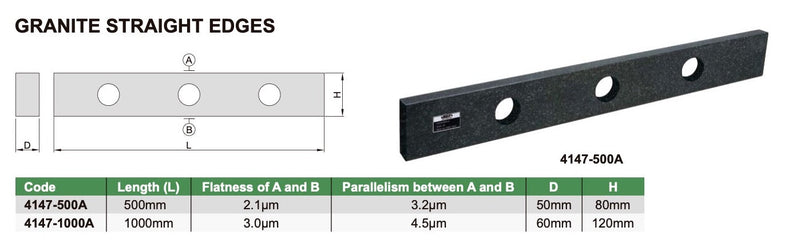

Code Length (mm)Width (mm)Thickness (mm) Flatness Parallelism Availability excl. VATincl. VAT Certificate Cart
4147-500A 500 80 50 0.0021 0.0032 On Order
€452,00
€560,48
0
4147-1000A 1000 120 60 0.0031 0.0045
€958,00
€1.187,92
0
For a calibration certificate according to 17025, request a quote
Datasheet Technical datasheet Catalog Full manufacturer catalog
Insize

Official distributor

Insize

INSIZE was founded in 1995 and is one of the world's leading manufacturers of measuring instruments and metrological equipment. With factories in China and other Asian countries, as well as production units in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability and reliability, while being distinguished by their excellent quality-price ratio.

This product belongs to the collection

Straight Edges

You're viewing one product from this category. Browse the full range.

11 products
View all

Related categories

All categories →
Surface Plates24 products Sine Tables8 products
Flatness Stripes

From our Wiki

Flatness Stripes

The straight edges (straight edges) are standard inspection tools used to verify the straightness and flatness of large surfaces. Unlike common rulers, straight edges focus on the edge accuracy of their working edge, which serves as an absolute reference guide for identifying deviations and waviness.

  • Types: They are classified into straight edges with a rectangular cross-section and knife-edge straight edges (knife-edge) for high-precision checks using the light-gap method.
  • Materials: They are made from special tool steel, cast iron, or black granite for maximum thermal stability.
  • Applications: Essential in machine grinding, machine tool assembly, and engine maintenance (cylinder head inspection).
Read the guide
