- Range: 0.8-300 mm
- Reading: 0.01 mm (range <100 mm), 0.1 mm (range ≥ 100 mm)
- Repeatability: 0.03 mm (range <100 mm), 0.1 mm (range ≥ 100 mm)
- Accuracy: ±0.04 mm (range <10 mm), ±(0.04+H/1000) mm (range 10-100 mm), ±H/333 mm (range ≥ 100 mm), H: thickness to be measured in mm
- Measures thickness from one side of the object, suitable for pipe, tank, etc.
- Applicable material: metal, plastic, glass, nylon, resin, ceramic, rubber, ice
- Minimum pipe size for measurement: Ø20 mm x 1.2 mm (diameter x wall thickness)
- Operating temperature: <60ºC
- Speed: 1000-9999 m/s
- Power supply: 2 x AAA batteries
- Dimensions: 114 x 64 x 28 mm
- Weight: 200 g
| Code | Range | Reading | Ø Probe | Availability | Price excl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|---|
| ISU-100D | 0.8-300 | 0.01 | Ø 10.8 mm |
€498,00
|
ISU-ST
Standard Pads for Ultrasonic Calipers
Translation missing: en.product_price.item.price.range_html
Original price
€0,00
From €291,00€360,84
From €291,00€360,84
Current price
€291,00€360,84
5-8 Working days

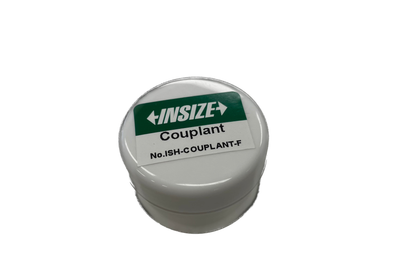

ISH-COUPLANT
Gel for Ultrasonic Calipers 25 ml
Translation missing: en.product_price.item.price.range_html
Original price
€0,00
€13,00€16,12
From €13,00€16,12
Current price
€13,00€16,12
Available

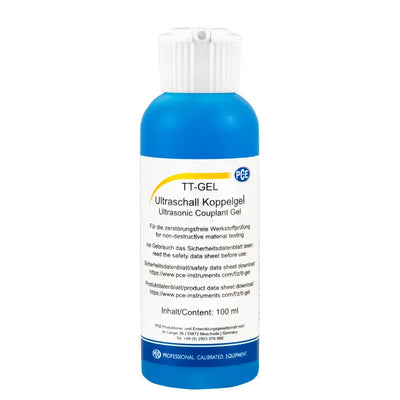

TT-GEL
Gel for Ultrasonic Calipers 100 ml
Translation missing: en.product_price.item.price.range_html
Original price
€0,00
€23,80€29,51
From €23,80€29,51
Current price
€23,80€29,51
Available
Ultrasound gel for use with ultrasonic contact form tools- Improves contact between the form tool head and the mater...
View full details
U-GEL-250
Gel for General Purpose Ultrasonic Calipers 250 ml
Translation missing: en.product_price.item.price.range_html
Original price
€0,00
€1,90€2,36
From €1,90€2,36
Current price
€1,90€2,36
Available
