| Sensor PCE-TG-P5EE | |
| Measuring range | PE: 2 ... 600 [mm] / 0.078 ... 23.62", EE: 2.5 ... 100 [mm] / 0.098 ...3.937" |
|
Minimum pipe diameter |
20 x 3 [mm] / 0.787 ... 0.118" |
| Frequency | 5 MHz |
| Diameter | 10 [mm] / 0.39" |
| Description | standard measurement and EE test |
| Device PCE-TG 300-P5EE | |
| Measuring range | PE: pulse echo operation 0.65 ... 600 [mm] / 0.025 ... 23.62" (steel) |
| EE: Echo-Echo operation 2.50 ... 100 [mm] / 0.098 ... 2.36" | |
| Accuracy | ±0.04 mm H[mm] (<10 mm), ±0.4 % H[mm] (>10 mm) |
| H refers to the thickness of the workpiece material | |
| Reading | 0.1 mm / 0.01 mm / 0.001 mm (adjustable) |
| Measurable materials | metals |
| plastics | |
| ceramics | |
| epoxy resin | |
| glass | |
| and all homogeneous materials | |
| Operating modes | Pulse echo mode (error and void detection) |
| Echo-echo mode (hiding layer thickness, e.g. paint) | |
| Calibration | speed of sound calibration |
| zero calibration | |
| two-point calibration | |
| Display function | Normal mode, Scan mode, Difference mode |
| Units | mm / in |
| Data transfer | printing via Bluetooth / USB 2.0 |
| Memory | non-volatile memory with 100 data groups with 100 data sets each |
|
Operating time |
continuous operation 100 h |
| automatic standby function (adjustable) | |
| automatic power-off function (adjustable) | |
| Power supply | 4 x AA 1.5 V batteries |
| Display | Color TFT LCD 320 x 240 pixels with brightness adjustment |
| Operating conditions | 0 ... +50 °C / 32 ... 122 °F, ≤80 % RH without condensation |
| Storage conditions | -20 ... +70 °C / -4 ... 158 °F, ≤80 % RH without condensation |
| Dimensions | 185 x 97 x 40 mm / 7.2 x 3.8 x 1.5" |
| Weight | 375 g / 13.2 oz |
Gauge ultrasonic thickness
Large measuring range / Up to 600 [mm] / Pulse-echo or echo-echo operation / For all homogeneous materials / Printing function via Bluetooth connection and data transfer via USB
Large measuring range / Up to 600 [mm] / Pulse-echo or echo-echo operation / For all homogeneous materials / Printing function via Bluetooth connection and data transfer via USB
The PCE-TG 300-P5EE is an ultrasonic thickness gauge with special sensors for various applications. A 90° angled sensor also allows measurements in hard-to-reach measuring points. The sound velocity can be freely adjusted on the thickness gauge and thus adapted to a wide variety of homogeneous materials.
The measured values are displayed directly on the easy-to-read color TFT display. Due to the internal memory, which can be read via the optionally available software, 100 data sets with 100 measurements each can be stored. The non-destructive ultrasonic measurement method allows measurement even on finished products. Thanks to the Echo-Echo function, even coated surfaces can be measured.
- Large measuring range
- Various sensors available
- Battery operation
- Error and gap detection
- Internal measurement data memory
- Bluetooth printing
Package contents
1 x PCE-TG 300-P5EE ultrasonic thickness gauge
1 x PCE-TG-P5EE sensor
1 x 100 ml coupling gel
1 x Carrying case
4 x AA batteries
1 x User manual
1 x PCE-TG-P5EE sensor
1 x 100 ml coupling gel
1 x Carrying case
4 x AA batteries
1 x User manual
| Code | Availability | Price excl. VAT | Certificate | Cart |
|---|---|---|---|---|
| PCE-TG 300-P5EE | On Order |
€1.433,00
|

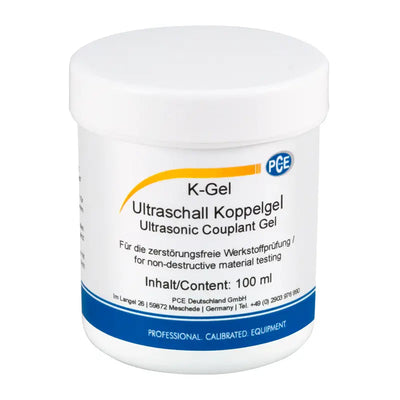

K-Gel
