Specifications
- Test applications: tensile, compression, bend, shear tests for metal and non-metal materials
- Accuracy: ±1%
- Test force measurement range: 2%~100%FS
- Test force measurement resolution: 1/300000 of max. test force (same resolution across the full range)
- Deformation measurement device: extensometer
- Deformation measurement range: 1%~100%FS
- Deformation measurement accuracy: ±1%
- Deformation measurement resolution: 1/300000
- Displacement accuracy: ±1%
- Displacement resolution: 0.01mm
- Transmission mode: chain drive
- Safety protection device: software protection and mechanical limit protection
- Control function: special software, closed-loop control of stress, strain and velocity
- Power supply: 380V, 50Hz
Description

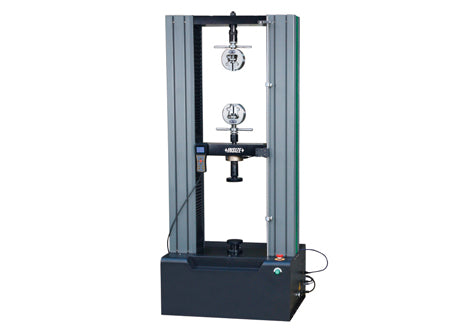

Hydraulic Universal Testing Machines are hydraulic universal test systems used to evaluate mechanical properties of materials in laboratory and industrial environments. They perform tensile, compression, bending, and shear tests, measuring force, displacement, and deformation (via extensometer) with software-based closed-loop control.
| Code | Range | Availability | Price excl. VAT | Cart |
|---|---|---|---|---|
| UTM-H300B | 300 kN | On Order |
€39.014,00
|
|
| UTM-H600B | 600 kN | On Order |
€42.911,00
|
