Straight Edges

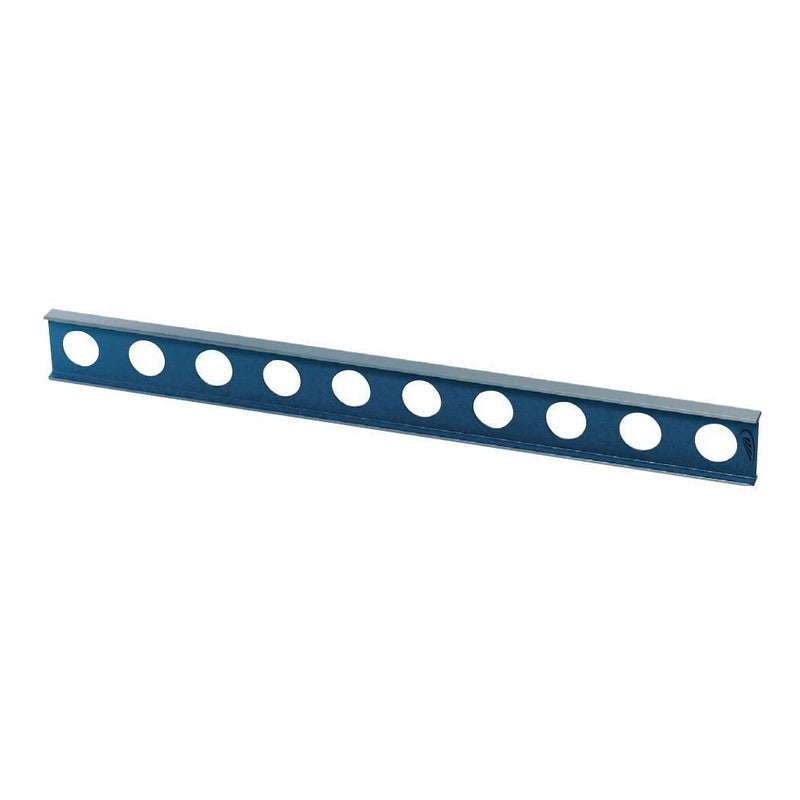

Straightedges - Steel - GG0 - GG1
Technical specifications 0467 - Straight Edges - Steel - GG0 - GG1
Straightedges - Steel - GG0 - GG1
Technical specifications 0467 - Straight Edges - Steel - GG0 - GG1

Availability & price

14 codes

Code Length (mm)Width (mm)Thickness (mm) Grade Availability excl. VATincl. VAT Certificate Cart
Grade GG 1
0467111 1000 100 30 GG 1 Upon Request
€564,00
€699,36
0
0467112 1500 100 30 GG 1 Upon Request
€756,00
€937,44
0
0467113 2000 120 40 GG 1 Upon Request
€1.001,00
€1.241,24
0
0467114 2500 120 40 GG 1 Upon Request
€1.362,00
€1.688,88
0
0467115 3000 140 40 GG 1 Upon Request
€1.835,00
€2.275,40
0
0467116 4000 140 40 GG 1 From Germanyshipping quoted separately
€2.415,00
€2.994,60
0
0467117 5000 140 40 GG 1 From Germanyshipping quoted separately
€3.826,00
€4.744,24
0
Grade GG 0
0467011 1000 160 50 GG 0 Upon Request
€762,00
€944,88
0
0467012 1500 160 50 GG 0 Upon Request
€1.078,00
€1.336,72
0
0467013 2000 160 50 GG 0 Upon Request
€1.400,00
€1.736,00
0
0467014 2500 160 50 GG 0 Upon Request
€1.803,00
€2.235,72
0
0467015 3000 180 60 GG 0 Upon Request
€3.018,00
€3.742,32
0
0467016 4000 180 60 GG 0 From Germanyshipping quoted separately
€4.194,00
€5.200,56
0
0467017 5000 200 80 GG 0 From Germanyshipping quoted separately
€7.281,00
€9.028,44
0
  • Standard DIN 874 sheet 1
  • Special steel
  • Tolerance 21 μm
Datasheet Technical datasheet
Preisser

Official distributor

Preisser

This product belongs to the collection

Straight Edges

You're viewing one product from this category. Browse the full range.

11 products
View all

Related categories

All categories →
Surface Plates24 products Sine Tables8 products
Flatness Stripes

From our Wiki

Flatness Stripes

The straight edges (straight edges) are standard inspection tools used to verify the straightness and flatness of large surfaces. Unlike common rulers, straight edges focus on the edge accuracy of their working edge, which serves as an absolute reference guide for identifying deviations and waviness.

  • Types: They are classified into straight edges with a rectangular cross-section and knife-edge straight edges (knife-edge) for high-precision checks using the light-gap method.
  • Materials: They are made from special tool steel, cast iron, or black granite for maximum thermal stability.
  • Applications: Essential in machine grinding, machine tool assembly, and engine maintenance (cylinder head inspection).
