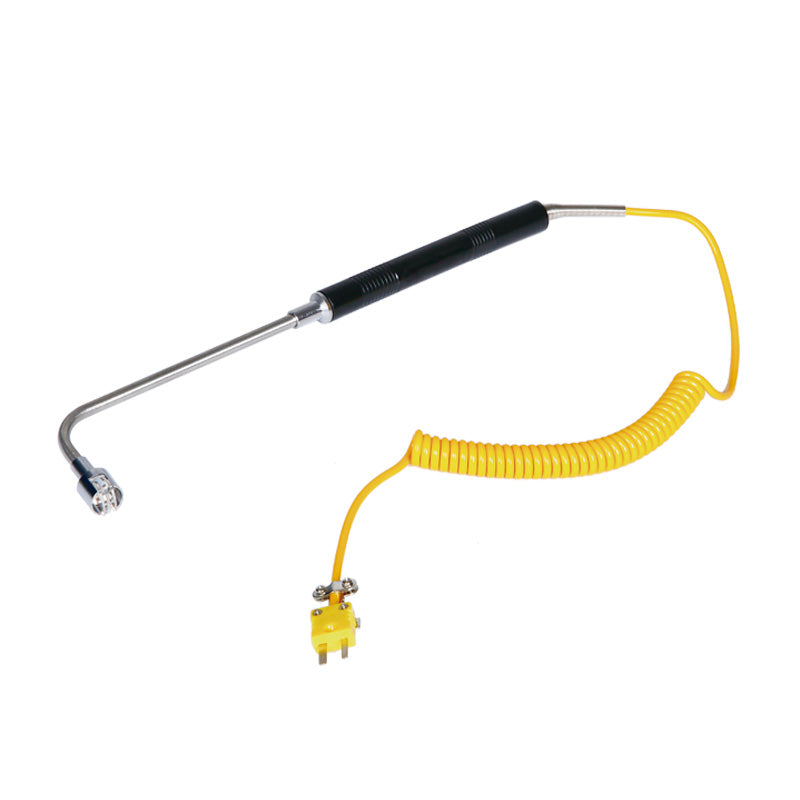

K-Type Surface Thermocouple Right-Angle 155mm -40~400°C
- Thermocouple type: K
- Sensing element material: Ni-Cr / Ni-Al
- Temperature range: -40°C ~ 400°C
- Accuracy: ±2.5°C (-40°C ~ 150°C), ±2% (150°C ~ 400°C)
- Sensor: reticulate, Ø15 mm
- Stem: right-angle, 155 mm
- Handle: 128 mm
- Lead: polyurethane (PUP) coiled cable, extends up to 1.2 m
- Connection: type K plug
Same-day dispatchfor orders placed by 15:00
Free shippingon orders over €80 (incl. VAT)
Availability & price
| Code | Range | Availability | excl. VAT | incl. VAT | Cart |
|---|---|---|---|---|---|
| 0760-SK01 | -40°C ~ 400°C | On Order |
€59,00
|
€73,16
|

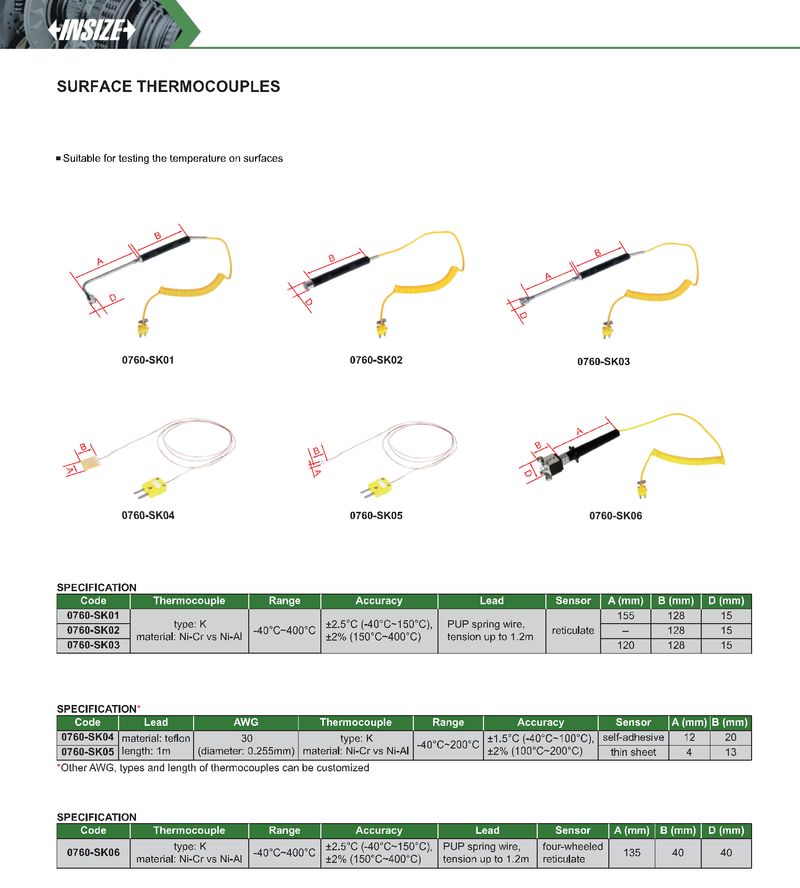

Specifications
- Thermocouple type: K
- Sensing element material: Ni-Cr / Ni-Al
- Temperature range: -40°C ~ 400°C
- Accuracy: ±2.5°C (-40°C ~ 150°C), ±2% (150°C ~ 400°C)
- Sensor: reticulate, Ø15 mm
- Stem: right-angle, 155 mm
- Handle: 128 mm
- Lead: polyurethane (PUP) coiled cable, extends up to 1.2 m
- Connection: type K plug
Description
Type K surface thermocouple with a 155 mm right-angle stem. The reticulate sensor sits perpendicular to the handle so it lies flat against the surface while the hand stays in a comfortable position — useful on horizontal surfaces and where there is limited clearance above the measuring point.
The reticulate sensor conforms to surface roughness and increases the contact area for faster response. The coiled cable extends up to 1.2 m.
- Measurements on horizontal surfaces and plates
- Points with limited access from above
- Temperature checks on moulds and machinery
