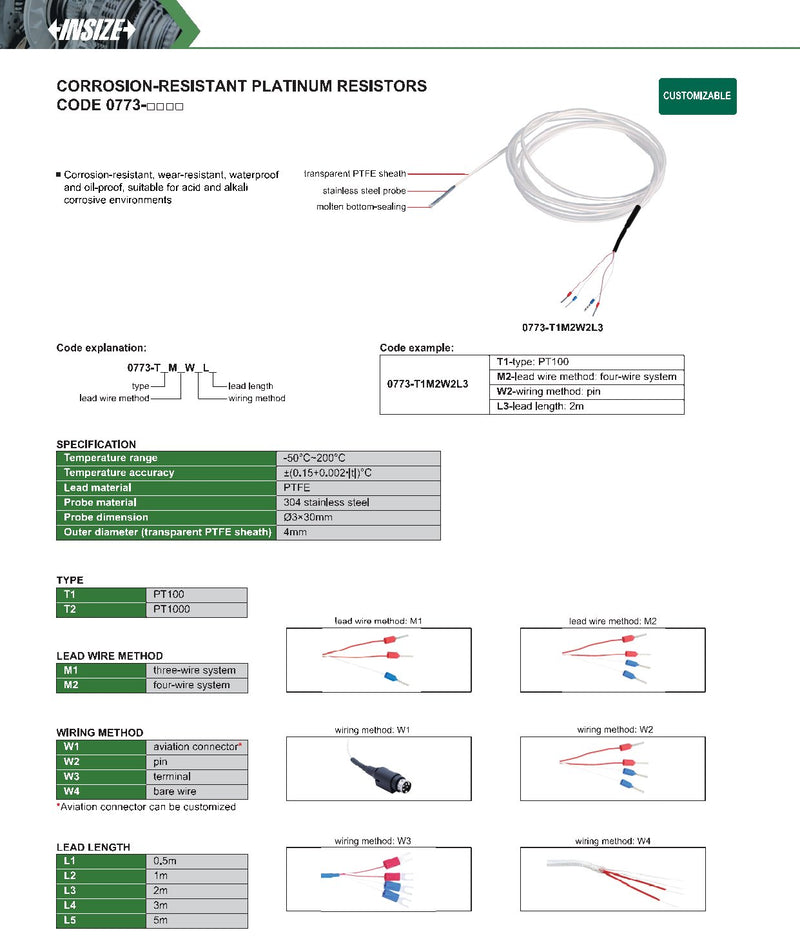

Specifications
- Sensing element: PT100 or PT1000 (platinum)
- Temperature range: -50°C ~ 200°C
- Accuracy: ±(0.15 + 0.002·|t|) °C
- Probe: 304 stainless steel, Ø3 × 30 mm
- Sheath: transparent PTFE, 4 mm outer diameter
- Sealing: molten bottom-sealing at the tip
- Lead material: PTFE
- Wiring system: three-wire
- Available lead lengths: 0.5, 1, 2, 3 and 5 m
Description

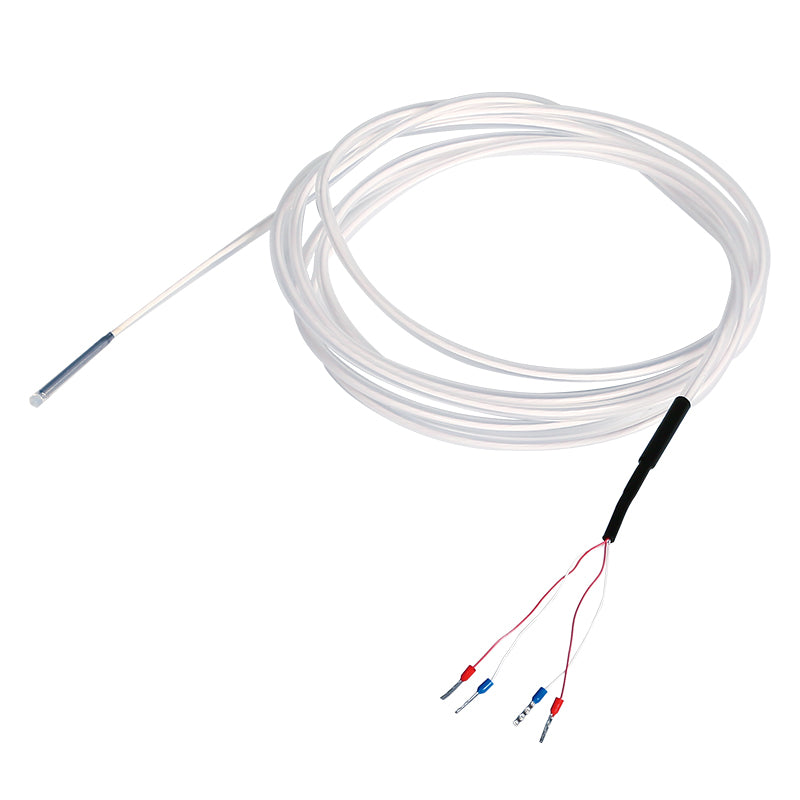

Platinum temperature sensor with a stainless steel tube probe and a transparent PTFE sheath, molten-sealed at the tip. It is corrosion and wear resistant, water and oil resistant, and suitable for acid and alkali environments.
Compared with a thermocouple, a platinum sensor offers higher accuracy and stability. Available as PT100 or PT1000, with a three-wire system, in five lead lengths from 0.5 m to 5 m.
A four-wire system and an aviation connector are available on request.
- Chemical baths and corrosive solutions
- Surface treatment and electroplating
- Measurements in water, oils and aqueous solutions
| Code | Type | Connection | Lengthm | Availability | Price excl. VAT | Price incl. VAT | Cart |
|---|---|---|---|---|---|---|---|
| 0773-T1M1W2L1 | PT100 | Ακίδα (pin) | 0.5 | On Order |
€77,00
|
€95,48
|
|
| 0773-T1M1W2L2 | PT100 | Ακίδα (pin) | 1 | On Order |
€83,00
|
€102,92
|
|
| 0773-T1M1W2L3 | PT100 | Ακίδα (pin) | 2 | On Order |
€95,00
|
€117,80
|
|
| 0773-T1M1W2L4 | PT100 | Ακίδα (pin) | 3 | On Order |
€107,00
|
€132,68
|
|
| 0773-T1M1W2L5 | PT100 | Ακίδα (pin) | 5 | On Order |
€131,00
|
€162,44
|
|
| 0773-T1M1W3L1 | PT100 | Ακροδέκτης (terminal) | 0.5 | On Order |
€77,00
|
€95,48
|
|
| 0773-T1M1W3L2 | PT100 | Ακροδέκτης (terminal) | 1 | On Order |
€83,00
|
€102,92
|
|
| 0773-T1M1W3L3 | PT100 | Ακροδέκτης (terminal) | 2 | On Order |
€95,00
|
€117,80
|
|
| 0773-T1M1W3L4 | PT100 | Ακροδέκτης (terminal) | 3 | On Order |
€107,00
|
€132,68
|
|
| 0773-T1M1W3L5 | PT100 | Ακροδέκτης (terminal) | 5 | On Order |
€131,00
|
€162,44
|
|
| 0773-T1M1W4L1 | PT100 | Γυμνό καλώδιο | 0.5 | On Order |
€77,00
|
€95,48
|
|
| 0773-T1M1W4L2 | PT100 | Γυμνό καλώδιο | 1 | On Order |
€83,00
|
€102,92
|
|
| 0773-T1M1W4L3 | PT100 | Γυμνό καλώδιο | 2 | On Order |
€95,00
|
€117,80
|
|
| 0773-T1M1W4L4 | PT100 | Γυμνό καλώδιο | 3 | On Order |
€107,00
|
€132,68
|
|
| 0773-T1M1W4L5 | PT100 | Γυμνό καλώδιο | 5 | On Order |
€131,00
|
€162,44
|
|
| 0773-T2M1W2L1 | PT1000 | Ακίδα (pin) | 0.5 | On Order |
€77,00
|
€95,48
|
|
| 0773-T2M1W2L2 | PT1000 | Ακίδα (pin) | 1 | On Order |
€83,00
|
€102,92
|
|
| 0773-T2M1W2L3 | PT1000 | Ακίδα (pin) | 2 | On Order |
€95,00
|
€117,80
|
|
| 0773-T2M1W2L4 | PT1000 | Ακίδα (pin) | 3 | On Order |
€107,00
|
€132,68
|
|
| 0773-T2M1W2L5 | PT1000 | Ακίδα (pin) | 5 | On Order |
€131,00
|
€162,44
|
|
| 0773-T2M1W3L1 | PT1000 | Ακροδέκτης (terminal) | 0.5 | On Order |
€77,00
|
€95,48
|
|
| 0773-T2M1W3L2 | PT1000 | Ακροδέκτης (terminal) | 1 | On Order |
€83,00
|
€102,92
|
|
| 0773-T2M1W3L3 | PT1000 | Ακροδέκτης (terminal) | 2 | On Order |
€95,00
|
€117,80
|
|
| 0773-T2M1W3L4 | PT1000 | Ακροδέκτης (terminal) | 3 | On Order |
€107,00
|
€132,68
|
|
| 0773-T2M1W3L5 | PT1000 | Ακροδέκτης (terminal) | 5 | On Order |
€131,00
|
€162,44
|
|
| 0773-T2M1W4L1 | PT1000 | Γυμνό καλώδιο | 0.5 | On Order |
€77,00
|
€95,48
|
|
| 0773-T2M1W4L2 | PT1000 | Γυμνό καλώδιο | 1 | On Order |
€83,00
|
€102,92
|
|
| 0773-T2M1W4L3 | PT1000 | Γυμνό καλώδιο | 2 | On Order |
€95,00
|
€117,80
|
|
| 0773-T2M1W4L4 | PT1000 | Γυμνό καλώδιο | 3 | On Order |
€107,00
|
€132,68
|
|
| 0773-T2M1W4L5 | PT1000 | Γυμνό καλώδιο | 5 | On Order |
€131,00
|
€162,44
|
