Dial & Centering Indicators

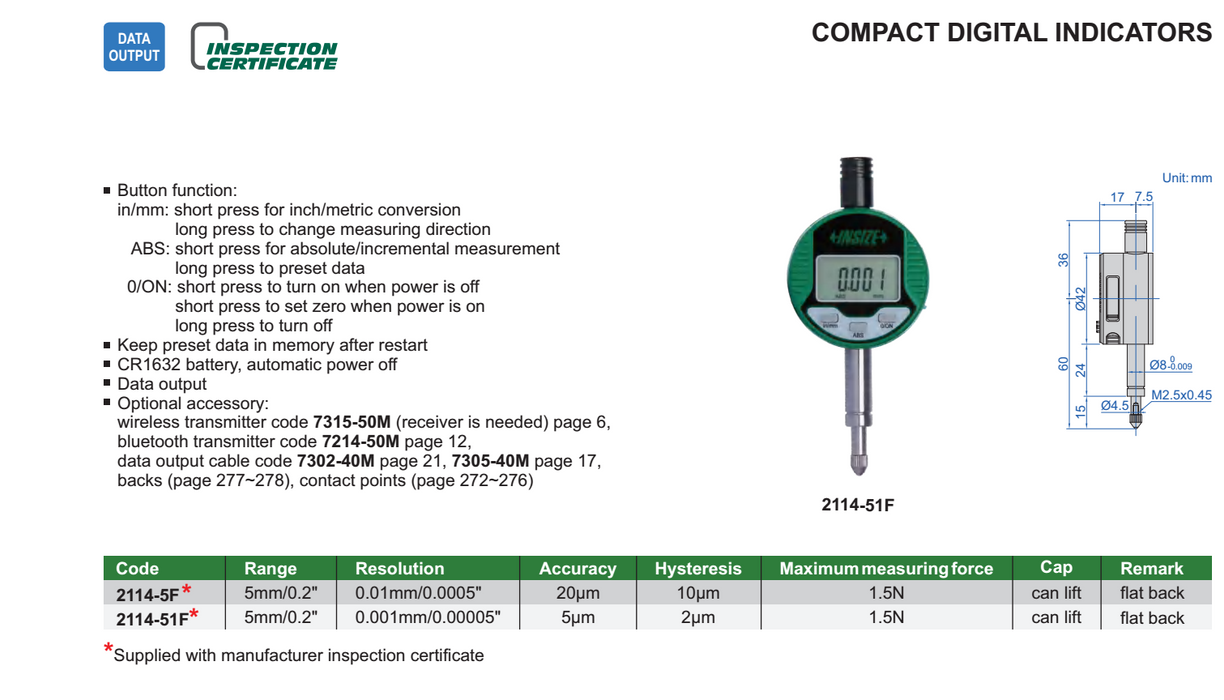

Ψηφιακό μετρητικό ρολόι γράφτη Insize 2114, πράσινο, με οθόνη LCD και έμβολο μέτρησης 0,01/0,001 mm
Τεχνικά χαρακτηριστικά 2114 - Μετρητικό Ρολόι Γράφτη Ψηφιακό - Μικρό - 0.01mm/0.001mm
Ψηφιακό μετρητικό ρολόι γράφτη Insize 2114, πράσινο, με οθόνη LCD και έμβολο μέτρησης 0,01/0,001 mm
Τεχνικά χαρακτηριστικά 2114 - Μετρητικό Ρολόι Γράφτη Ψηφιακό - Μικρό - 0.01mm/0.001mm

Availability & price

2 codes

Code Reading Travel Availability excl. VATincl. VAT Certificate Cart
2114-5F 0.01 0-5
€95,00
€117,80
0
2114-51F 0.001 0-5
€228,00
€282,72
0
  • Button function: in/mm: short press for inch/metric conversion
  • Long press to change measuring direction
  • ABS: short press for absolute/incremental measurement
  • Long press to preset data
  • 0/ON: short press to turn on when power is off
  • Short press to set zero when power is on
  • Long press to turn off CR1632 battery, automatic power off
  • Data output
  • Optional accessory: data output cable (code 7306-40, 7302-SPC3A, 7305-SPC1A), contact points (page 98~100).
Datasheet Technical datasheet Manual User manual Inspection Certificate Quality document Catalog Full manufacturer catalog

Complementary products

Frequently bought together

Insize

Official distributor

Insize

INSIZE was founded in 1995 and is one of the world's leading manufacturers of measuring instruments and metrological equipment. With factories in China and other Asian countries, as well as production units in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability and reliability, while being distinguished by their excellent quality-price ratio.

This product belongs to the collection

Dial & Centering Indicators

You're viewing one product from this category. Browse the full range.

163 products
View all

Related categories

All categories →
Calipers117 products Micrometers114 products Bore Micrometers18 products Indicator Stands56 products Cylinder Bore Gauges25 products
Dial Indicators

From our Wiki

Dial Indicators

The dial indicators (or comparative gauges) are high-precision measuring instruments used to check the deviations of a surface from a reference point. They are essential for machine tool setup and component quality control, as they can detect differences on the order of 0,01 mm or even 0,001 mm.

  • Types:Face (Plunger Type): They have a spindle that moves linearly up and down. Ideal for measuring flatness and perpendicularity.Test indicators (Lever Type): They have a rotating stylus (lever). They are extremely versatile for measurements in hard-to-reach areas or for checking radial deviation (run-out) on lathes.
  • Applications: * Alignment of parts in the lathe chuck.Checking parallelism on milling machine tables.Measuring wear on brake discs or engine shafts.
  • Use with Magnetic Base: For the indicator to operate, it must be mounted on a stable magnetic base with articulated arms, so that it remains stationary during the measurement.
Read the guide
