Johansson Gauge Blocks
Cylinder Gage Blocks Insize 4001

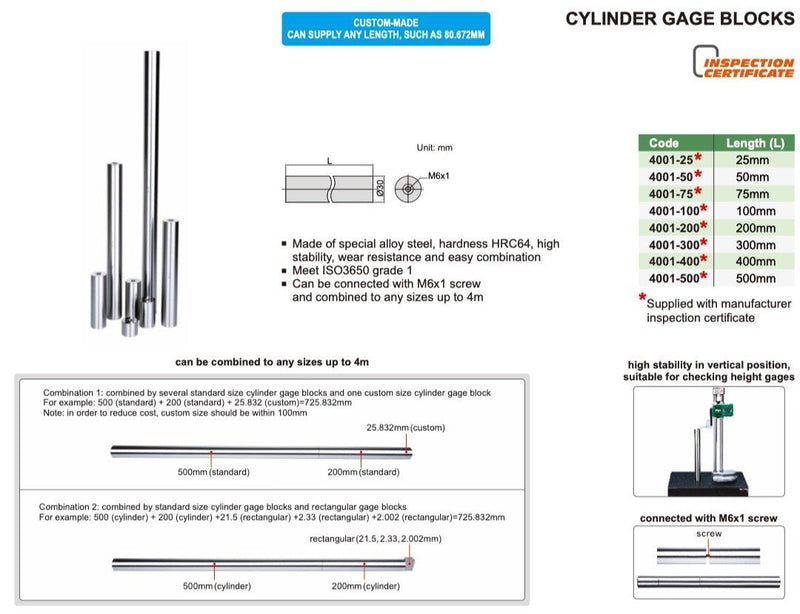

Insize 4001 cylinder gauge blocks, set of polished metal cylinders of different heights on white background
Technical specifications 4001 - Cylinder Gage Blocks
Cylinder Gage Blocks Insize 4001
Insize 4001 cylinder gauge blocks, set of polished metal cylinders of different heights on white background
Technical specifications 4001 - Cylinder Gage Blocks

Availability & price

8 codes

Code Range (mm) Availability excl. VATincl. VAT Cart
4001-25 25
€85,00
€105,40
0
4001-50 50
€114,00
€141,36
0
4001-75 75
€145,00
€179,80
0
4001-100 100
€241,00
€298,84
0
4001-200 200
€418,00
€518,32
0
4001-300 300
€788,00
€977,12
0
4001-400 400
€1.076,00
€1.334,24
0
4001-500 500 Upon Request
€1.511,00
€1.873,64
0
  • Made of special alloy steel, hardness HRC64, high stability, wear resistance and easy combination
  • Meet ISO3650 grade 1
  • Can be connected with M6x1 screw and combined to any sizes up to 4m.
  • For calibration certificate according to 17025 request a quote
Manual User manual Inspection Certificate Quality document Series Leaflet Catalogue for this product range Catalog Full manufacturer catalog
Insize

Official distributor

Insize

INSIZE was founded in 1995 and is one of the world's leading manufacturers of measuring instruments and metrological equipment. With factories in China and other Asian countries, as well as production units in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability and reliability, while being distinguished by their excellent quality-price ratio.

This product belongs to the collection

Johansson Gauge Blocks

You're viewing one product from this category. Browse the full range.

18 products
View all

Related categories

All categories →
Instrument Checkers11 products Ελεγκτήρες Σπειρωμάτων56 products Ελεγκτήρες Βάθους Σπειρωμάτων9 products Ελεγκτήρες Οπών13 products Ελεγκτήρες Αξόνων10 products
Johansson Tiles

From our Wiki

Johansson Tiles

The Johansson gauge blocks, also known as gauge blocks, are the global reference for linear measurement in machining. They are blocks made of steel, ceramic, or tungsten with surfaces machined with such precision that the phenomenon of wringing (wringing) between them is achieved to create composite dimensions.

  • Accuracy: Available in grades (Grade 0, 1, 2), with Grade K used as a calibration standard for other instruments.
  • Applications: Used for setting micrometers, checking measuring instruments, and as fixed standards in precision engineering.
  • Features: Distinguished by their excellent dimensional stability and low surface roughness, ensuring micrometer-level ($\mu m$) measurements.
Read the guide
