Gage Block Accessories

Specifications

• Product: Gage Block Accessories
• Dimension units: mm
• Working edges/surfaces material: carbide (where specified per accessory)
• Included accessory types (depending on code): holder, base, plain jaw, parallel jaw, half round jaw (supplied in pair), scriber, centre point
• Half round jaw: sizes 2.5mm / 5.0mm / 6.0mm, made of carbide, supplied in pair
• Plain jaw: made of carbide, supplied in pair
• Parallel jaw: made of carbide
• Scriber: made of carbide
• Centre point: tip is made of carbide

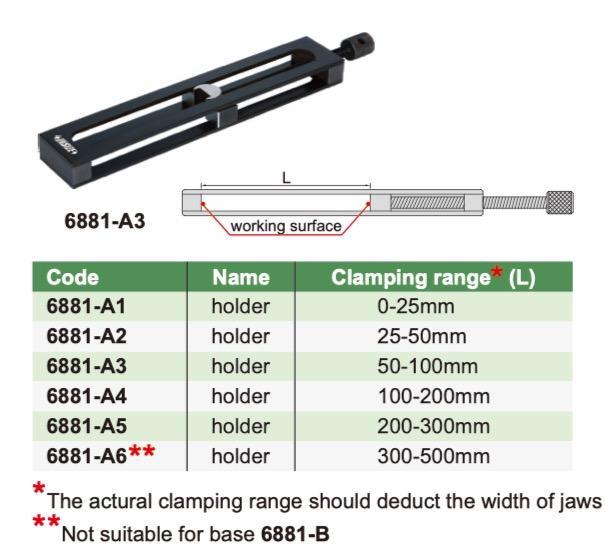

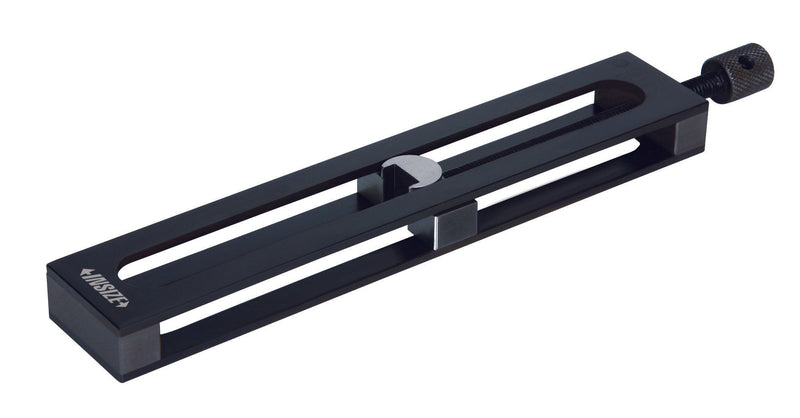

• Holder (6881-A series): available clamping ranges (L) 0–25mm, 25–50mm, 50–100mm, 100–200mm, 200–300mm, 300–500mm
• Note: actual clamping range should deduct the width of jaws
• Note: holder 300–500mm (6881-A6) is not suitable for base 6881-B

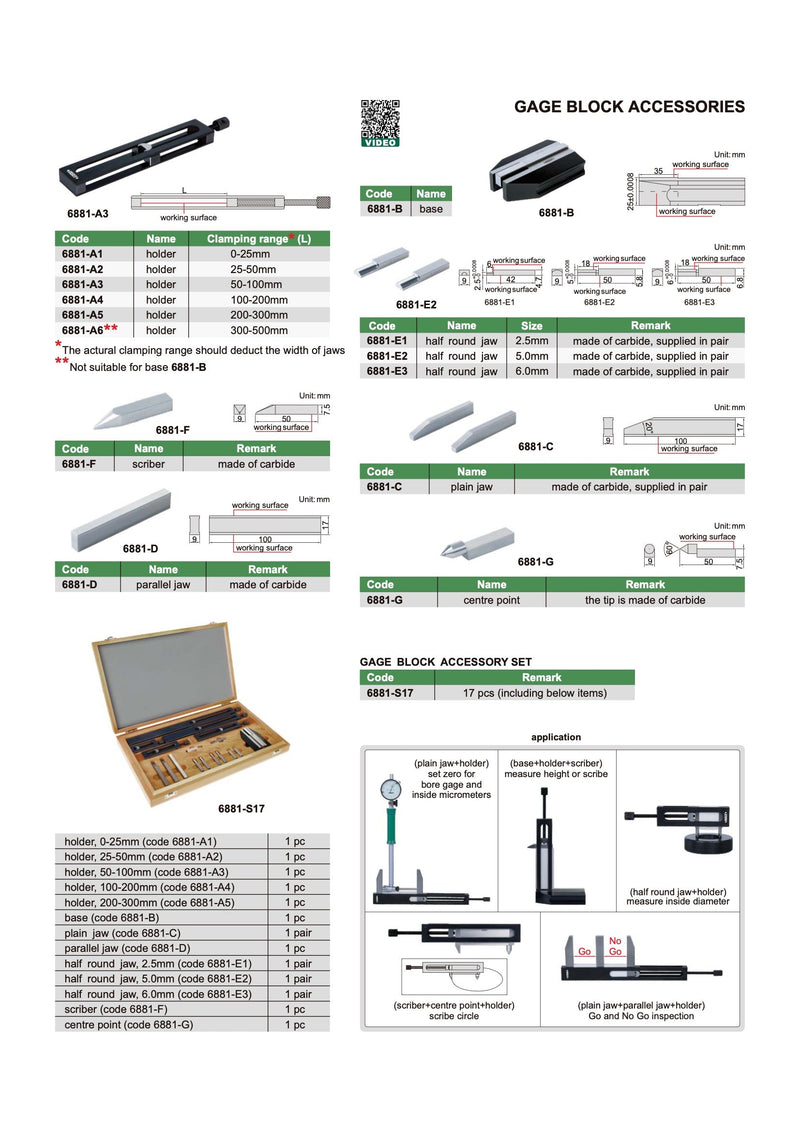

• Accessory set: 6881-S17, 17 pcs (including items listed below)
• Set contents (6881-S17): holder 0–25mm (6881-A1) 1 pc, holder 25–50mm (6881-A2) 1 pc, holder 50–100mm (6881-A3) 1 pc, holder 100–200mm (6881-A4) 1 pc, holder 200–300mm (6881-A5) 1 pc, base (6881-B) 1 pc, plain jaw (6881-C) 1 pair, parallel jaw (6881-D) 1 pc, half round jaw 2.5mm (6881-E1) 1 pair, half round jaw 5.0mm (6881-E2) 1 pair, half round jaw 6.0mm (6881-E3) 1 pair, scriber (6881-F) 1 pc, centre point (6881-G) 1 pc

Description

Gage Block Accessories are components used with gage blocks to build measurement setups and support dimensional inspection tasks. The range includes bases, holders, and jaws (plain/parallel/half round) for applications such as setting zero for bore gages and inside micrometers, measuring height or scribing, measuring inside diameter, scribing circles, and performing Go/No-Go inspection.
