- Reading: 1HLD/ 1HV/ 1HB/ 0.1 HRC/ 0.1HRB/ 0.1HRA/ 0.1HS/ 1SGM
- Accuracy: ±6 HLD (when HLD=800)
- Measurement range: HL 100-960/ HRC 0.9-79.2/ HRB 1-140/ HB 1-1878/ HV 1-1698/ HS 0.5-1370/ HRA 1-88.5/ SGM (rm) 1-6599 N/mm2
- Power supply: 2 x AA battery
- With interchangeable probes
- Dual coil sensor for high accuracy
- Universal test angle, no need to adjust impact direction
- Based on Leeb (HLD), with conversion to Vickers (HV), Brinell (HB), Rockwell (HRC, HRA, and HRB), Shore (HS), and tensile strength (SGM)
- Display of dual value, Leeb hardness and hardness after conversion
- Large LCD screen with backlight
- Display of large font and statistical data
- Automatic calculation of maximum, minimum, and average value
- Memory: 300 measurements
- Operating temperature: -10°C...45°C
- According to ASTM A956, DIN 50156, GB/T 17394
- Dimensions: 127 x 67 x 30 mm
- Weight: 240 g
| Code | Includes | Availability | Price excl. VAT | Price incl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|
| HDT-LP200 | - |
€516,00
|
€639,84
|
|||
| HDT-LP200B | Bluetooth - Printer |
€832,00
|
€1.031,68
|
C Probe for the Hardness Tester HDT-LP200 (General Use)
Probes: DC (HDT-LP200-DC) C (HDT-LP200-C) D+15 (HDT-LP200-D15) DL (HDT-LP200-DL) E (HDT-LP200-E) G (HDT-LP200-G) Hardness Blocks: D (ISH-BHL...
View full details
DL Probe for the Hardness Tester HDT-LP200 (Narrow grooves or small holes)
Impact Devices: DC (HDT-LP200-DC) C (HDT-LP200-C) D+15 (HDT-LP200-D15) DL (HDT-LP200-DL) E (HDT-LP200-E) G (HDT-LP200-G) Hardness Blocks: D ...
View full details
D15 Probe for the Hardness Tester HDT-LP200 (Deep Grooves)
Impact Devices: DC (HDT-LP200-DC) C (HDT-LP200-C) D+15 (HDT-LP200-D15) DL (HDT-LP200-DL) E (HDT-LP200-E) G (HDT-LP200-G) Hardness Blocks: D ...
View full details
DC Probe for the Hardness Tester HDT-LP200 (Internal walls of small spaces)
Impact Devices: DC (HDT-LP200-DC) C (HDT-LP200-C) D+15 (HDT-LP200-D15) DL (HDT-LP200-DL) E (HDT-LP200-E) G (HDT-LP200-G) Hardness Blocks: D ...
View full details
Set of support rings for hardness tester for cylindrical surfaces
Type Workpiece application Range (mm) Quantity A Cylindrical external surface R10-15 3 pieces R14.5-30 R25-50 B C...
View full details
E Probe for the Hardness Tester HDT-LP200 (Hard materials)
Impact Devices: DC (HDT-LP200-DC) C (HDT-LP200-C) D+15 (HDT-LP200-D15) DL (HDT-LP200-DL) E (HDT-LP200-E) G (HDT-LP200-G) Hardness Blocks: D ...
View full details
G Probe for the Hardness Tester HDT-LP200 (Casting or Forging)
Impact Devices: DC (HDT-LP200-DC) C (HDT-LP200-C) D+15 (HDT-LP200-D15) DL (HDT-LP200-DL) E (HDT-LP200-E) G (HDT-LP200-G) Hardness Blocks: D ...
View full details

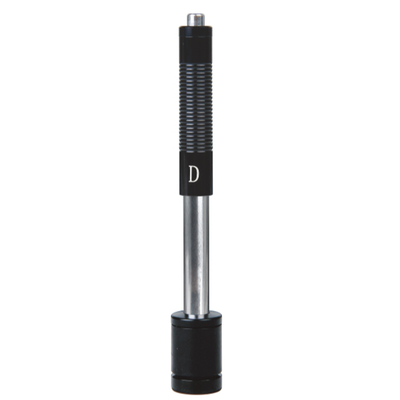

D Probe for the Hardness Tester HDT-LP200 (General Use)
Impact Devices: DC (HDT-LP200-DC) C (HDT-LP200-C) D+15 (HDT-LP200-D15) DL (HDT-LP200-DL) E (HDT-LP200-E) G (HDT-LP200-G) Hardness Blocks: D ...
View full details
