Hand-Held Alloy Spectrometer

Specifications

• Excitation Source: 50kV/200μA; Ag target, integrated end window, X-ray microtube and high voltage power supply, matched power >24W
• Detector: Si-PIN, window surface 25mm²
• Element analysis range: Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, W, Re, Pb, Bi
• Alloy analysis mode:
  1. Automatic recognition of alloy category
  2. Small sample test, 1mm small sample compensation
  3. Determined alloy material test function
• Collimator Filter: 7 groups
• Display: 5-inch LCD touch screen
• Processor: Quad-core processor, 1.4GHz, 4G memory
• Memory: Built-in 64G, data storage capacity 2,500,000 groups
• Data transmission: Built-in WIFI, U disk, bluetooth (supports bluetooth printer)
• Data output format: EXCEL, BMP, PDF, CSV
• Battery: 6800mAh lithium battery, 8 hours working time
• Air pressure compensation: Built-in pressure measurement system for compensation and system correction
• System: Win-IOT operating system
• Working environment: Temperature: 0-40°C, relative humidity: 10%-90%
• Dimensions: 250x320x80mm
• Weight: 1.9kg

Includes

• Main unit: 1 pc
• Charger: 1 pc
• Battery: 2 pcs
• Test sample: 50 pcs
• Sample: 1 pc
• Standard sample: 1 pc
• Support protection (includes silver calibration): 1 pc
• USB cable and cable: 1 pc

Description

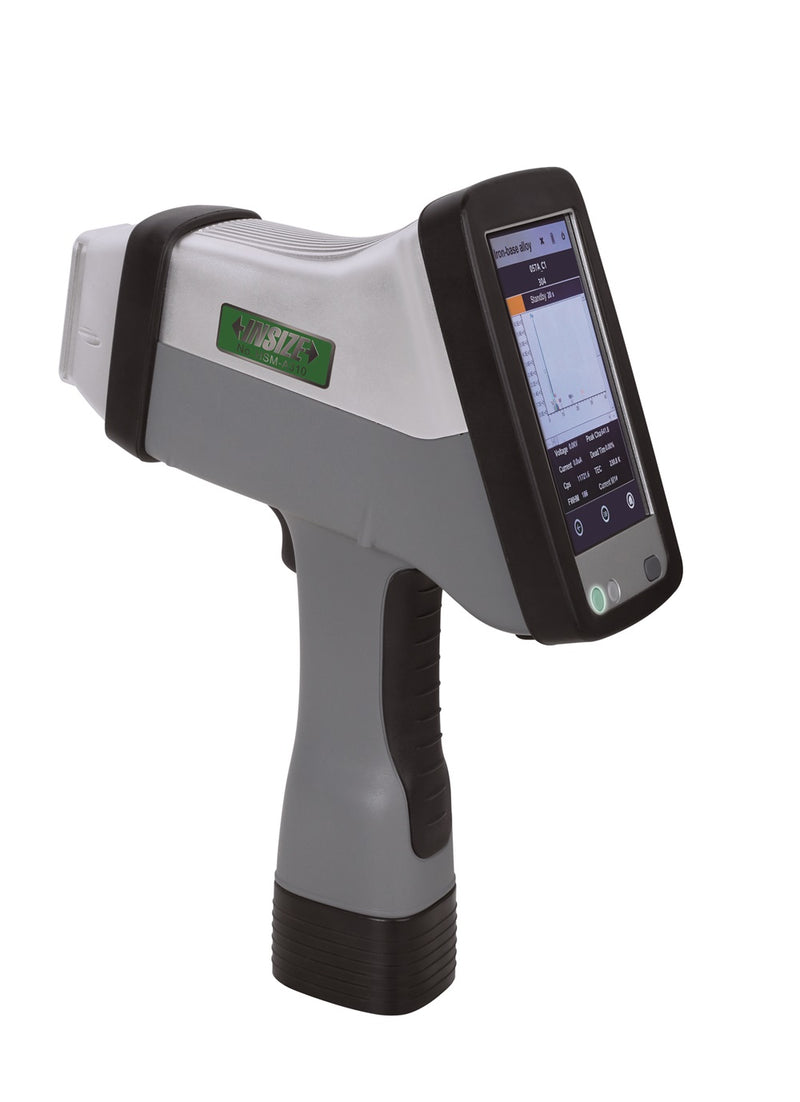

The portable spectrometer HSM-A310 is used for quick and non-destructive identification of the category and composition of alloys. It is suitable for all types of high and low temperature alloys, stainless steel, tool steel, chromium/molybdenum steel, nickel alloy, cobalt alloy, heat-resistant nickel/cobalt alloy, titanium alloy. It performs multiple tests and automatically calculates the maximum and minimum value, as well as the standard deviation. It features IP54 protection against dust and water.
