Thread Gauges

Availability & price

26 codes

Code Thread Type Tolerance Availability excl. VATincl. VAT Certificate Cart
JBO-512675 EG M 2 x 0.4 GO & NOGO 6H mod
€128,00
€158,72
0
JBO-512676 EG M 2.5 x 0.45 GO & NOGO 6H mod
€119,00
€147,56
0
JBO-512679 EG M 3 x 0.5 GO & NOGO 6H mod
€107,00
€132,68
0
JBO-512682 EG M 4 x 0.7 GO & NOGO 6H mod
€96,00
€119,04
0
JBO-512683 EG M 5 x 0.8 GO & NOGO 6H mod
€92,00
€114,08
0
JBO-512685 EG M 6 x 1 GO & NOGO 6H mod
€92,00
€114,08
0
JBO-513473 EG M 7 x 1 GO & NOGO 6H mod
€143,00
€177,32
0
JBO-513019 EG M 8 x 1 GO & NOGO 6H mod
€183,00
€226,92
0
JBO-512686 EG M 8 x 1.25 GO & NOGO 6H mod
€92,00
€114,08
0
JBO-513020 EG M 10 x 1 GO & NOGO 6H mod
€208,00
€257,92
0
JBO-515046 EG M 10 x 1.25 GO & NOGO 6H mod
€259,00
€321,16
0
JBO-512666 EG M 10 x 1.5 GO & NOGO 6H mod
€100,00
€124,00
0
JBO-515572 EG M 12 x 1.25 GO & NOGO 6H mod Upon Request
€266,00
€329,84
0
JBO-512670 EG M 12 x 1.5 GO & NOGO 6H mod
€217,00
€269,08
0
JBO-512668 EG M 12 x 1.75 GO & NOGO 6H mod
€133,00
€164,92
0
JBO-512672 EG M 14 x 1.5 GO & NOGO 6H mod
€227,00
€281,48
0
JBO-512671 EG M 14 x 2 GO & NOGO 6H mod
€162,00
€200,88
0
JBO-513021 EG M 16 x 1.5 GO & NOGO 6H mod
€235,00
€291,40
0
JBO-512673 EG M 16 x 2 GO & NOGO 6H mod
€179,00
€221,96
0
JBO-513975 EG M 18 x 1.5 GO & NOGO 6H mod
€241,00
€298,84
0
JBO-512674 EG M 18 x 2.5 GO & NOGO 6H mod
€249,00
€308,76
0
JBO-512678 EG M 20 x 1.5 GO & NOGO 6H mod
€254,00
€314,96
0
JBO-512677 EG M 20 x 2.5 GO & NOGO 6H mod Upon Request
€259,00
€321,16
0
JBO-513454 EG M 22 x 1.5 GO & NOGO 6H mod
€269,00
€333,56
0
JBO-513146 EG M 24 x 1.5 GO & NOGO 6H mod
€274,00
€339,76
0
JBO-513023 EG M 24 x 3 GO & NOGO 6H mod
€306,00
€379,44
0

Description

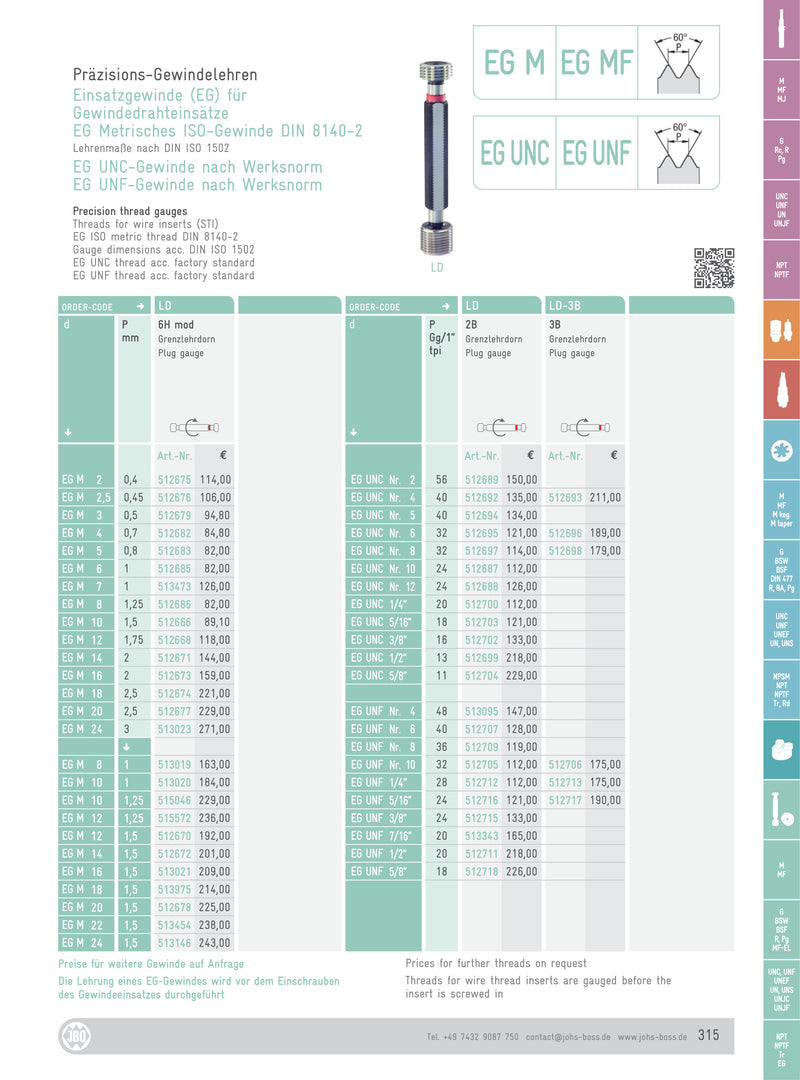

GO / NOGO thread plug gauges for threads that take wire inserts (EG / STI), ISO metric thread to DIN 8140-2, tolerance 6H mod. Gauge dimensions to DIN ISO 1502. The EG thread is checked before the wire insert is screwed in.

These specific products are a special order exclusively for you. Therefore, cancellation or return of the products at a later stage is not possible.

Johs

Official distributor

Johs

Related categories

All categories →
Thread Gauges

From our Wiki

Thread Gauges

The thread gauges (thread gauges) are standard verification tools used to check the accuracy and compatibility of threads on screws and nuts. They are based on the "Go / No-Go" method, ensuring that the thread is within the specified tolerance limits for correct assembly and operation of the components.

  • Types: They are classified into standard rings (ring gauges) for external threads and standard plugs (plug gauges) for internal threads.
  • Applications: Essential in mass production, precision machining, and quality control of fastening components.
  • Standards: Manufactured according to international systems such as Metric (M), Whitworth (BSP) or Unified (UNC/UNF), from hardened high-strength steel.
