CO2 Gas Detector
USB
- 5 measuring parameters
- SD card data logger
- XLS files open in Excel
- Alarm function
- Battery or mains operation
- For workplace air monitoring
Same-day dispatchfor orders placed by 15:00
Free shippingon orders over €80 (incl. VAT)
Calibrationupon request
Availability & price
| Code | Availability | excl. VAT | incl. VAT | Certificate | Cart |
|---|---|---|---|---|---|
| PCE-AQD 20 |
€890,00
|
€1.103,60
|
- 5 measuring parameters
- SD card data logger
- XLS files open in Excel
- Alarm function
- Battery or mains operation
- For workplace air monitoring

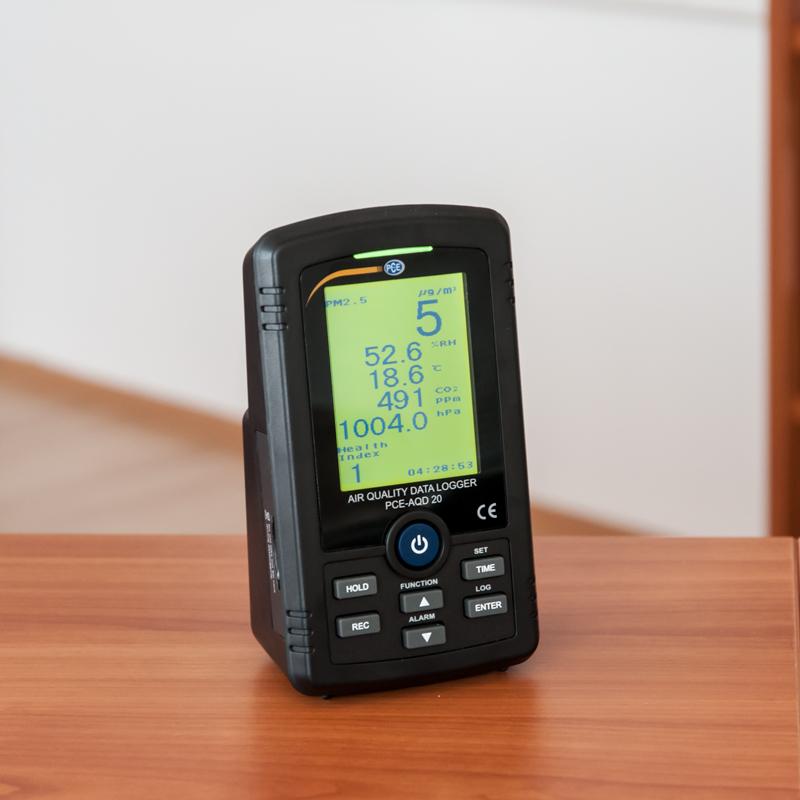

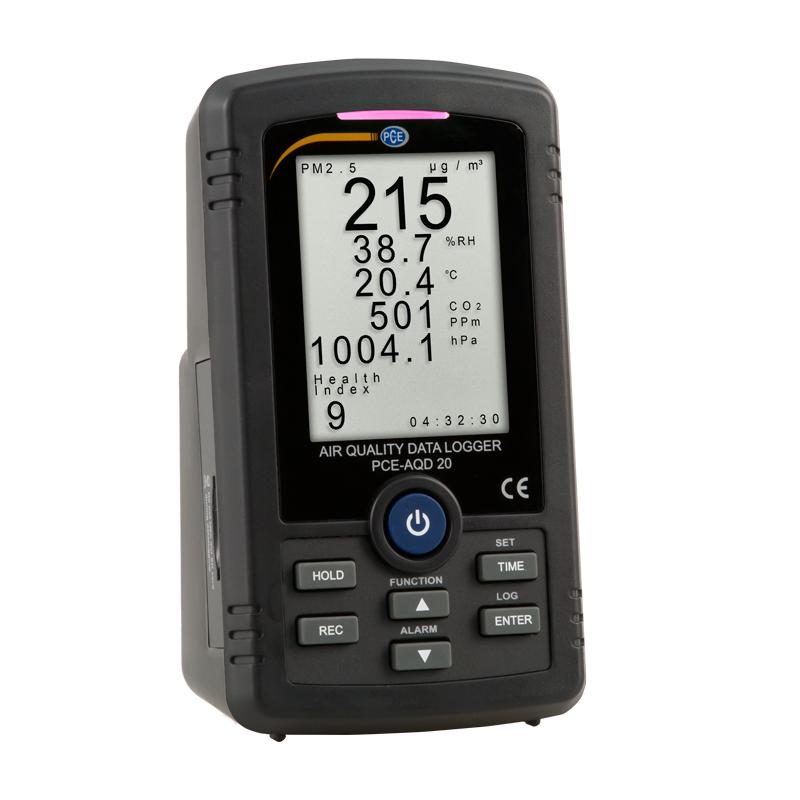

The PCE-AQD 20 is an air quality data logger that measures temperature, relative humidity, CO2, PM2.5 and air pressure. It logs all five parameters continuously and stores the readings on an SD memory card.

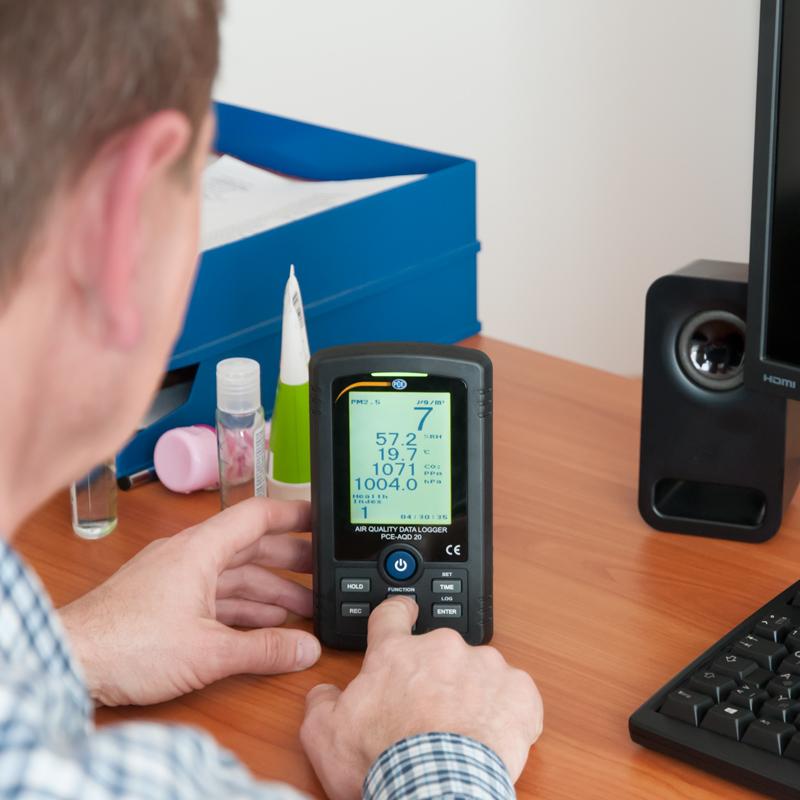

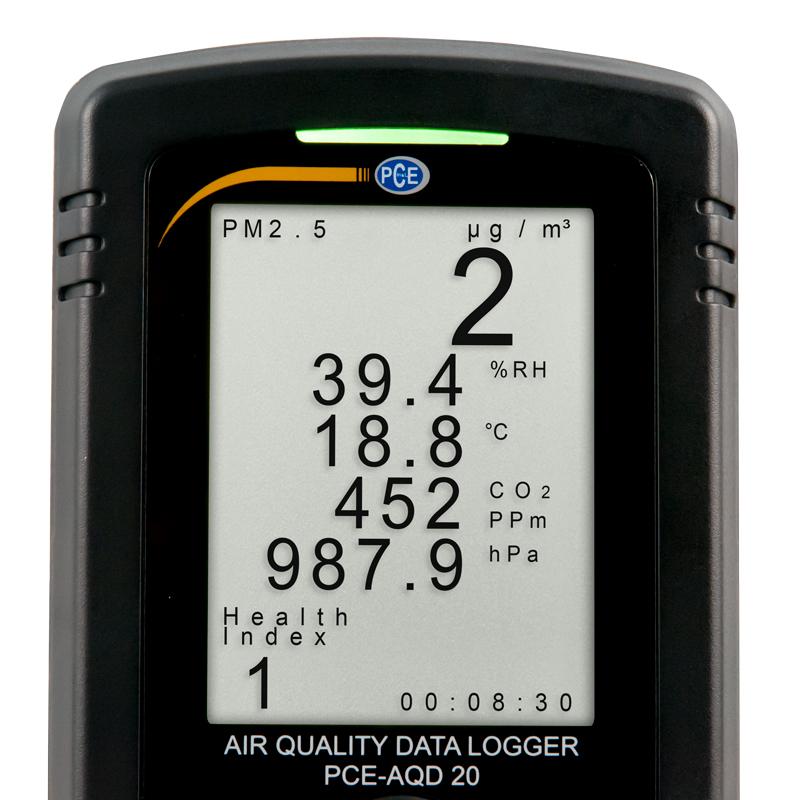

Files are saved in XLS format and open directly in Excel, so no extra software is needed. Readings and the current time appear on the large backlit display. An acoustic alarm warns when temperature, humidity or dust load is exceeded. The logger runs on batteries or a 9 V power adapter, which suits it to air quality monitoring at workplaces.
Highlights
- Measures temperature, humidity, CO2, PM2.5, air pressure
- Logs to SD card in XLS format
- Large 3,4 in backlit LCD
- Acoustic alarm for temperature, humidity and dust
- Battery or 9 V adapter operation
- MIN, MAX and HOLD functions
- RS232 interface
- Shows current time
| CO² | |
|---|---|
| Measuring range | 0 ... 1000 ppm |
| Resolution | 1 ppm |
| Accuracy | ±40 ppm |
| Measuring range | 1000 ... 3000 ppm |
| Resolution | 1 ppm |
| Accuracy | ±(50 ppm + 3 % of Rd) |
| Measuring range | 3000 ... 10000 ppm |
| Resolution | 1 ppm |
| Accuracy | ±(50 ppm + 5 % of Rd) |
| Air pressure | |
| Measuring range | 10 ... 1100 hPa |
| Resolution | 0,1 hPa |
| Accuracy | ±1.5 hPa |
| Particle | |
| Measuring channel sizes | PM2,5 |
| Measuring range | 0 ... 250 µg/m³ |
| Resolution | 1 µg/m³ |
| Accuracy | ±(10 % of Rd + 15 µm) |
| Relative humidity | |
| Measuring range | 5 ... 70 % RH |
| Resolution | 0,1 % RH |
| Accuracy | ±3 % RH |
| Measuring range | 70 ... 95 % RH |
| Resolution | 0,1 % RH |
| Accuracy | ±(3 % of Rd +1 % RH) |
| Temperature | |
| Measuring range | 0 ... 50 °C |
| Resolution | 0,1 °C |
| Accuracy | ±0.8 °C |
| General technical data | |
| Outputs | OC 24 V / 70 mA DC |
| Measuring functions | MIN, MAX, HOLD |
| Display type | LCD with backlight |
| Display size | 3,4 in |
| Measuring rate | 1 s |
| Storage medium | SD card |
| Storage capacity | 32 GB |
| Memory information | Memory error <0.1 % of the complete stored data |
| Storage interval from | 2 s |
| Storage interval to | 1 h |
| Interface | RS232 |
| Current consumption meter | 250 mA DC |
| Sensor | Laser scattered light |
| Alarm | Acoustic |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | 9 V / 1 A |
| Connector type | Device-europlug |
| (Rechargeable) battery | 6 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 164 x 93 x 72 mm |
| Weight | 387 g |
- 1×Gas Leak Detector PCE-AQD 20
- 1×Mains power adapter 9 V / 1 A
- 1×Instruction manual
