| Measuring range | 0 ... 1100 g / 0 ... 110,000 g / m² |
| Reading | 0.01 g / 1 g / m² |
| Repeatability | ± 0.02 g |
| Linearity | ± 0.03 g |
| Response time | <3 sec |
| Operating conditions | 17.5 ... 22.5°C / 63.5 ... 72.5°F, 85% rh without condensation |
| Connectivity | RS232 |
|
Power supply (with batbattery) |
3 x 1.5 V AA |
| Power supply (with power) | Primary: 100 ... 240 V, 50/60 Hz |
| Secondary: 6V, 500-mA | |
| Scale dimensions | 270 x 200 x 80 mm / 10.6 x 7.9 x 3.1 |
| Weight | 2 kg / 4.4 lbs |
Paper scale with direct display in g / m² / RS-232 connection / Backlight / Piece counting function / Suitable also for portable use
The PCE-DMS 1100 scale measures the exact weight of paper, cardboard, or various fabrics with a measuring range up to 1100 gr and a reading of 0.01 gr. It also features a piece counting function and ZERO function.
- High accuracy
- Backlit display
- RS-232 connection
- Piece counting function, weight per unit area
- Battery operation for portable use
- Alignment with dragonfly
Package contents
1 x PCE-DMS 310 measuring scale
1 x Test weight
1 x Power Supply
1 x User manual
| Code | Width | Reading | Availability | Price excl. VAT | Price incl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|---|
| PCE-DMS 1100 | 110,000 g / m² | 1 g / m² |
€424,00
|
€525,76
|

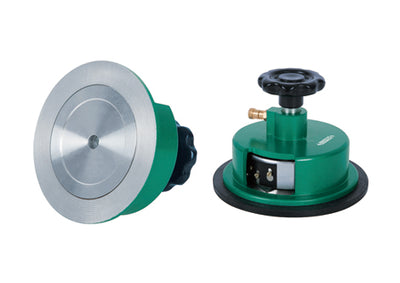

Cutter for Paper Weight Scales 100 cm²
