USB Data Logger Thermometer -40 ... +125 °C
- Range -40 ... +125 °C
- 32,000-value memory
- Metal housing, IP67
- Direct PDF export

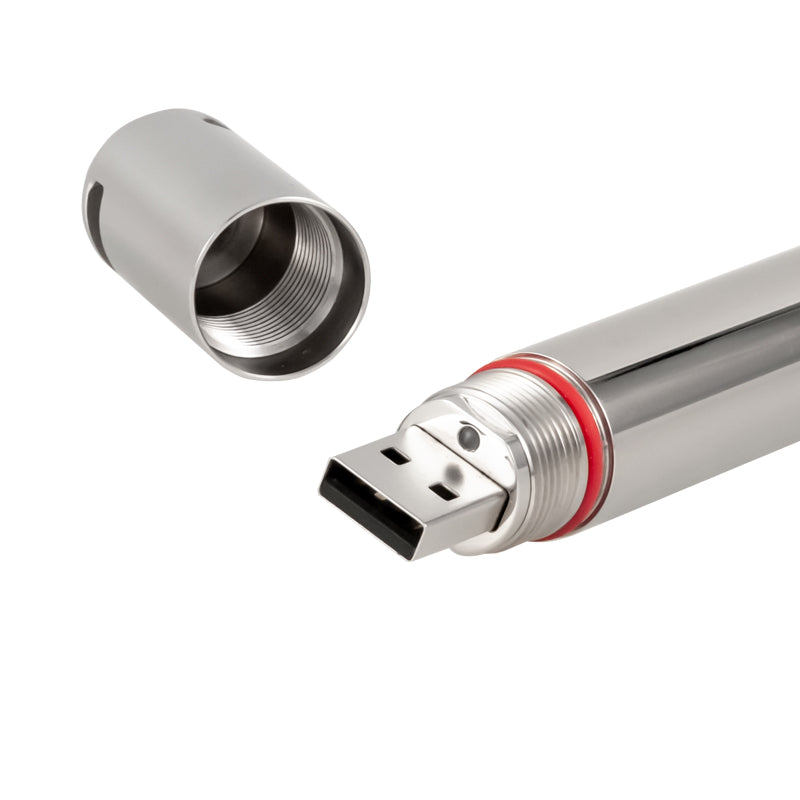

- USB connection
Availability & price
Express from Europe for codes marked : at our premises in 1-2 working days · from €35 + VAT Express from Europe, from €35 + VAT
| Code | Temperature Accuracy | Availability | excl. VAT | incl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|
| PCE-HTD 125 | 0.2 °C |
€298,00
|
€369,52
|
- Range -40 ... +125 °C
- 32,000-value memory
- Metal housing, IP67
- Direct PDF export
- USB connection

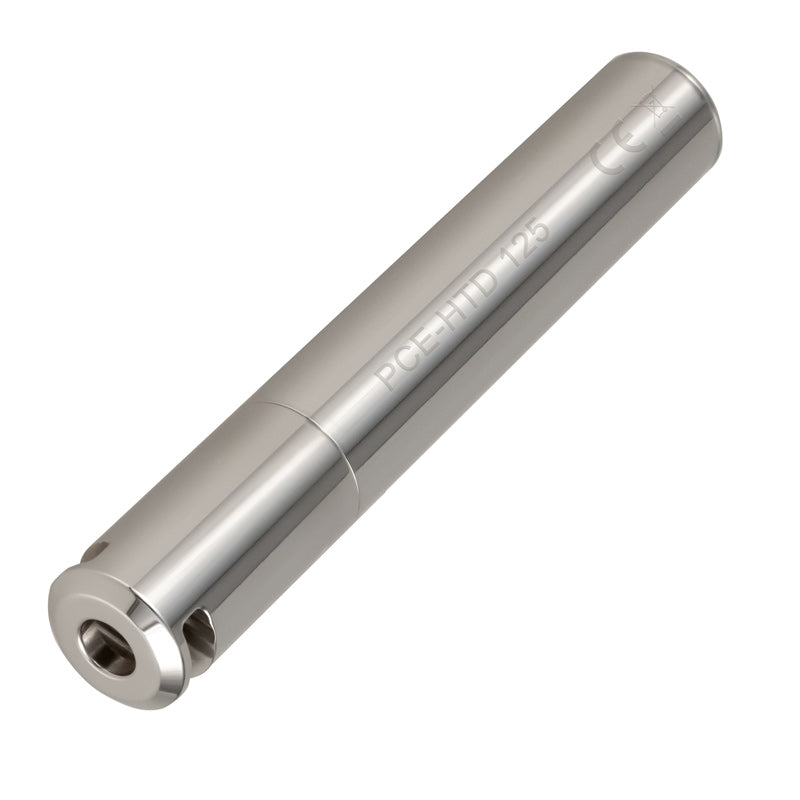

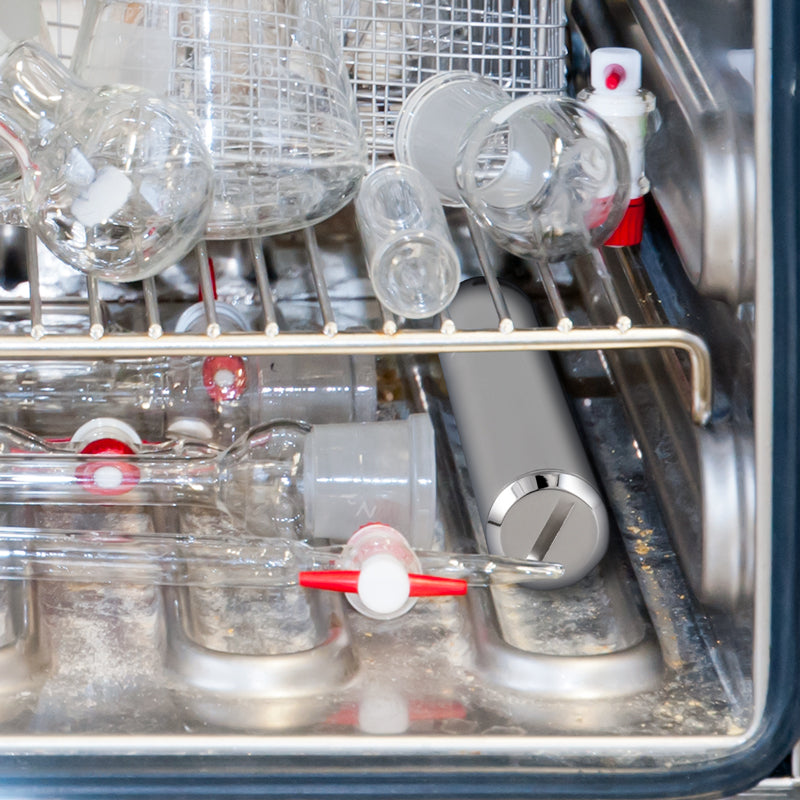

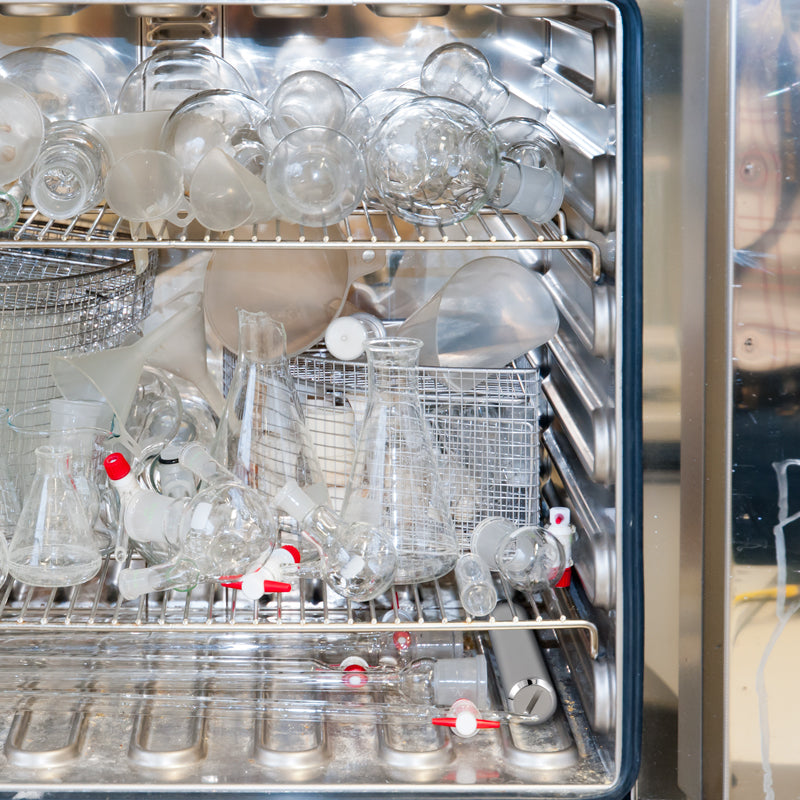

The PCE-HTD 125 is a standalone temperature data logger for -40 ... 125 °C. It suits hot environments and is used, for example, to monitor autoclaves. The memory holds 32,000 measured values, giving a full temperature history. The metal housing with IP67 protection allows use in demanding conditions.

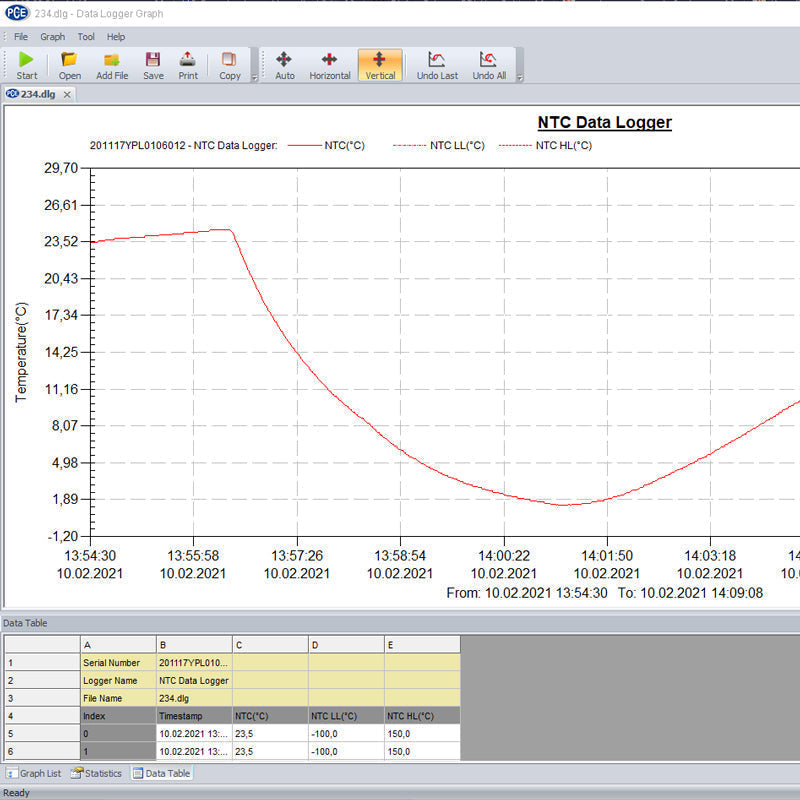

The logger generates a PDF alongside the measurement series. A computer recognises it as a mass storage device, so the PDF can be copied from any machine, regardless of operating system. The supplied software handles further analysis and device settings, and exports data as TXT, CSV or XLS, and graphs as JPG or BMP.
Highlights
- Measures -40 ... +125 °C / -40 ... 257 °F
- Robust metal housing, IP67
- USB data logger, 32,000 measured values
- Direct PDF export, no drivers needed
- Export as TXT, CSV, XLS, JPG, BMP
- Replaceable battery
- Analysis software included
| Temperature | |
|---|---|
| Measuring range | -40 ... +125 °C |
| Resolution | 0,1 °C |
| Accuracy | ±0.2°C (0 ... 65°C) |
| General technical data | |
| Storage capacity | 32000 Values |
| Storage interval from | 1 s |
| Storage interval to | 24 h |
| file format | TXT, CSV, XLS, JPG, bmp |
| Protection class (device) | IP67 |
| Battery | 1 x 3,6 V 2/3 AA (ER14335) , lithium |
| Capacity | 1650 mAh |
| Operating conditions | -40 ... 125 °C , 0 ... 95 % RH |
| Storage conditions | -40 ... 85 °C , 0 ... 95 % RH |
| Dimensions ( L x W x H ) | 115 x 18 x 18 mm |
| Weight | 95 g |

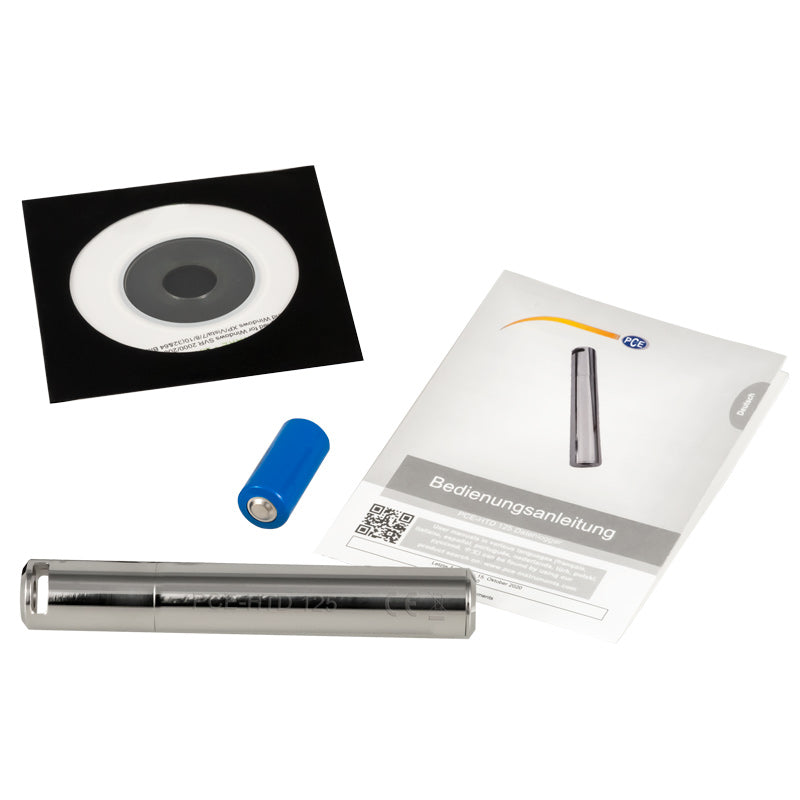

- 1×Thermometer PCE-HTD 125
- 1×3.6 V 2/3 AA high temperature battery
- 1×Instruction manual
- 1×Software
