Magnetic Stirrer 10 positions 565 x 196 mm
PCE-MSR 410
| Number of stirring points | 10 |
| Power consumption | 11 W |
| Maximum stirring quantity | 400 ml per stirring point |
| Stirring point surface | 80 mm |
| Adjustable speed | 300 ... 1500 rpm |
| Speed step | 10 rpm |
|
Timer range |
1 ... 999 minutes, infinite |
| Recommended length of stirring rods | 25 mm |
| Sealing class | IP 42 |
| Operating conditions | 5 ... 40 °C / maximum 80 RH |
| Power supply / current consumption | 110 V AC / 3.6 A |
| 230 V AC / 1.7 A | |

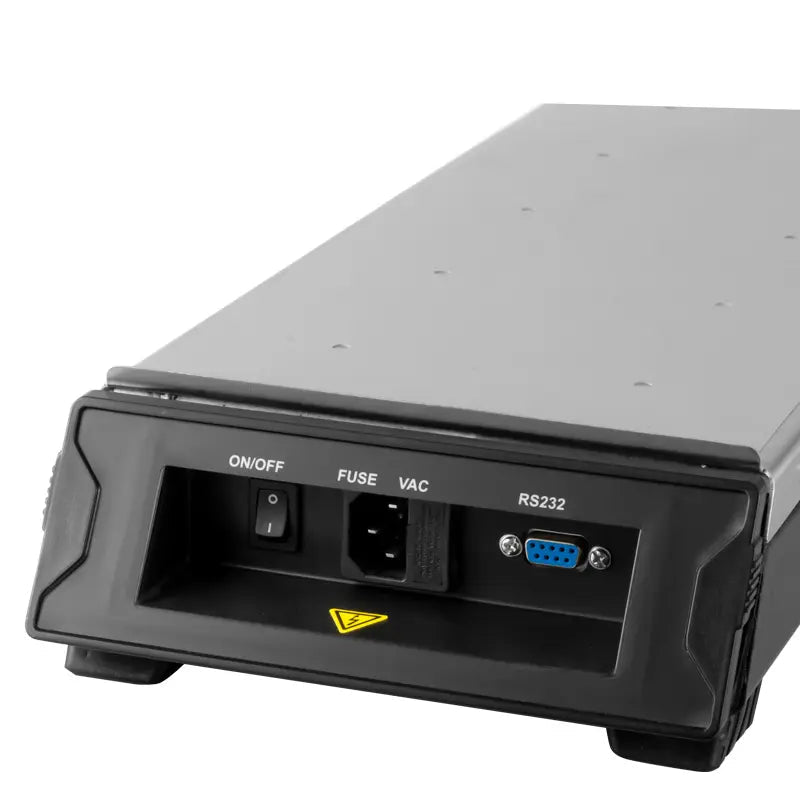

| Exit | RS232 for service purposes only |
| Stirring area dimensions | 460 x 178 mm |
| Dimensions | 565 x 196 x 75 mm |
| Weight | approximately 5 kg |
10-position magnetic stirrer up to 400 ml per stirring point / Adjustable speed
300 to 1500 rpm / Timer function / Pulse function
300 to 1500 rpm / Timer function / Pulse function
This multi-position magnetic stirrer is especially suitable for batch testing. The 10 synchronized rotating stirring points of the magnetic stirrer with adjustable stirring speed between 300 and 1500 rpm in 10 rpm increments can stir volumes up to 400 ml per stirring point in containers with a diameter of approximately 80 mm. The stirring time intervals can be set from 1 to 999 minutes. The PCE-MSR 410 features a pulse stirring function, meaning the solutions are stirred periodically for specific time intervals, as well as a function to change the stirring direction. The magnetic stirrer provides a time interval between 30 and 99 seconds as the change interval.
The stirring platform of the magnetic stirrer is made of stainless steel and coated with a silicone layer to prevent slipping.
- 10 stirring points
- Adjustable speed from 300 to 1500 rpm
- Stainless steel platform with silicone coating
- 400 ml per stirring point
- Timer and pulse function
- Power supply 110 V or 230 V

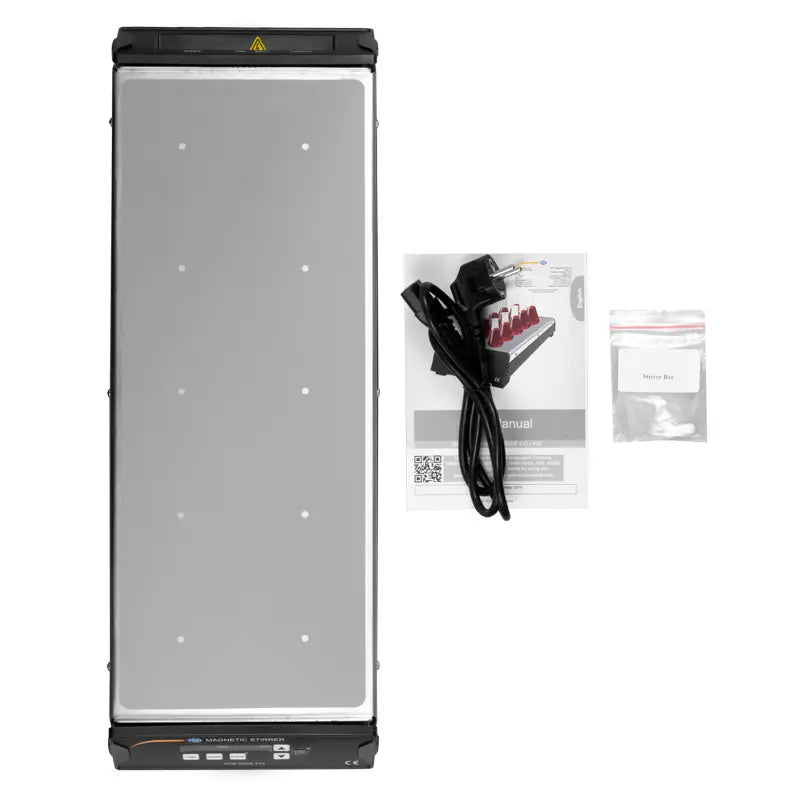

Package contents
1 x Multi-position magnetic stirrer PCE-MSR 410
1 x 25 mm stirring bar
1 x Connection Cable
1 x User manual
1 x 25 mm stirring bar
1 x Connection Cable
1 x User manual
