| Range | Maximum 5000 N (500 kg / 1100 lbs) |
| Travel |
Maximum 300 mm / 11.8" |
| Feed |
30 ... 230 mm/min / 1.18 ... 9.05 in/min |
| Test platform |
Ø 160 mm/ 6.3" |
| Sample width |
Maximum 200 mm / 7.9" |
| Guide columns | Ø 32 mm / 1.3" |
| Dimensions |
1020 x 400 x 250 mm / 40.2 x 15.7 x 9.8" |
| Weight | ~ 60 kgr/ 132 lbs |

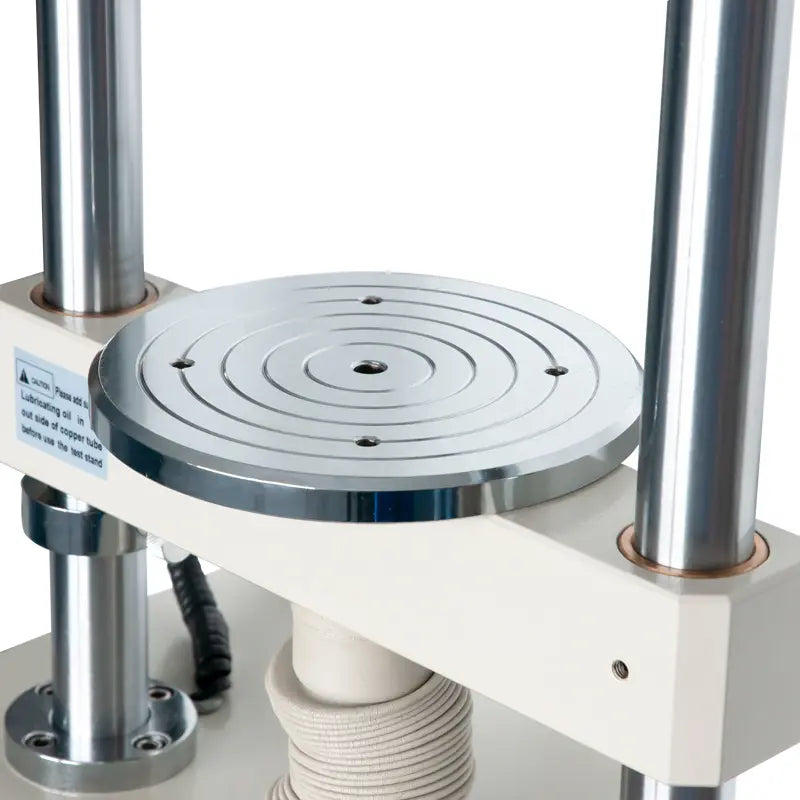

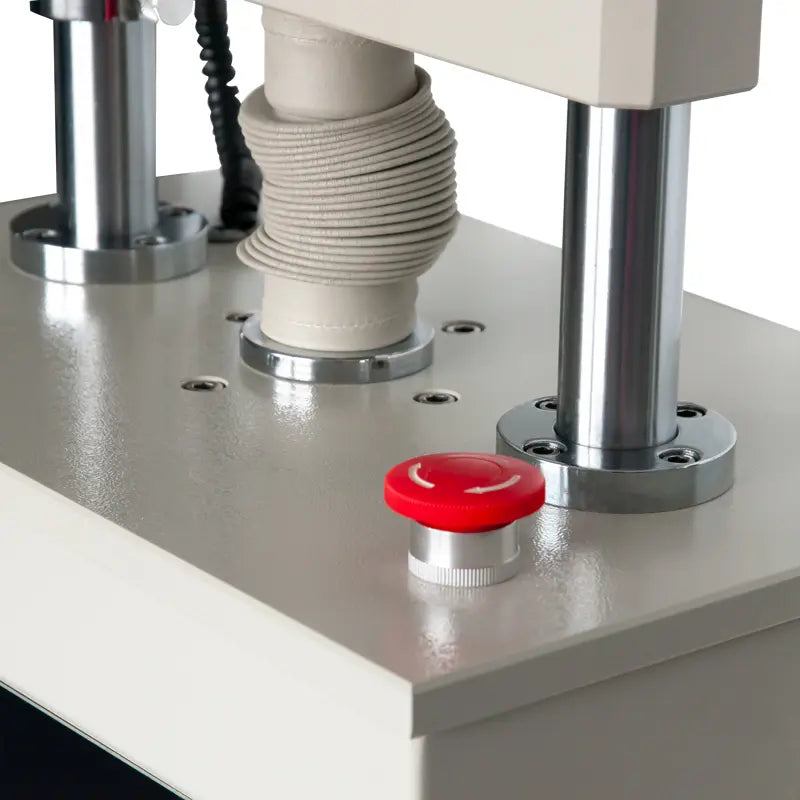

Motorized test stand up to 5000 N / Long travel / Adjustable feed
The motorized test stand PCE-MTS500 can be connected and operated with all PCE dynamometers and is ideal for checking the tolerance of samples to tensile and compressive forces with repeatable accuracy.
The maximum force range that can be applied is 500 kg and the feed rate is adjustable between 30 ... 230 mm/min. The use of the motorized test stand requires a power connection and it is compatible with the following device series: PCE-FB series, PCE-FM series, PCE-LFG series and PCE-PTR 200.
- Robust steel design
- Adjustable travel
- Large force measurement range
- Mains connection
- Compatible with all PCE devices
- Manual or automatic travel
| Code | Availability | Price excl. VAT | Cart |
|---|---|---|---|
| PCE-MTS500 |
€2.520,00
|
