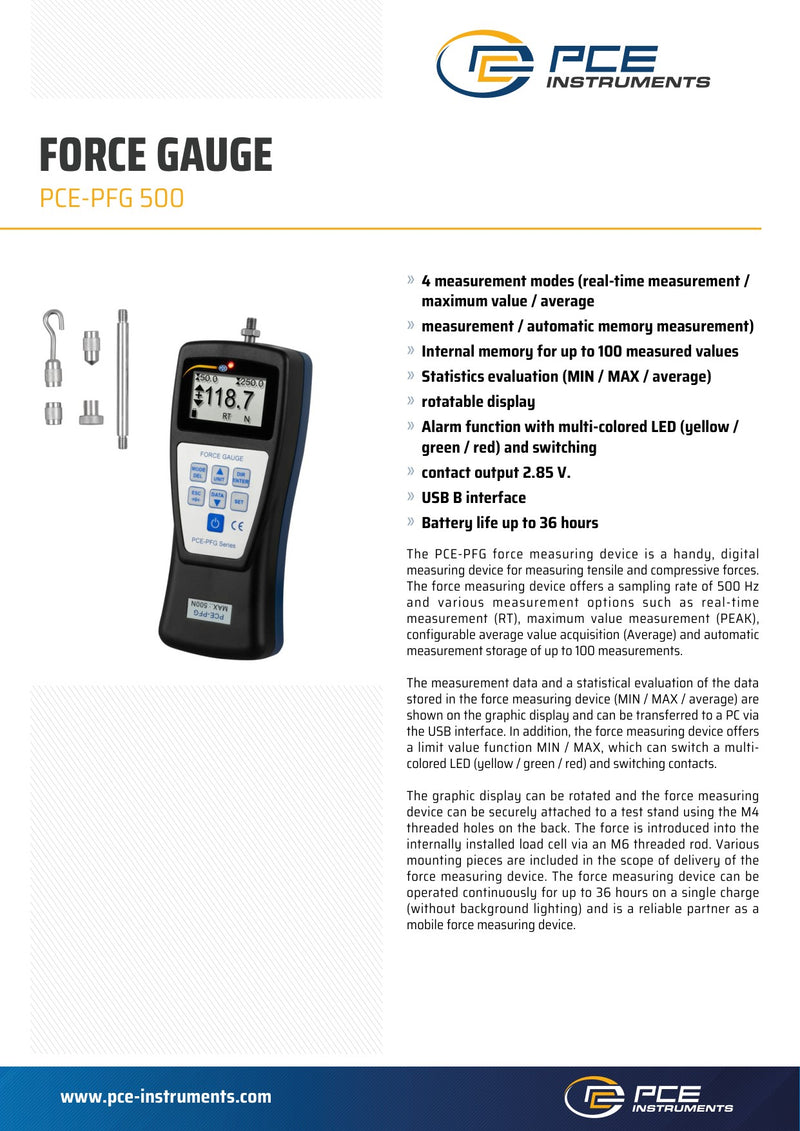

Description

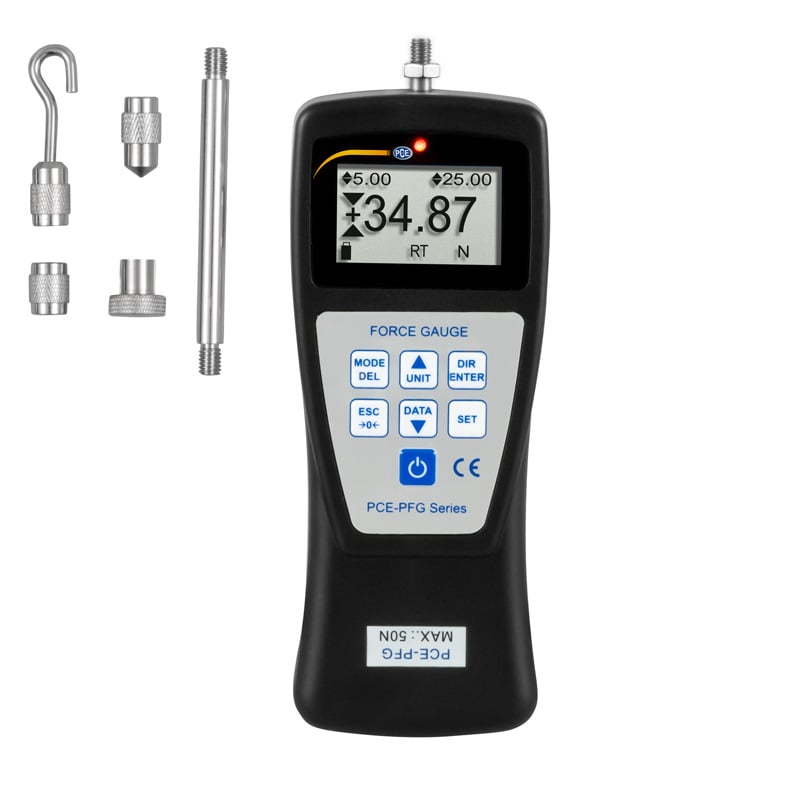

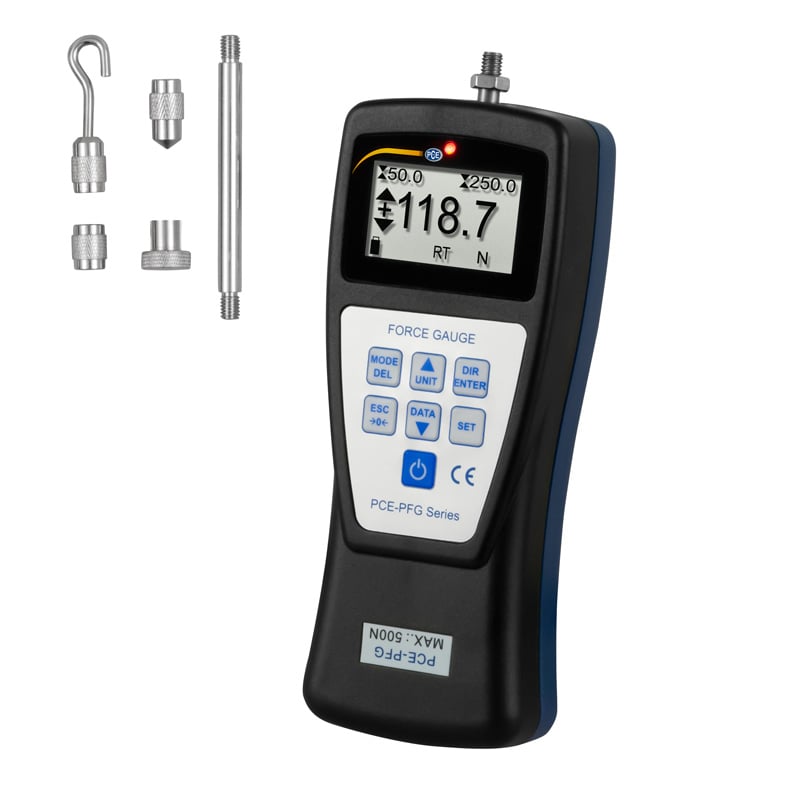

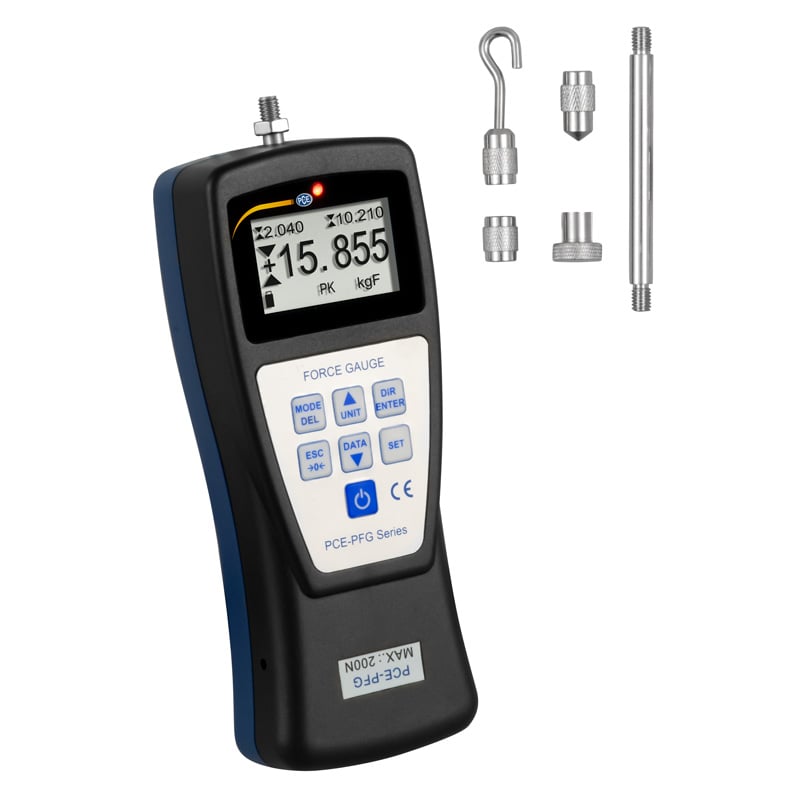

The PCE-PFG is a portable digital force gauge for measuring tensile and compressive forces. It works at a 500 Hz sampling rate and offers four measurement modes: real time (RT), peak value (PEAK), average value (Average) and automatic memory storage.
Readings and their statistical evaluation (MIN / MAX / average) are shown on the graphic display and can be transferred to a PC over the USB-B interface. The MIN / MAX limit function drives a multi-coloured LED (yellow / green / red) and a 2.85 V switching contact.
The display rotates and the instrument can be mounted on a test stand using the M4 threaded holes on the back. Battery life is up to 36 hours per charge.

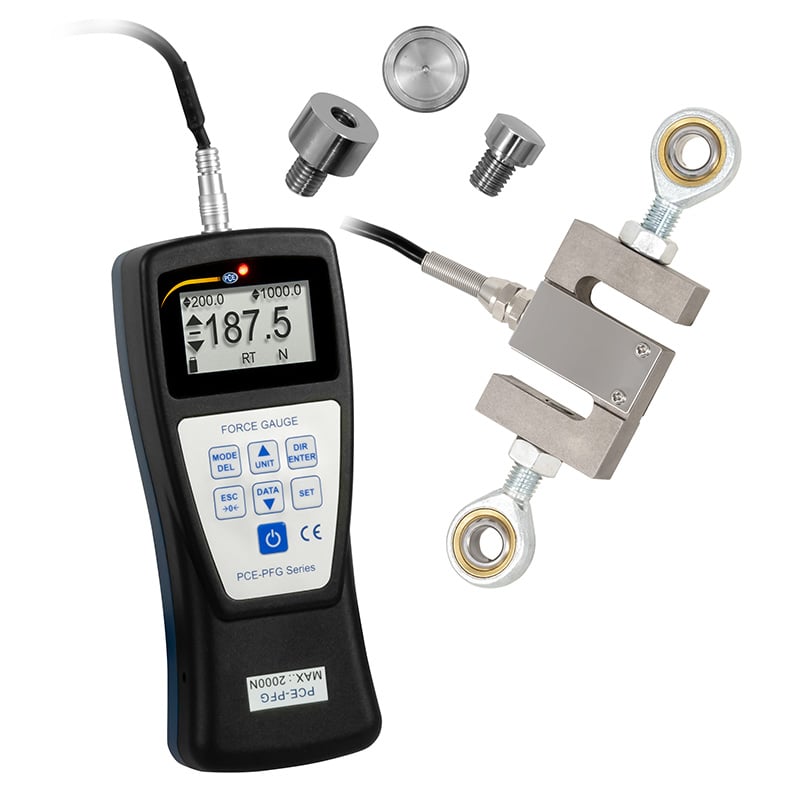

Load cell: on the 10...500 N models the load cell is internal and force is applied through an M6 x 10 mm thread. The 2000 N model uses an external S-type load cell (52 x 72 x 19 mm, M12 thread) on a 1.8 m cable.
Features
- 4 measurement modes: real time, peak, average, automatic memory
- Internal memory for 100 measurements
- MIN / MAX / average statistics
- Rotatable 1.8" graphic display
- Alarm with multi-coloured LED and 2.85 V switching contact
- USB-B interface for data transfer to a PC
- Battery life up to 36 hours
- IP54 protection class

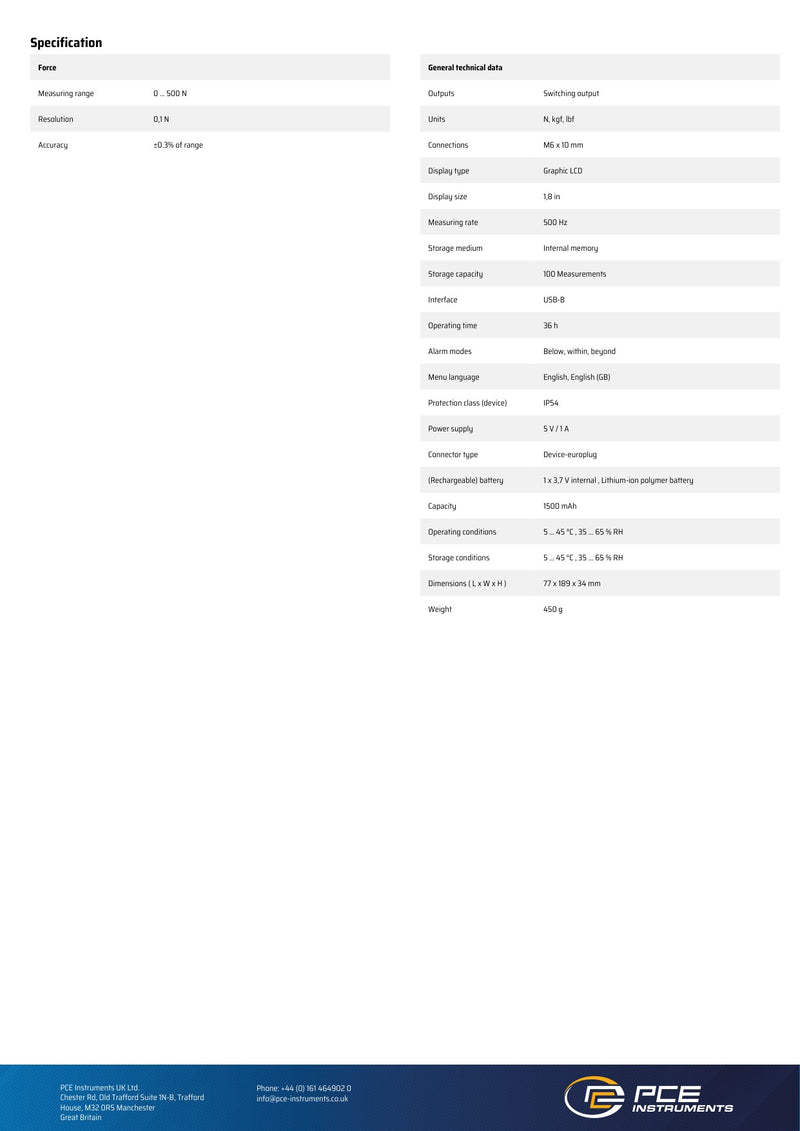

Specifications
| Model | Measuring range | Resolution | Accuracy |
|---|---|---|---|
| PCE-PFG 10 | 0 ... 10 N | 0.002 N | ±0.3 % of range |
| PCE-PFG 20 | 0 ... 20 N | 0.005 N | ±0.3 % of range |
| PCE-PFG 50 | 0 ... 50 N | 0.01 N | ±0.3 % of range |
| PCE-PFG 100 | 0 ... 100 N | 0.02 N | ±0.3 % of range |
| PCE-PFG 200 | 0 ... 200 N | 0.05 N | ±0.3 % of range |
| PCE-PFG 500 | 0 ... 500 N | 0.1 N | ±0.3 % of range |
| PCE-PFG 2K | 0 ... 2000 N | 0.5 N | ±0.3 % of range |
| Common specifications | |
|---|---|
| Measurement units | N, kgf, lbf |
| Display | 1.8" graphic LCD, rotatable |
| Measuring rate | 500 Hz |
| Memory | Internal, 100 measurements |
| Alarm modes | Below, inside, outside limits |
| Outputs | 2.85 V switching contact |
| Interface | USB-B |
| Force connection | M6 x 10 mm (10...500 N models) |
| Battery | Lithium 3.7 V / 1500 mAh, rechargeable |
| Operating time | 36 hours |
| Power supply | 5 V / 1 A |
| Protection class | IP54 |
| Operating conditions | 5 ... 45 °C, 35 ... 65 % RH non-condensing |
| Dimensions (L x W x H) | 77 x 189 x 34 mm |
| Weight | 450 g (240 g on the 2000 N model) |
Delivery Scope
Models 10 ... 500 N
- 1 x PCE-PFG force gauge
- 1 x flat head adapter Ø13 mm
- 1 x pointed head adapter
- 1 x hook adapter
- 1 x extension rod (75 mm)
- 1 x USB cable
- 1 x USB charger
- 1 x instruction manual
- 1 x plastic carrying case
2000 N model
- 1 x PCE-PFG 2K force gauge
- 1 x 2000 N S-type load cell
- 2 x M12 eye bolts
- 2 x force pads
- 1 x USB cable
- 1 x USB charger
- 1 x instruction manual
- 1 x plastic carrying case
| Code | RangeN | ResolutionN | RangeKg | Availability | Price excl. VAT | Price incl. VAT | Cart |
|---|---|---|---|---|---|---|---|
| PCE-PFG 10 | 10 | 0.002 | 1 |
€671,00
|
€832,04
|
||
| PCE-PFG 20 | 20 | 0.005 | 2 |
€632,00
|
€783,68
|
||
| PCE-PFG 50 | 50 | 0.01 | 5 |
€632,00
|
€783,68
|
||
| PCE-PFG 100 | 100 | 0.02 | 10 |
€632,00
|
€783,68
|
||
| PCE-PFG 200 | 200 | 0.05 | 20 |
€632,00
|
€783,68
|
||
| PCE-PFG 500 | 500 | 0.1 | 50 | On Order |
€632,00
|
€783,68
|
|
| PCE-PFG 2K | 2000 | 0.5 | 200 | On Order |
€1.265,00
|
€1.568,60
|
Vertical Motorized Dynamometer Stand 500 N
Force range 500 N / 50 kg / 110 lb Distance display resolution 0.02 mm Travel path 270 mm / 10.6" Speed 1 ... 500 mm/min Resolution...
View full details
Pull/Push Clamp for Cable (4mm)
None Clamping device with large opening width for pull or push test of cable, rigid material or electronic components. - Capacity 5000 N / 1,...
View full details
Ring Adapter for Dynamometer
Adapter ring for tensile tests. Diameter is 20 mm and max. capacity is 0.5 kN / 500 N / 112.4 lbs. - Useful for tension test of springs or w...
View full details
Tensile Adapter Clamp (500N, 8mm)
Adapter clamp for tensile tests. - Max. Capacity: 500 N / 112 lbs- Opening max: 8 mm 1 x Adapter clamp For tensile tests PC...
View full details
Toothed Tensile Clamp (200N)
Tensioning device for tensile tests.- Max. capacity: 0.2 kN / 200 N / 45 lbs- Max. opening: 3 mm - Threaded connection: M10 ...
View full details
Bristle-Test Clamp (500N)
Clamping device for testing bristles. - Max. Capacity: 500 N / 112 lbs 1 x Clamping device for testing bristles PCE-SJJ020 ...
View full detailsForce Gauges - Newtonmeters
