PCE-VA 20 - Anemometer
| Technical specifications | ||
| Airflow velocity measurement range |
|
|
| Airflow speed accuracy |
<20 m/s: ±(1.5% of rdg. + 0.3 m/s) >20 m/s: ±(3% of rdg. + 0.3 m/s) |
|
| Air temperature measurement range | -20 ... 60 °C / -4 ... 140 °F | |
| Air temperature accuracy | ±0.6 °C | |
| Air temperature analysis | 0.1 °C / °F | |
| Humidity measurement range | 0.1 ... 99.9 % rH | |
| Humidity accuracy |
±3 % rH (at 25 °C / 77 °F and 10...90 % rH) other: ±5 % rH |
|
| Moisture analysis | 0.1% RH | |
| Temperature response time | 60 seconds | |
| Moisture response time | 60 seconds | |
| LCD update | 1 x per second | |
| Liquid bulb temperature indicator | -20 ... +59.9 °C / -4 ... 139.8 °F | |
| Dew point temperature display | -5 ... +59.9 °C / 23 ... 139.8 °F | |
| Intensity flow indicator | 0 ... 99999 m³/min | |
| Volume flow analysis |
0.1 m³/min (0...9999.9 m³/min) 1 m³/min (10000...99999 m³/min) |
|
| Automatic shutdown | after 20 minutes of inactivity | |
| LCD size | 32.5 x 54mm / 1.28 x 2.13" (H x W) | |
| Power supply | 4 x 1.5V AAA batteries | |
| Operating conditions | 0 ... +50 °C / 32 ... 89.6 °F, <80 % rH | |
| Storage conditions | -10 ... +50 °C / 14 ... 89.6 °F, <90 % rH | |
| Dimensions | 269 x 106 x 51 mm / 10.6 x 4.1 x 2.0" | |
| Weight |
approx. 200 g / 7 oz |

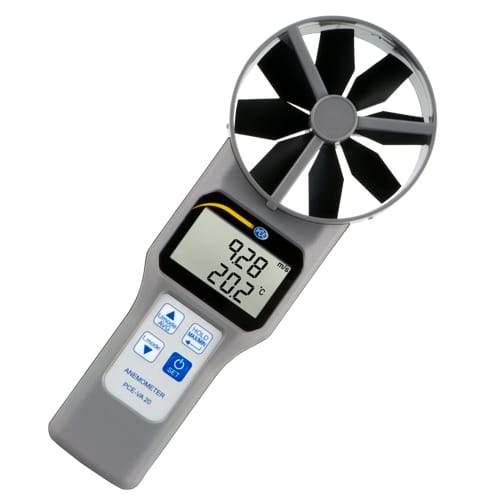

Multifunctional Anemometer PCE-VA 20
Anemometer-hygrometer-thermometer combination for assessing indoor/outdoor wind, weather, climate conditions

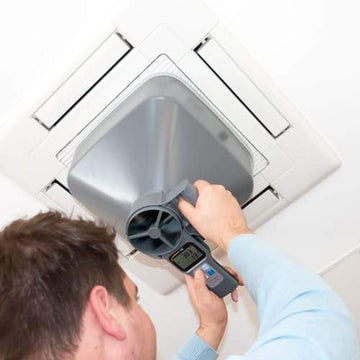

The PCE-VA 20 is a multi-function anemometer for evaluating wind, weather, indoor/outdoor climate conditions, and testing heating, ventilation and air conditioning (HVAC) systems. In addition to measuring airflow velocity (i.e. wind speed), this multi-purpose portable device measures volume flow, relative humidity (RH), air temperature, dew point temperature, and liquid bulb. This anemometer-hygrometer-thermometer combo features a 10 cm / 3.9" Ø fan impeller, an easy-to-read LCD display and functions such as screen hold, average value, maximum value, minimum value, automatic battery saver shutdown, low battery indicator and UK units selection measurement (eg ft, lb).
- Measurement of airflow velocity, volume flow, relative humidity, air temperature, dew point temperature and wet bulb temperature
- Airflow speed range: 0.2 ... 30 m/s (39.4 ... 5905.5 fpm)
- Accuracy: ±(1.5% of the measured value + 0.3 m/s) when less than 20 m/s, ±(3% of the measured value + 0.3 m/s) when more than 20 m /s
- Resolution: 0.1
- 10 cm / 3.9" Ø fan impeller

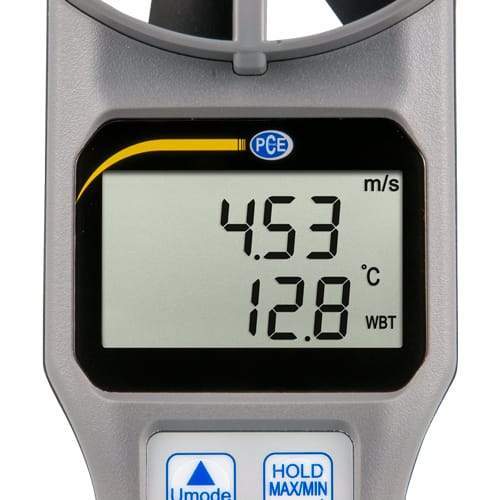

- Easy-to-read LCD screen with backlight
- Screen saver, average value, maximum value, minimum value, battery saver auto-off, low battery indicator and metric or British unit selection functions.
Package contents
1 x Multi-function Anemometer (PCE-VA 20)
4 x AAA batteries
1 x User Manual
1 x Carrying case
