Countersinks

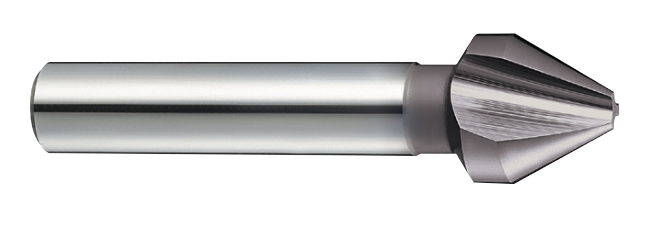

CS-HSS-60 Three-edged 60° Cutter

Φρέζα τρίκοπη 60° Hepyc CS-HSS-60, μεταλλική με κυλινδρικό στέλεχος και κωνική κεφαλή κοπής
Τεχνικά χαρακτηριστικά CS-HSS-60 - Φρεζα Τρίκοπη 60°
Φρέζα τρίκοπη 60° Hepyc CS-HSS-60, μεταλλική με κυλινδρικό στέλεχος και κωνική κεφαλή κοπής
Τεχνικά χαρακτηριστικά CS-HSS-60 - Φρεζα Τρίκοπη 60°

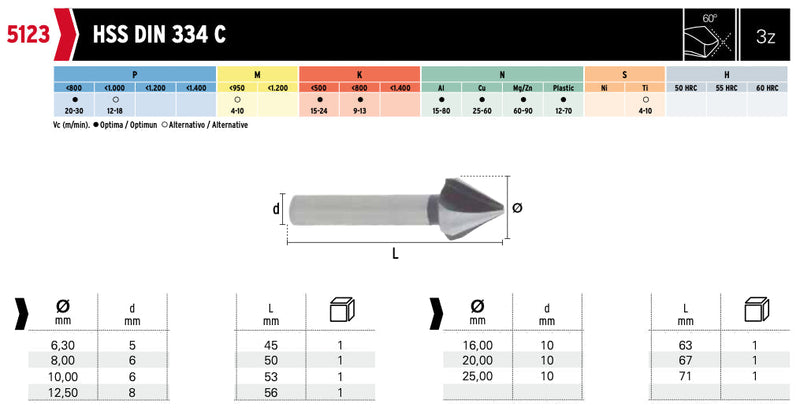

Code D1 mm D2 mm L mm Availability Price excl. VAT Cart
CS-HSS-60-6.3 6.3 5 45 1 available
€11,60
0
CS-HSS-60-8 8 6 50 1 available
€13,40
0
CS-HSS-60-10 10 6 53 1 available
€17,90
0
CS-HSS-60-12.5 12.5 8 56 1 available Αποθήκη Hepyc: 2 available. Estimated delivery 5–8 business days.
Details
Αποθήκη Hepyc: 2 available. Estimated delivery 5–8 business days.
€18,60
0
CS-HSS-60-16 16 10 63 3 available Αποθήκη Hepyc: 15 available. Estimated delivery 5–8 business days.
Details
Αποθήκη Hepyc: 15 available. Estimated delivery 5–8 business days.
€21,50
0
CS-HSS-60-20 20 10 67 2 available Αποθήκη Hepyc: 7 available. Estimated delivery 5–8 business days.
Details
Αποθήκη Hepyc: 7 available. Estimated delivery 5–8 business days.
€27,80
0
CS-HSS-60-25 25 10 71 2 available Αποθήκη Hepyc: 4 available. Estimated delivery 5–8 business days.
Details
Αποθήκη Hepyc: 4 available. Estimated delivery 5–8 business days.
€38,90
0
Conical End Mills
Wiki

Conical End Mills

The countersinks (also known as small milling cutters or countersinks) are cutting tools used to form a conical recess at the mouth of an existing hole. Their main purpose is to allow the countersinking (milling) of a screw head, so that it sits "flush" with the surface of the material.

  • Cutting Angles:90°: The most common angle for standard screws (metric thread).60°: Used mainly for edge "breaking" (deburring) and for centering.82°: Standard angle for screws according to American standards (UNC/UNF).
  • Design Types:With hole (Zero Flute): Ideal for soft materials and thin sheet metal, as they do not "clog" and provide a very smooth finish.With 3 flutes (3-Flute): The most classic type for stable cutting without vibration in harder metals.
  • Applications: In addition to countersinking screws, they are essential for removing burrs (deburring) after drilling, ensuring safety when handling components.
Read More
