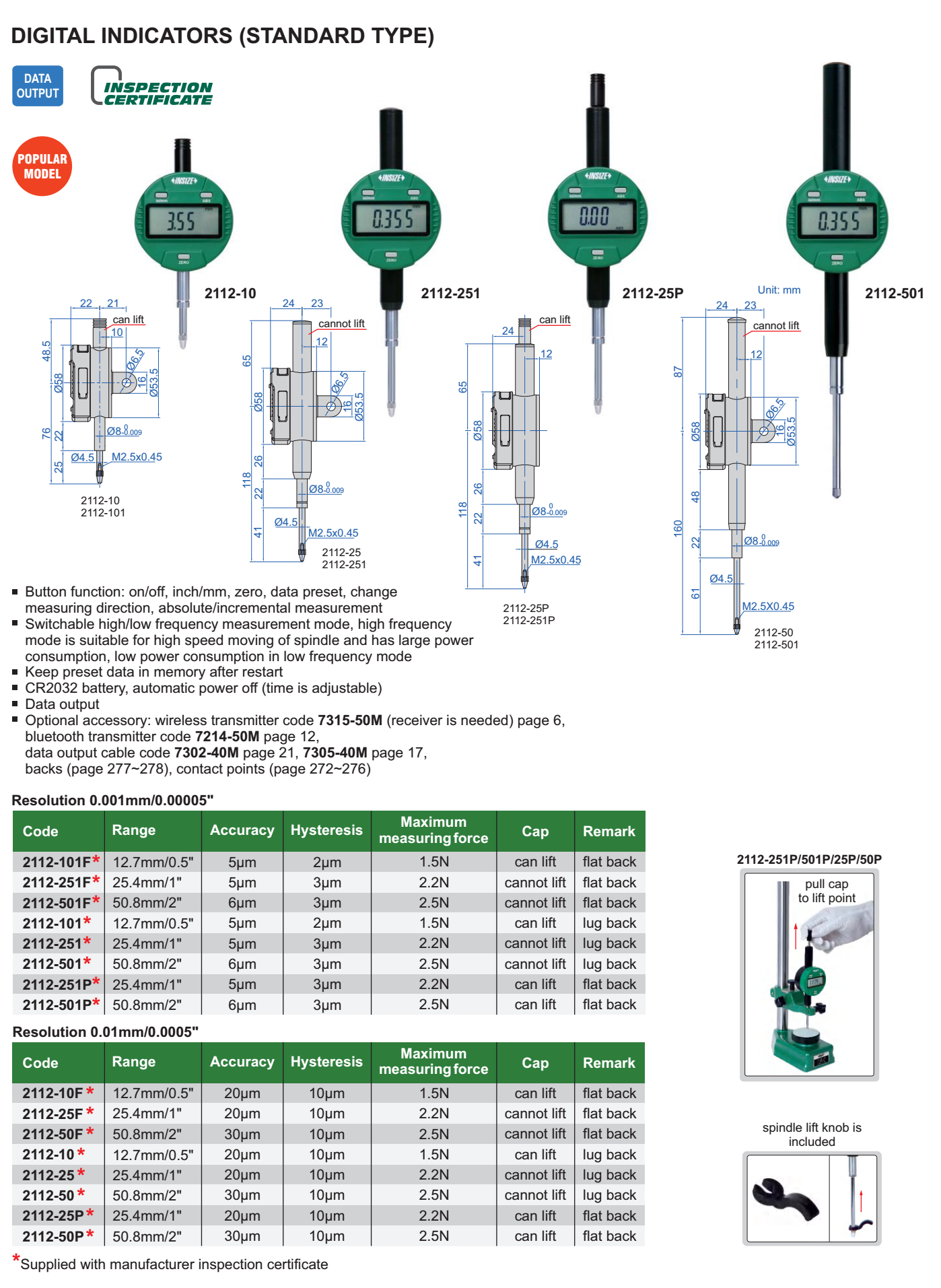

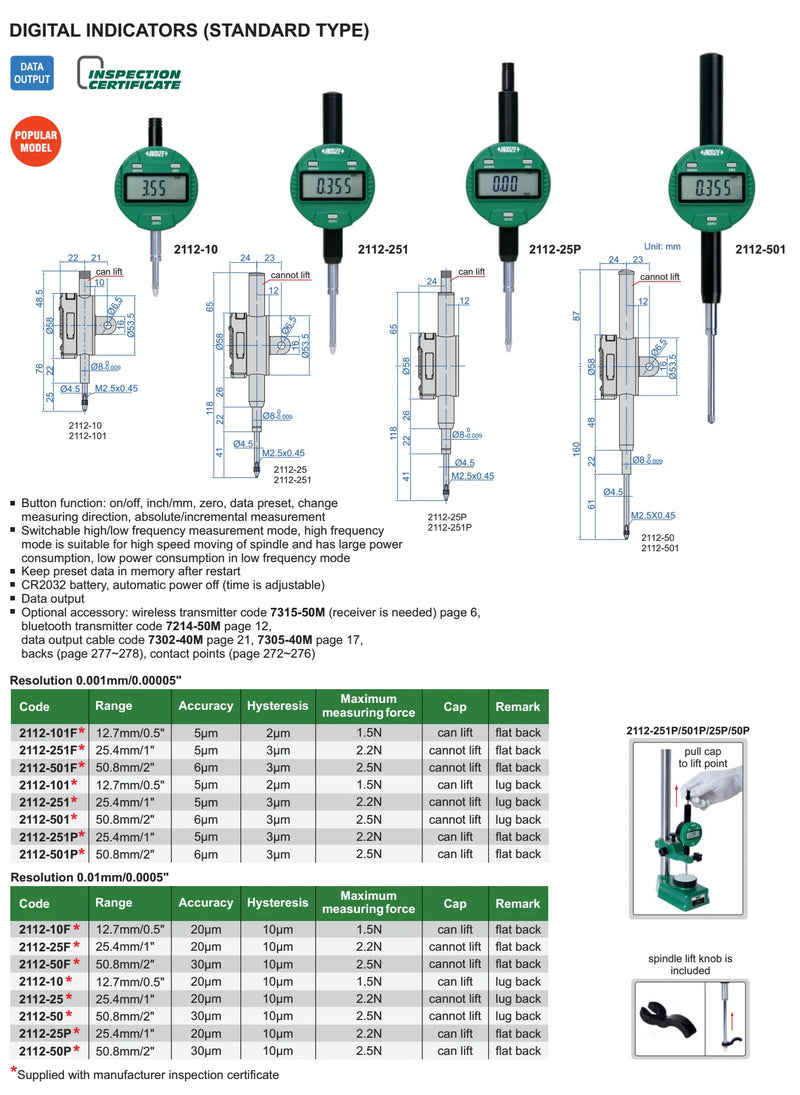

Technical Specifications
-
Resolution: 0.001mm/0.00005" or 0.01mm/0.0005" (depending on model)
-
Measuring range: 12.7mm, 25.4mm or 50.8mm
-
Accuracy: 5μm, 6μm or 20μm, 30μm (depending on model)
-
Hysteresis: 2μm, 3μm or 10μm
-
Maximum measuring force: 1.5N, 2.2N or 2.5N
-
Type of back: flat or lug back
-
Button functions: on/off, inch/mm, zeroing, preset, measurement direction change, absolute/relative measurement
-
High/low frequency operation
-
Retention of preset data after restart
-
Power supply: CR2032 battery, auto power off (adjustable time 0-99 hours) and no power off capability.
-
Data output
-
Compatible accessories: data output cable (code 7306-40, 7302-SPC3A, 7305-SPC1A), backs (page 101), contact points (page 98~100).
2 Years Warranty
INSIZE Factory
INSIZE was founded in 1995 and is one of the world’s leading manufacturers of measuring instruments and metrology equipment.
With factories in China and other countries in Asia, as well as production facilities in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability, and reliability, while being distinguished by an excellent quality-to-price ratio.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of INSIZE in Greece since 2007. We have more than 1,500 INSIZE product codes in stock, a number that is continuously increasing. In addition, we can support the entire range of the Insize catalog which includes more than 40,000 different product codes.
In our store we provide technical support for all INSIZE products through trained technicians, while ensuring high availability of spare parts, ensuring prompt service and reliability for our customers.
INSIZE Products
INSIZE offers a complete range of measuring instruments for industrial, machining and laboratory use, such as:
- Calipers and Micrometers
- Dial Indicators and Depth Gauges
- Bore Gauges, Telescopic Gauges, Vernier Height Gauges, as well as Measuring Rules
- Precision Levels, Squares, and Straightedges
- Surface Plates, Height Gauges, and Johansson Gauge Blocks
- Thread, Hole, and Shaft Gauges
- Hardness Testers, Roughness Testers, Ultrasonic Thickness Gauges and Coating Thickness Gauges
- Dynamometers, Tachometers, and Endoscopes
- CMM measuring systems, Profile Projectors, as well as Microscopes
All of its products meet European specifications, following various international quality and safety standards.
| SKU | Travel | Reading | Width | Availability |
Price
+VAT
|
Certificate |
Cart
Quote
|
|---|---|---|---|---|---|---|---|
| 2112-10 | 0-12 mm | 0.01 mm | with ear | 6 available |
+VAT
€83,00
|
5-8 business days
|
|
| 2112-10F | 0-12 mm | 0.01 mm | straight | 2 available |
+VAT
€79,00
|
5-8 business days
|
|
| 2112-101 | 0-12 mm | 0.001 mm | with ear | 2 available |
+VAT
€203,00
|
5-8 business days
|
|
| 2112-101F | 0-12 mm | 0.001 mm | straight | 5-8 business days |
+VAT
€191,00
|
5-8 business days
|
|
| 2112-25 | 0-25 mm | 0.01 mm | with ear | 3 available |
+VAT
€114,00
|
5-8 business days
|
|
| 2112-25F | 0-25 mm | 0.01 mm | straight | 5-8 business days |
+VAT
€114,00
|
5-8 business days
|
|
| 2112-25P | 0-25 mm | 0.01 mm | straight with lift cap | 5-8 business days |
+VAT
€145,00
|
5-8 business days
|
|
| 2112-251 | 0-25 mm | 0.001 mm | with ear | 1 available |
+VAT
€231,00
|
5-8 business days
|
|
| 2112-251F | 0-25 mm | 0.001 mm | straight | 5-8 business days |
+VAT
€231,00
|
5-8 business days
|
|
| 2112-251P | 0-25 mm | 0.001 mm | straight with lift cap | 5-8 business days |
+VAT
€273,00
|
5-8 business days
|
|
| 2112-50 | 0-50 mm | 0.01 mm | with ear | 1 available |
+VAT
€260,00
|
5-8 business days
|
|
| 2112-50F | 0-50 mm | 0.01 mm | straight | 5-8 business days |
+VAT
€260,00
|
5-8 business days
|
|
| 2112-50P | 0-50 mm | 0.01 mm | straight with lift cap | 5-8 business days |
+VAT
€309,00
|
5-8 business days
|
|
| 2112-501 | 0-50 mm | 0.001 mm | with ear | 5-8 business days |
+VAT
€416,00
|
5-8 business days
|
|
| 2112-501F | 0-50 mm | 0.001 mm | straight | 5-8 business days |
+VAT
€416,00
|
5-8 business days
|
|
| 2112-501P | 0-50 mm | 0.001 mm | straight with lift cap | 5-8 business days |
+VAT
€495,00
|
5-8 business days
|
