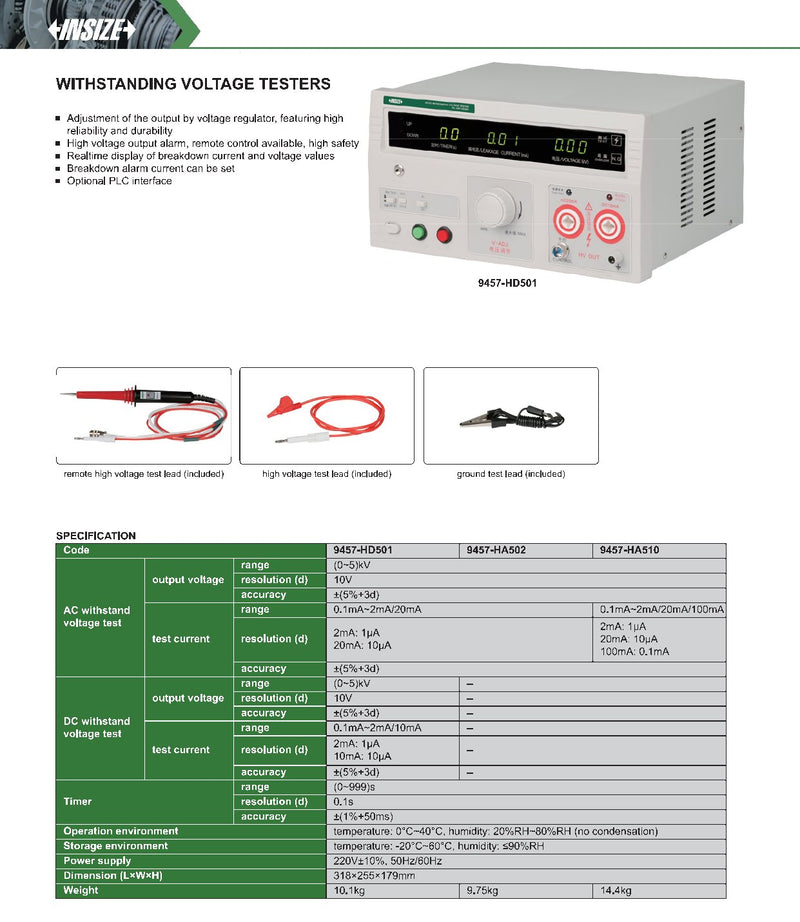

Specifications
- Model code: 9457-HD501
- AC withstand voltage test:
- Output voltage: (0~5)kV
- Voltage resolution (d): 10V
- Voltage accuracy: ±(5%+3d)
- Test current (range): 0.1mA~2mA/20mA
- Current resolution (d): 2mA: 1μA, 20mA: 10μA
- Current accuracy: ±(5%+3d)
- DC withstand voltage test:
- Output voltage: (0~5)kV
- Voltage resolution (d): 10V
- Voltage accuracy: ±(5%+3d)
- Test current (range): 0.1mA~2mA/10mA
- Current resolution (d): 2mA: 1μA, 10mA: 10μA
- Current accuracy: ±(5%+3d)
- Timer: (0~999)s, 0.1s resolution, ±(1%+50ms) accuracy
- Operating environment: 0°C~40°C, 20%RH~80%RH (no condensation)
- Storage environment: -20°C~60°C, ≤90%RH
- Power supply: 220V±10%, 50Hz/60Hz
- Dimensions (L×W×H): 318×255×179mm
- Weight: 10.1kg
- Functions/features: output adjustment via voltage regulator, real-time display of breakdown current and voltage, settable breakdown current alarm, high-voltage output alarm, remote control capability, optional PLC interface
- Standard delivery: main unit (1 pc), remote high voltage test lead (9457-REMOTE) (1 pc), high voltage test lead (1 pc), ground test lead (1 pc)
Description

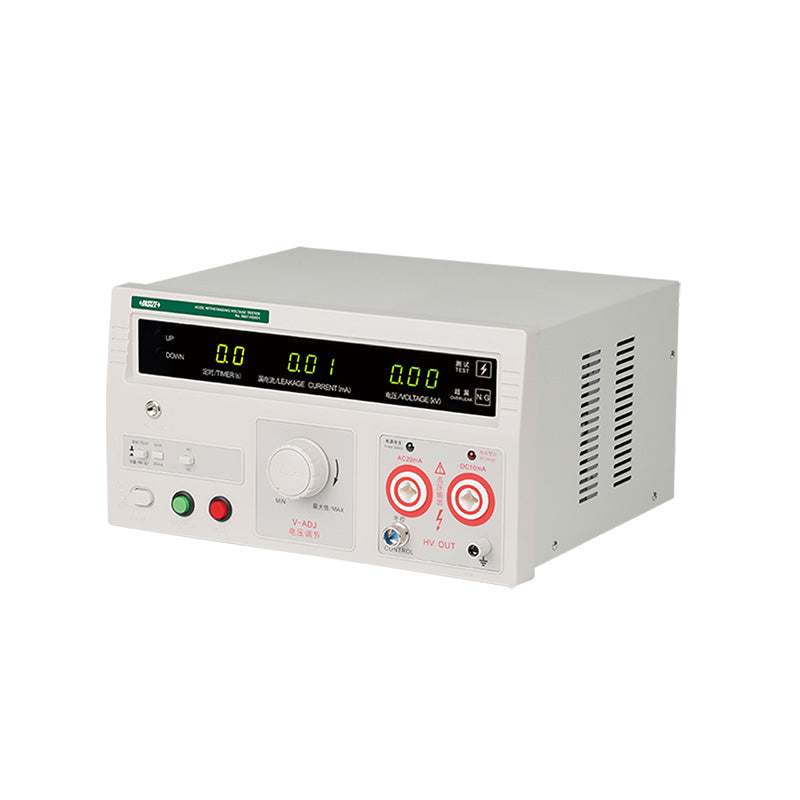

The 9457-HD501 (0~5kV) withstanding voltage tester is used for electrical insulation (hipot) testing on equipment and electrical/electronic components by applying high AC or DC voltage and measuring leakage/breakdown current. It supports safety and quality control testing in production, labs, and maintenance, with a test timer and adjustable alarm limits.
| Code | AC Withstand Voltage | AC Leakage Current | DC Withstand Voltage | Availability | Price excl. VAT | Price incl. VAT | Certificate | Cart |
|---|---|---|---|---|---|---|---|---|
| 9457-HD501 | 5kV | 2mA/20mA | 5kV | On Order |
€813,00
|
€1.008,12
|
||
| 9457-HA502 | 5kV | 2mA/20mA | no | On Order |
€556,00
|
€689,44
|
||
| 9457-HA510 | 5kV | 2mA/20mA/100mA | no | On Order |
€1.031,00
|
€1.278,44
|
||

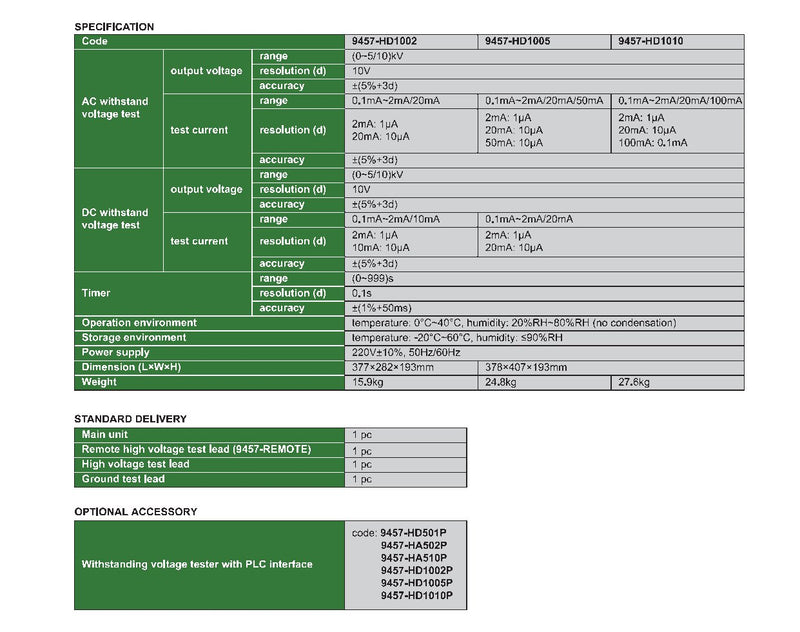

| 9457-HD1002 | 5/10kV | 2mA/20mA | 5/10kV | On Order |
€1.232,00
|
€1.527,68
|
||
| 9457-HD1005 | 5/10kV | 2mA/20mA/50mA | 5/10kV | On Order |
€2.146,00
|
€2.661,04
|
||
| 9457-HD1010 | 5/10kV | 2mA/20mA/100mA | 5/10kV | On Order |
€3.929,00
|
€4.871,96
|
