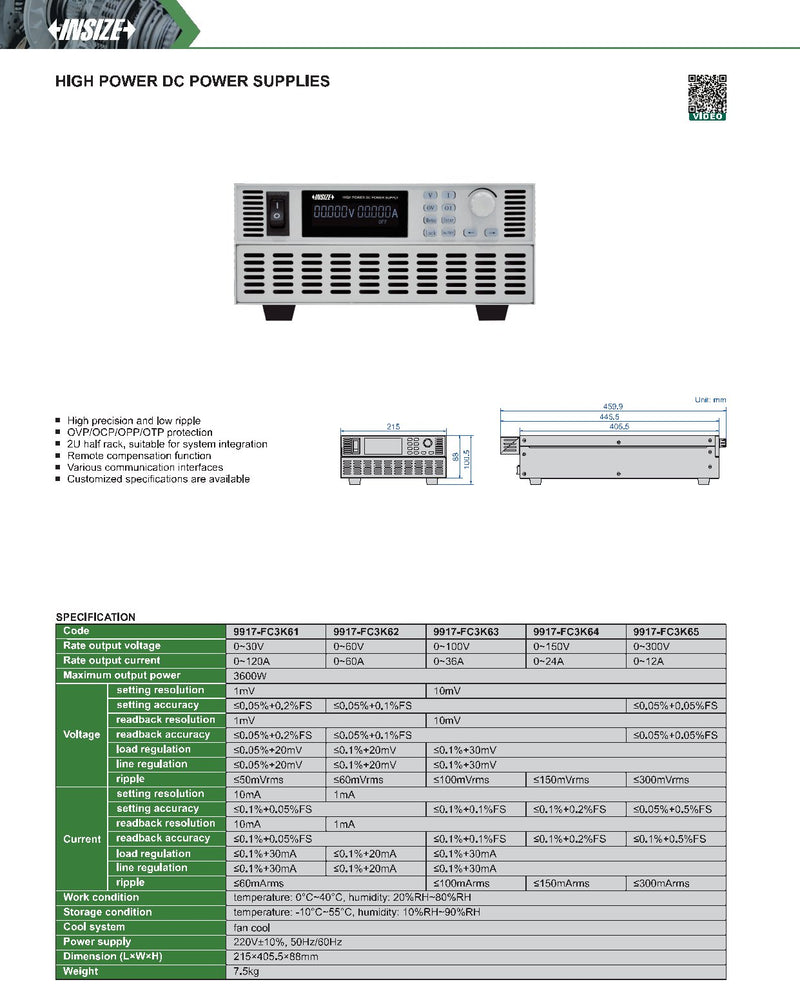

Specifications
- Code / Model: 9917-FC3K61
- Rated output voltage: 0~30V
- Rated output current: 0~120A
- Maximum output power: 3600W
- Voltage setting resolution: 1mV
- Voltage setting accuracy: ≤0.05%+0.2%FS
- Voltage readback resolution: 1mV
- Voltage readback accuracy: ≤0.05%+0.2%FS
- Voltage load regulation: ≤0.05%+20mV
- Voltage line regulation: ≤0.05%+20mV
- Voltage ripple: ≤50mVrms
- Current setting resolution: 10mA
- Current setting accuracy: ≤0.1%+0.05%FS
- Current readback resolution: 10mA
- Current readback accuracy: ≤0.1%+0.05%FS
- Current load regulation: ≤0.1%+30mA
- Current line regulation: ≤0.1%+30mA
- Current ripple: ≤60mArms
- Operating conditions: 0°C~40°C, 20%RH~80%RH
- Storage conditions: -10°C~55°C, 10%RH~90%RH
- Cooling: fan cool
- Power supply: 220V±10%, 50Hz/60Hz
- Dimensions (L×W×H): 215×405.5×88mm
- Weight: 7.5kg
- Protections: OVP / OCP / OPP / OTP
- Form factor: 2U half rack (suitable for system integration)
- Functions: remote compensation
- Interfaces: various communication interfaces
Description

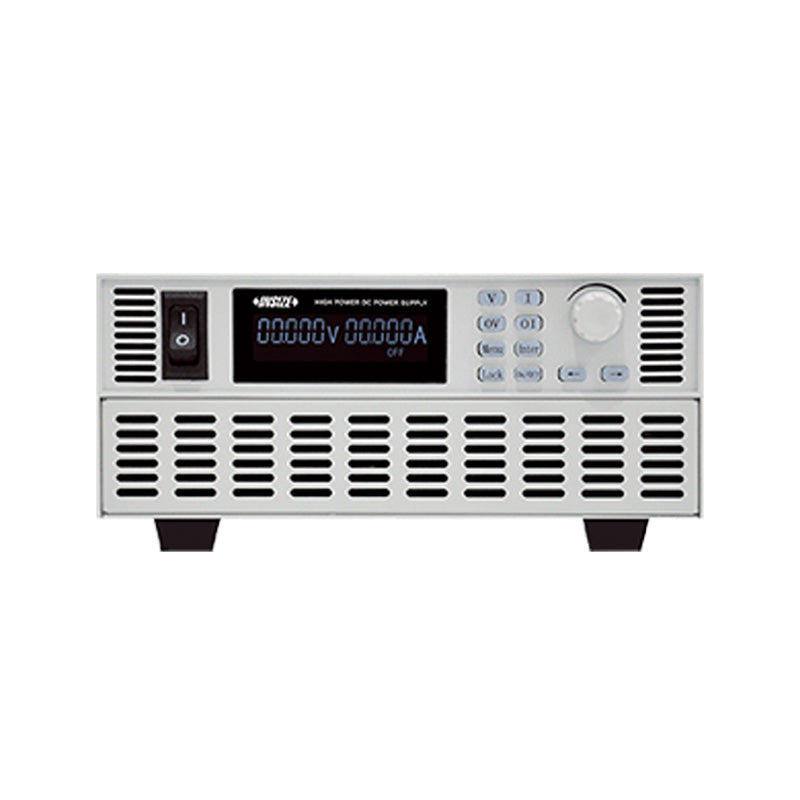

The 9917-FC3K61 is a high-power DC power supply for adjustable voltage and current output in laboratory and industrial applications. It is used to power and test DC loads/systems, with OVP/OCP/OPP/OTP protection, low ripple performance, and a 2U half-rack format for system integration.
2 Years Warranty
INSIZE Factory
INSIZE was founded in 1995 and is one of the world’s leading manufacturers of measuring instruments and metrology equipment.
With factories in China and other countries in Asia, as well as production facilities in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability, and reliability, while being distinguished by an excellent quality-to-price ratio.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of INSIZE in Greece since 2007. We have more than 1,500 INSIZE product codes in stock, a number that is continuously increasing. In addition, we can support the entire range of the Insize catalog which includes more than 40,000 different product codes.
In our store we provide technical support for all INSIZE products through trained technicians, while ensuring high availability of spare parts, ensuring prompt service and reliability for our customers.
INSIZE Products
INSIZE offers a complete range of measuring instruments for industrial, machining and laboratory use, such as:
- Calipers and Micrometers
- Dial Indicators and Depth Gauges
- Bore Gauges, Telescopic Gauges, Vernier Height Gauges, as well as Measuring Rules
- Precision Levels, Squares, and Straightedges
- Surface Plates, Height Gauges, and Johansson Gauge Blocks
- Thread, Hole, and Shaft Gauges
- Hardness Testers, Roughness Testers, Ultrasonic Thickness Gauges and Coating Thickness Gauges
- Dynamometers, Tachometers, and Endoscopes
- CMM measuring systems, Profile Projectors, as well as Microscopes
All of its products meet European specifications, following various international quality and safety standards.
| SKU | Rated output voltage | Rated output current | Maximum output power | Availability |
Price
+VAT
|
Certificate |
Cart
Quote
|
|---|---|---|---|---|---|---|---|
| 9917-FC3K61 | 0~30V | 0~120A | 3600W | On Order |
+VAT
€2.033,00
|
5-8 business days
|
|
| 9917-FC3K62 | 0~60V | 0~60A | 3600W | On Order |
+VAT
€2.033,00
|
5-8 business days
|
|
| 9917-FC3K63 | 0~100V | 0~36A | 3600W | On Order |
+VAT
€2.033,00
|
5-8 business days
|
|
| 9917-FC3K64 | 0~150V | 0~24A | 3600W | On Order |
+VAT
€2.033,00
|
5-8 business days
|
|
| 9917-FC3K65 | 0~300V | 0~12A | 3600W | On Order |
+VAT
€2.033,00
|
5-8 business days
|
