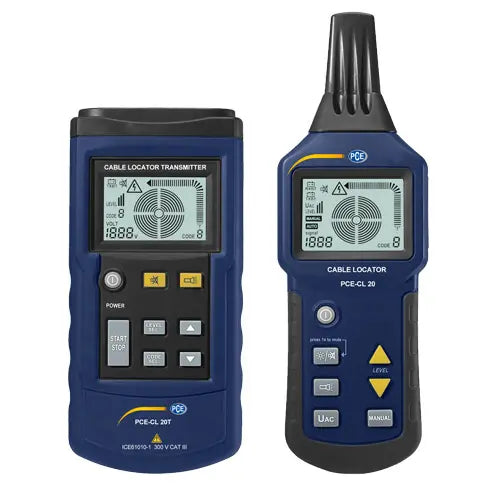

PCE Instruments PCE-CL 20 cable locator set with transmitter and receiver, blue, LCD displays and control keys
PCE Instruments PCE-CL 20 cable locator set with transmitter and receiver, blue, LCD displays and control keys

Availability & price

Code Availability excl. VATincl. VAT Cart
PCE-CL 20
€356,00
€441,44
0
  • 125 kHz output signal
  • Transmitter and receiver set
  • Finds live and dead wires
  • Auto, manual and UAC modes
  • Backlit LCD and LEDs

The PCE-CL 20 is a cable locator for tracing live and voltage-free electrical wires. It also locates metallic and non-metallic gas or water pipes, identifies short circuits and follows lines inside walls or under flooring.

The set has two units: a signal generator (transmitter) and a receiver. Both have bright LEDs for dark or dimly lit areas, and the receiver has a backlit LCD. The transmitter sends a 125 kHz signal and works on one- or two-pole circuits, with automatic, manual and UAC measuring modes.

Highlights

  • Output signal: 125 kHz
  • Works on one- or two-pole circuits
  • Automatic, manual and UAC measuring modes
  • Locates hidden cables, wires or pipes
  • Identifies short circuits and fuses
  • Bright LEDs on transmitter and receiver
  • Backlit LCD on the receiver
  • Includes clips, tips, test leads, ground rod
Technical specification
Output125 kHz
External Voltage Identification AreaDC 12 ... 400 V ± 2.5%; AC 12 ... 400 V (50 ... 60 Hz) ± 2.5%
DisplayLCD
Maximum VoltageMax. 400 V AC / DC
Overvoltage CategoryCAT III 300 V
Pollution Degree2
Power Supply9 V battery
Power Consumption (minimum voltage)approximately 31 mA
Power Consumption (maximum voltage)about 115 mA
BackupF 0.5 A 500 V, 6.3 mm x 32 mm / 0.24 x 1.25in
Operating Conditions0 ... +40 ° C/+32 ... +72 ° F
rel. Humidity <80%
Storage Conditions-20 ... +60 °C /+12 ... +92 ° F
rel. Humidity <80%
Dimensions190 mm x 89 mm x 42.5 mm
7.48 in x 3.50 in x 1.67 in
Weight420 g / 0.92 lbs (including battery)
Technical specification for cable detector (receiver)
Detection Depthdepends on material and the particular application
Pole Applicationabout 0 ... 2 m / 0 ... 6.56 ft
Bipolar Applicationabout 0 ... 0.5 m / 0 ... 1.64 ft
Simple LoopUp to 2.5 m / 8.2021 ft
Grid Voltage Detectionabout 0 ... 0.4 m / 0 ... 1.31 ft
DisplayLCD
Power Supply6 x 1.5V AAA batteries
Power Consumption (minimum voltage)about 32 mA
Power Consumption (maximum voltage)approximately 89 mA
Environmental Conditions0 ... +40 °C / +32 ... +72 ° F
rel. Humidity <80%
Storage Conditions-20 ... +60 °C / +12 ... +92 ° F
rel. Humidity <80%
Dimensions241.5 mm x 78 mm x 38.5 mm
9.5 in x 3.07 in x 1.51 in
Weight350 g / 0.77 lbs (including batteries)
  • 1×PCE-CL 20 cable locator (1 x transmitter and 1 x receiver)
  • 2×alligator clips
  • 2×measuring tips
  • 2×test leads
  • 1×grounding rod
  • 1×carrying strap
  • 1×carrying bag
  • 1×9 V battery
  • 6×1.5 V AAA batteries
  • 1×user manual
Datasheet Technical datasheet Manual User manual
