Name: Power Analyzer
Brand: PCE Instruments
SKU: PCE-PA 8000
Price: 2161.32 EUR
Availability: InStock

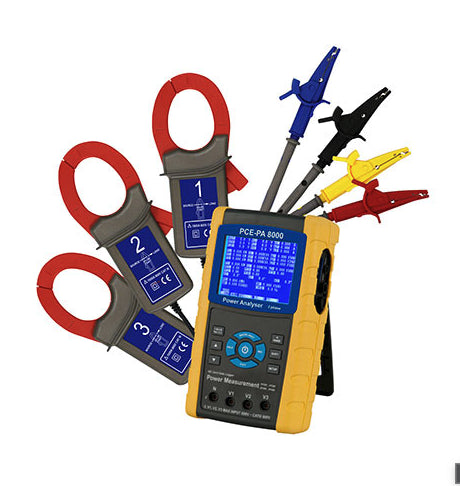

Αναλυτής ισχύος PCE Instruments PCE-PA 8000 με έγχρωμη οθόνη, 3 δαγκάνες ρεύματος και καλώδια μέτρησης

Αναλυτής ισχύος PCE-PA 8000 PCE Instruments σε ηλεκτρικό πίνακα, με έγχρωμη οθόνη και καλώδια μέτρησης

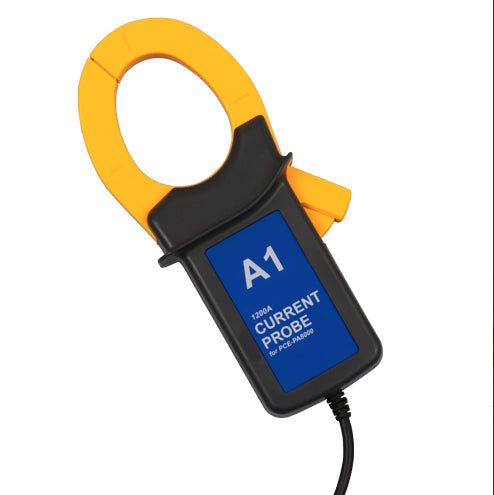

Αισθητήρας ρεύματος δαγκάνα PCE Instruments A1, μαύρο σώμα με κίτρινη δαγκάνα, για PCE-PA 8000

Αναλυτής ισχύος PCE Instruments PCE-PA 8000 με μπλε οθόνη LCD και μενού ρυθμίσεων, Power Analyzer 3 phase

Αναλυτής ισχύος PCE Instruments PCE-PA 8000 σε χρήση σε ηλεκτρικό πίνακα, με έγχρωμη οθόνη και ακροδέκτες μέτρησης

Description

Voltage (ACV)
Measuring range	Reading	Accuracy
10 V ... 600 V (phase to neutral)	0.1 V	±(0.5 % + 0.5 V)
10 V ... 600 V (phase to neutral)
Current (ACA)
Measuring range	Reading	Accuracy
20 A	0.001 A (< 10 A) 0.01 A (≥ 10 A)	±(0.5 % + 0.1 V)
200 A	0.01 A (< 100 A) 0.1 A (≥ 100 A)	±(0.5 % + 0.5 A)
1200 A	0.1 A (< 1000 A) 1 A (≥ 1000 A)	±(0.5 A + 5 A)
Active power
Measuring range	Reading	Accuracy
0 KW ... 9.999 KW	0.001 KW	±(1 % + 0.008 KW)
10 KW ... 99.99 KW	0.01 KW	±(1 % + 0.008 KW)
100 KW ... 999.9 KW	0.1 KW	±(1 % + 0.8 KW)
1 MW ... 9.999 MW	0.001 MW	±(1 % + 0.008 MW)
Apparent power
Measuring range	Reading	Accuracy
0 KVA ... 9.999 KVA	0.001 KVA	±(1 % + 0.008 KVA)
10 KVA ... 99.99 KVA	0.01 KVA	±(1% + 0.08 KVA)
100 KVA ... 999.9 KVA	0.1 KVA	±(1% + 0.8 KVA)
1 MVA ... 9.999 MVA	0.001 MVA	±(1% + 0.008 MVA)
Reactive power
Measuring range	Reading	Accuracy
0 KVAR ... 9.999 KVAR	0.001 KVAR	±(1% + 0.008 KVAR)
10 KVAR ... 99.99 KVAR	0.01 KVAR	±(1% + 0.08 KVAR)
100 KVAR ... 999.9 KVAR	0.1 KVAR	±(1% + 0.8 KVAR)
1 MVAR ... 9,999 MVAR	0.001 MVAR	±(1% + 0.008 MVAR)
Active energy
Measuring range	Reading	Accuracy
0 KWh ... 9.999 KWh	0.001 KWh	±(1% + 0.008 KWh)
10 KWh ... 99.99 KWh	0.01 KWh	±(1% + 0.08 KWh)
100 KWh ... 999.9 KWh	0.1 KWh	±(1% + 0.8 KWh)
1 MWh... 9,999 MWh	0.001 MWh	±(1% + 0.008 MWh)
Apparent energy
Measuring range	Reading	Accuracy
0 KVAh ... 9.999 KVAh	0.001 KVAh	±(2% + 0.008 KVAh)
10 KVAh ... 99.99 KVAh	0.01 KVAh	±(2 % + 0.08 KVAh)
100 KVAh ... 999.9 KVAh	0.1 KVAh	±(2 % + 0.8 KVAh)
1 MVAh... 9.999 MVAh	0.001 MVAh	±(2 % + 0.008 MVAh)
Reactive energy
Measuring range	Reading	Accuracy
0 KVARh ... 9.999 KVARh	0.001 KVARh	±(2 % + 0.008 KVARh)
10 KVARh ... 99.99 KVARh	0.01 KVARh	±(2 % + 0.08 KVARh)
100 KVARh ... 999.9 KVARh	0.1 KVARh	±(2 % + 0.8 KVARh)
1 MVARh... 9,999 MVARh	0.001 MVARh	±(2 % + 0.008 MVARh)
Power factor
Measuring range	Reading	Accuracy
0... 1	0,01	±0.04
Phase angle
Measuring range	Reading	Accuracy
-180º ... 180º	0.1º	±1º
Frequency
Measuring range	Reading	Accuracy
45 Hz ... 65 Hz	0.1 Hz	0.1 Hz
General Features
Display	3.7" / 94.0 mm LCD (320 x 240 pixels) with backlight
Electrical parameters	ACV, ACA, active power, apparent power, power factor, phase angle, network frequency
Voltage range	10 ... 600 ACV, auto range selection
Safety standards	Complies with IEC 1010, CAT III 600 V
ACV input resistance	10 MΩ
Operating frequency of current clamps	40 Hz ... 1 kHz
Tested operating frequency of current clamps	45 Hz ... 65 Hz
Overload protection	ACV / 720 V RMS
ACA	1300 A with current clamps
Memory	SD card, up to 16 GB
Real-time display refresh rate	1 second
Data logger	Yes, fully integrated
Data logger sampling rate	Adjustable, 2 ... 7,200 seconds
Data output	USB or RS-232, depending on connection cable
Operating temperature	0º C ... 50º C / 32 °F ... 122 °F
Operating humidity	< 80 % RH
Power	8 x 1.5 V AA batteries / AC power supply
Input current	Meter: 300 mA DC clamp: 34 mA DC
Clamp jaw diameter	2" / 50 mm
Weight	Meter: 948 g / 2.09 lbs (with batteries) Clamp: 467 g / 1.03 lbs (with cable)
Dimensions	Meter: 225 x 125 x 64 mm / 8.8 x 4.9 x 2.5"
	Clamp: 210 x 64 x 33 mm / 8.2 x 2.5 x 1.2"
	Jaw: 86 mm / 3.3" (external)

PCE-PA 8000 Power Analyzer
for measuring current, voltage, and current consumption in real time / Built-in data logger with adjustable rate / Includes current clamps, crocodile clips, test cables, SD card memory

The PCE-PA 8000 is a handheld power analyzer used for testing and inspecting 3-phase / 4-wire, 3-phase / 3-wire, single-phase / 2-wire, and single-phase / 3-wire electrical circuits. This user-friendly power quality meter not only measures multiple electrical parameters in real time but also stores measurement data in .xls format on the included SD memory card for quick and easy data transfer and analysis on a computer.

The PCE-PA 8000 features a clear 3.7" / 94 mm (320 x 240 pixel) LCD display with backlight and provides True RMS measurements of current and voltage, power factor (PF), phase angle (Φ), active power, apparent power, and reactive power. The three included current clamps can be used on cables with a diameter of 2.0" / 50 mm.

- True RMS measurement for ACA, ACV
- True power: W, KW, MW
- VA, KVA, MVA, VAR, KVAR, MVAR
- PF (power factor), phase angle (Φ)
- KWH, KVAH, KVARH, PFH
- Voltage measurement range: 10 ... 600 ACV
- Current measurement range: 0.2 ... 1200 ACA
- Real-time measurement of current, voltage, and power consumption
- Built-in data logger with adjustable rate: 2 ... 7,200 sec.
- Stores measurement data sets with date and time
- Complies with IEC 1010 and CAT III 600 V safety standards
- Includes current clamps, crocodile clip clamps, test cables, SD card memory
