| General device specifications | |
| Display | 2" color LCD screen |
| Screen resolution | 220 x 176 pixel |
| Power supply | Rechargeable battery or USB port |
| Charging | The gauge takes measurements even while the battery is charging |
| Sampling time | Adjustable interval: 30 seconds, 1 minute, 2 minutes, or 5 minutes |
| Memory | Internal, stores up to 5000 measurements with date and time matching |
| Exit | USB |
| Particle specifications | |
| Particle channels | PM 2.5 / PM10 |
| Particle sizes (in microns) | 2.5 μm, 10 μm |
| Particle concentrations | 0 ... 2000 μg / m³ |
| Reading | 1 μg / m³ |
| Temperature specifications | |
| Temperature measurement range | 0 ... +50 °C / +32 ... +122 °F |
| Accuracy | ± 1 °C |
| Reading | 0.1 °C |
| Units | Degrees Celsius (°C) or Fahrenheit (°F) |
| Relative humidity (RH) specifications | |
| Humidity measurement range | 0 ... 100 % RH |
| Accuracy |
± 3.5 % RH (20 ... 80 % RH) ± 5 % RH (0 ... 20 % RH / 80 ... 100 % RH) |
| Reading | 0.1 % RH |
PCE-MPC 10 Particle concentration - air quality meter/
Handheld portable particle meter for monitoring particle (PM) concentrations in the air / Particle sizes 2.5 μm and 10 μm / Measures air temperature and relative humidity / Internal memory stores up to 5000 measurements with date and time / Built-in data logger with adjustable sampling time
The PCE-RCM 10 is a portable particle counter used to monitor particle (PM) concentrations in the air and assess indoor air quality (IAQ). The particle counter also measures air temperature and relative humidity (RH) and is powered either by the built-in rechargeable battery or by alternating current via the USB cable, through which the battery is also recharged. The particle counter takes measurements even while the battery is charging, allowing continuous IAQ monitoring. The built-in data logger has an adjustable sampling time of 30 seconds, 1 minute, 2 minutes, or 5 minutes, while the internal memory stores up to 5000 measurements with date and time stamping.

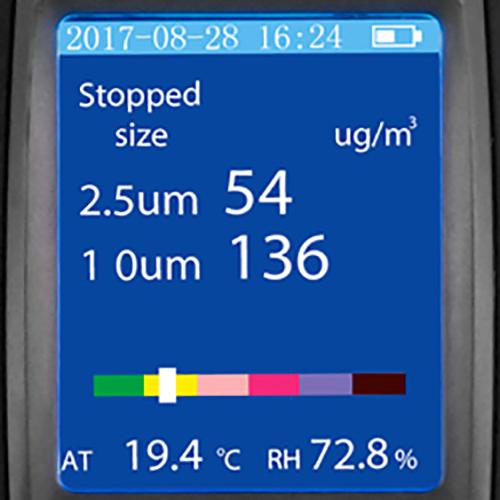

The meter displays all measurements simultaneously on the device's 2" color LCD screen. Temperature measurement can be shown in either Celsius or Fahrenheit. Maximum PM values are visually represented with a color gradient scale, where green corresponds to a safe particle concentration and purple to a dangerous concentration for humans.
Since the PCE-RCM 10 particle counter monitors PM 2.5 and PM 10 particles, the device has many practical applications in health and safety sectors. HVAC (heating, ventilation, and air conditioning) technicians use PM 2.5 and PM 10 particle counters for HVAC system performance and filtration checks. Additionally, safety professionals in industrial workplace environments rely on PM 2.5 and PM 10 particle counters when assessing health and safety risks related to hazardous and flammable dust.
- Particle channels (PM): PM 2.5, PM 10- Particle sizes (in microns): 2.5 μm, 10 μm
- Temperature measurement range: 0 ... +50 °C / +32 ... +122 °F
- Humidity measurement range: 0 ... 100 % RH
- 2" color LCD display
- Screen resolution 220 x 176 pixels
- Displays temperature in degrees Celsius (°C) or Fahrenheit (°F)
- Powered by rechargeable battery or AC power (via USB port)
- Ergonomic design
- Includes support base
- Features internal memory for storing up to 5000 measurements
- Data is stored with corresponding time and date
- Performs measurements even while charging the battery
- Built-in data logger with adjustable sampling time: 30 seconds, 1 minute, 2 minutes, or 5 minutes
- Programmable alarm and automatic power-off function for battery saving

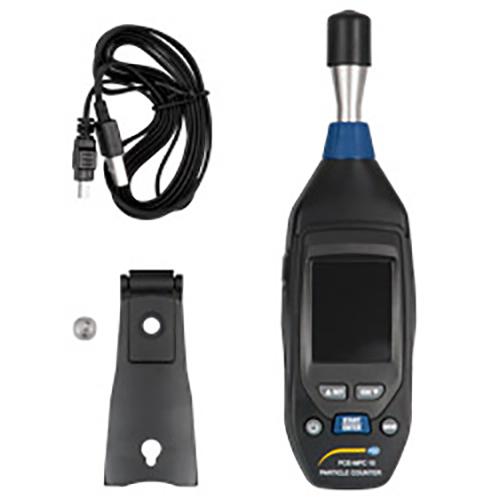

1 x Support base
1 x USB cable
1 x User manual
1 Year Warranty
PCE Instruments Factory
The PCE Deutschland GmbH, known as PCE Instruments, is a German company based in Meschede, which from 1999 to the present has established itself internationally as a reliable manufacturer and supplier of measuring, testing, and weighing instruments. The company offers an exceptionally wide range of instruments – from vibration, humidity, noise, and temperature meters to precision scales, analyzers, sensors, and data loggers – covering every need in industry, laboratories, and research.
PCE Instruments products are used in a wide range of sectors such as industrial production, quality control, equipment maintenance and assurance, environmental measurement, energy inspection, as well as education and scientific research. With a combination of know-how, reliability, and flexibility, the company provides complete solutions that ensure accurate results and contribute to improving measurement and testing processes in every professional sector.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of PCE Instruments in Greece since 2015. We have a large variety of Pce products in stock, which is continuously increasing. In addition, we can support the entire range of its catalog, which includes more than 5,000 different product codes.
In our store we provide technical support for all PCE Instrumentrs products via trained technicians, while ensuring high availability of spare parts, ensuring prompt service and reliability for our customers.
All of its products meet European specifications, following various international quality and safety standards.
