CODEPCE-LMD 10
CODEPCE-LMD 10
Photometer - 400,000 lux (includes software)
USBPc SoftwareMemory
- Photometer with external probe
- Measuring range 0 ... 400 kLux
- Sampling rate 4 Hz
- Micro-USB interface
- Lux and footcandle units
- Optional ISO calibration certificate
Same-day dispatchfor orders placed by 15:00
Free shippingon orders over €80 (incl. VAT)
ISO 17025 calibrationupon request
Availability & price
| Code | Availability | excl. VAT | incl. VAT | Certificate | Cart |
|---|---|---|---|---|---|
| PCE-LMD 10 | 1 in stock |
€270,00
|
€334,80
|
Description
- Photometer with external probe
- Measuring range 0 ... 400 kLux
- Sampling rate 4 Hz
- Micro-USB interface
- Lux and footcandle units
- Optional ISO calibration certificate

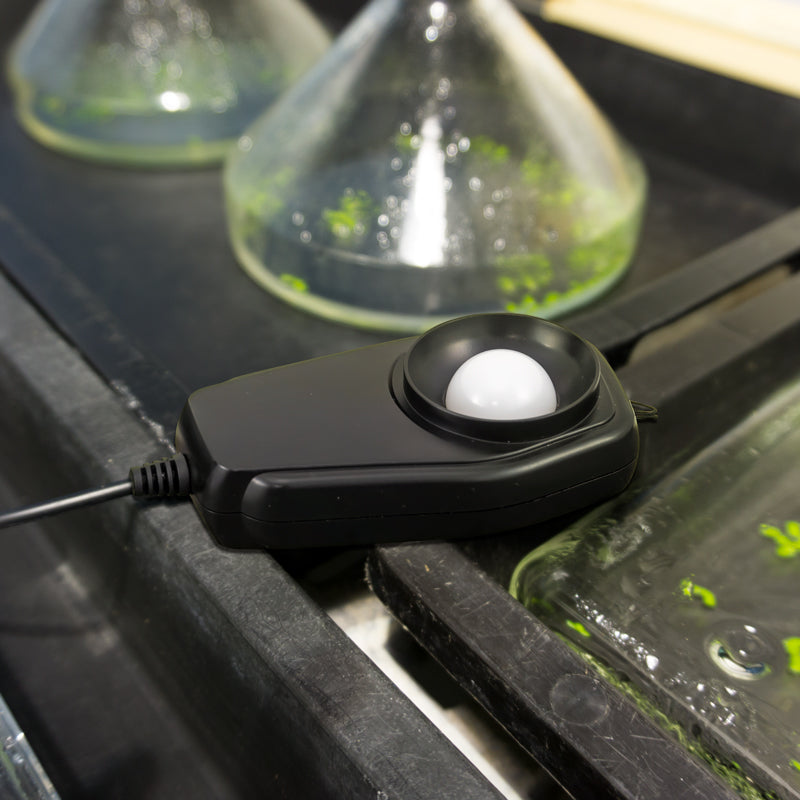

The PCE-LMD 10 is a photometer that measures illuminance from 0 to 400 kLux. Its external silicon photodiode probe has a spectral filter and can be placed to suit each task. Readings are shown in lux or footcandles, both as a value and on a scale. MIN and MAX show the lowest and highest readings, REL compares against a reference and PEAK captures peak values.
The meter stores 32,000 readings for later analysis on a PC. It also supports live PC measurement and CSV export. The built-in 3.7 V Li-ion battery charges at 5 V DC via micro-USB. Typical uses are lighting checks in greenhouses, production workshops and photo studios. An ISO calibration certificate is optional.
Highlights
- Rechargeable 3.7 V Li-ion battery
- Micro-USB interface for charging and PC data
- Measuring range 0 ... 400.0 kLux
- Lux and footcandle units
- Backlit LCD display
- Memory for 32,000 readings, CSV export
- MIN, MAX, REL and PEAK functions
- Optional ISO calibration certificate
Specifications
| Light | |
|---|---|
| Measuring range | 0 ... 999,9 lx |
| Resolution | 0,1 lx |
| Accuracy | ±5 % of Rd ±10 digits for standardised light A, ±10 % of Rd ±10 digits |
| Measuring range | 1000 ... 400000 lx |
| Resolution | 1 lx |
| Accuracy | ±5 % of Rd ±10 digits for standardised light A, ±10 % of Rd ±10 digits |
| Measuring range | 0 ... 99 fc |
| Resolution | 0,01 fc |
| Accuracy | ±5 % of Rd ±10 digits for standardised light A, ±10 % of Rd ±10 digits |
| Measuring range | 100 ... 999 fc |
| Resolution | 1 fc |
| Accuracy | ±5 % of Rd ±10 digits for standardised light A, ±10 % of Rd ±10 digits |
| Measuring range | 1000 ... 400000 fc |
| Resolution | 1 fc |
| Accuracy | ±5 % of Rd ±10 digits for standardised light A, ±10 % of Rd ±10 digits |
| General technical data | |
| Measuring functions | peak, MIN, MAX, HOLD |
| Units | lx, FC |
| Display type | LCD with backlight |
| Display size | 3 Inch |
| Display refresh rate | 4 x per second |
| Measuring rate | 4 Hz |
| Storage medium | Internal memory |
| Storage capacity | 32000 Data records |
| Storage interval from | 1 s |
| Storage interval to | 12 h |
| Interface | Micro-USB |
| Sensor | Silicon photodiode |
| Automatic power-off | 10 min |
| Repeatability | 2 % |
| Other dimensions | Sensor: 102 x 60 x 25 mm |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | 5V DC, 1 A |
| Rechargeable battery | 1 x 3,7 V internal , Lithium-ion polymer battery |
| Capacity | 2500 mAh |
| Operating conditions | -10 ... 50 °C , 0 ... 80 % RH |
| Storage conditions | -20 ... 50 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 162 x 88 x 32 mm |
| Weight | 320 g |
Package Contents
- 1×Photometer PCE-LMD 10
- 1×USB Cable
- 1×PC software
- 1×Service bag
- 1×Instruction Manual
Technical Documents 2
